SGCMW50 TI ZigBee communication module Test... - FCC ID PD5SGCM-W50
FCC ID PD5SGCM-W50
Test Set Up Photo.pdf
TI ZigBee communication module
Document preview loads when visible.
Document Details
| FCC ID | PD5SGCM-W50 |
|---|---|
| Document ID | 2459928 |
| Document Type | Test Setup Photos |

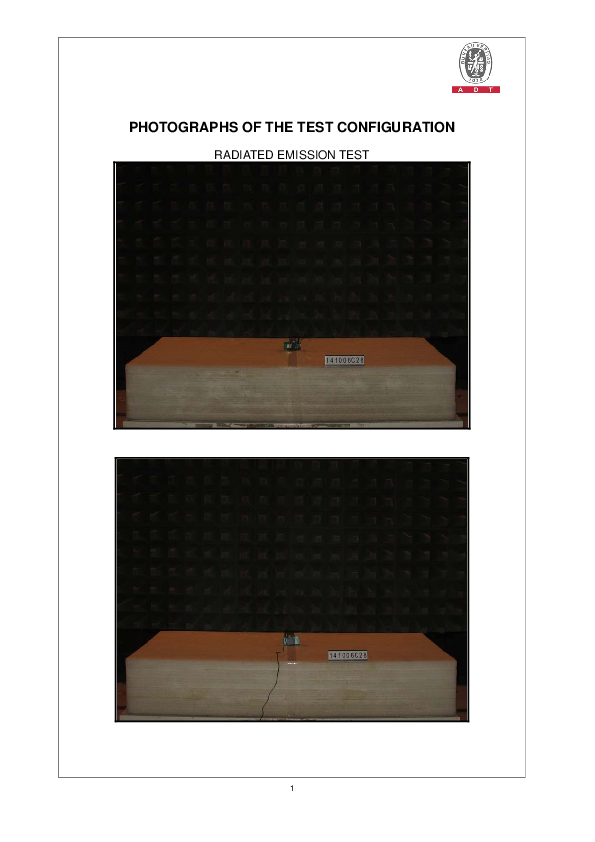

| Description | Test Set Up Photo.pdf |
| Document Title | RF141006C28 _TSup Photo_ |
| Applicant | Delta Electronics, Inc. |
| Equipment Class | TI ZigBee communication module |
| Product Code | SGCMW50 |
| Application ID | RALm35Nujyx1Ga/0wAH0tg== |
| Application Purpose | Original Equipment |
| Application Date | 2014-12-01 |
| Frequency Range | 2405-2475 MHz |
| FRN | 0029041993 |
| Test Firm | Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch |
| Certified By | Alex Shen |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2014-12-01 |
| Available | 2014-12-01 |
| Created | 2014-11-04 |
| Modified | 2014-11-04 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 52525 |
| File SHA-256 | 1640fb39eae6699dc5549698169d32c19f608eb54dac124c26376d5ae1c270e4 |
| PDF Metadata Author | pochien |
| PDF Metadata Producer | Acrobat Distiller 11.0 (Windows) pochien |
| FCC.gov Sources | FCC.gov 2459928 |
