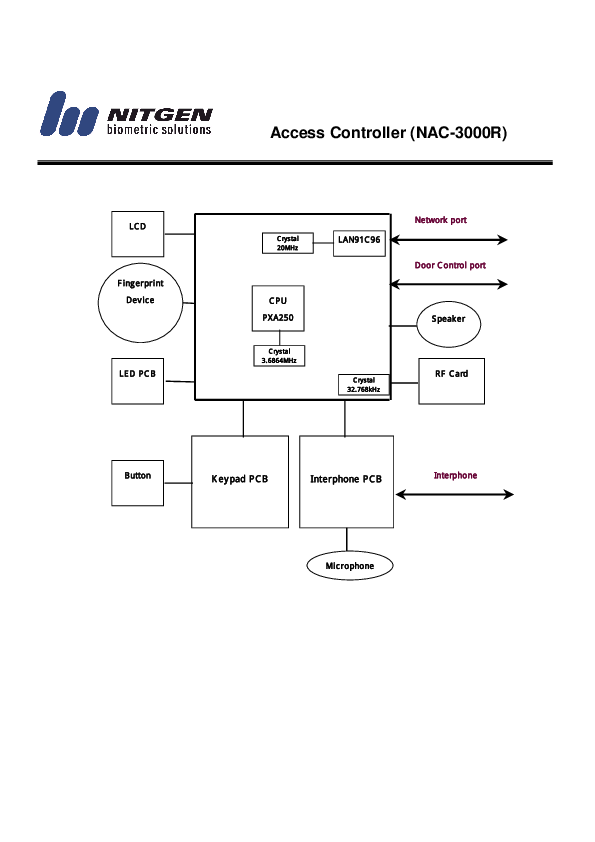

NAC3000R ACCESS CONTROLLER Block Diagram - FCC ID PEBNAC-3000R

FCC ID PEBNAC-3000R

BLOCK DIAGRAM

ACCESS CONTROLLER

by NITGen Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPEBNAC-3000R
Document ID337399
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
ApplicantNITGen Co., Ltd.
Equipment ClassACCESS CONTROLLER
Product CodeNAC3000R
Application IDt+HaqAJ+AEnw0jm0x4Eatg==
Application PurposeOriginal Equipment
Application Date2003-07-03
Frequency Range0.125 MHz
FRN0005810858
Test FirmSK Tech Co., Ltd.
Certified ByDRAGON MOON MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-07-03
Available2003-07-03
Created2003-06-27
Modified2003-06-27
Pages1
File TypeAdobe Acrobat PDF
File Size21982
File SHA-256ee5f326f4f89eaea3a18e23d223111d98691eafb5de12ae8cc15416dd366a1bb
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 337399
