FCC ID PEJ-XKJS7

700 MHz Data Transceiver

by Xetawave LLC

Grantee Code: PEJ   Product Code: XKJS7
Latest application date: 2015-12-15

Device Images

FCC ID PEJ-XKJS7 External Photos
External Photos
FCC ID PEJ-XKJS7 External Photos
External Photos
FCC ID PEJ-XKJS7 Internal Photos
Internal Photos

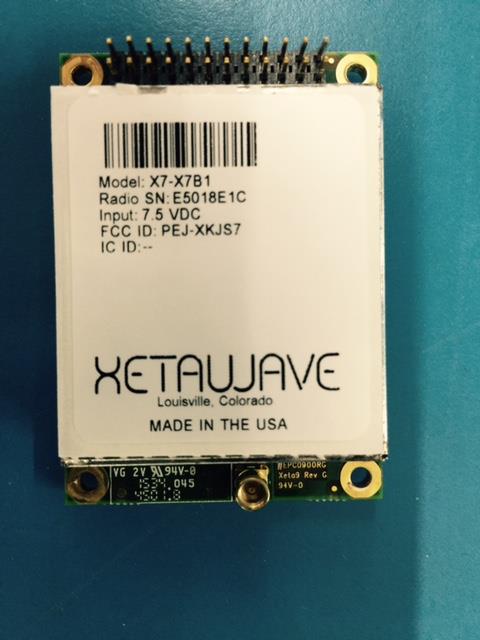

FCC ID PEJ-XKJS7 Users Manual
Users Manual

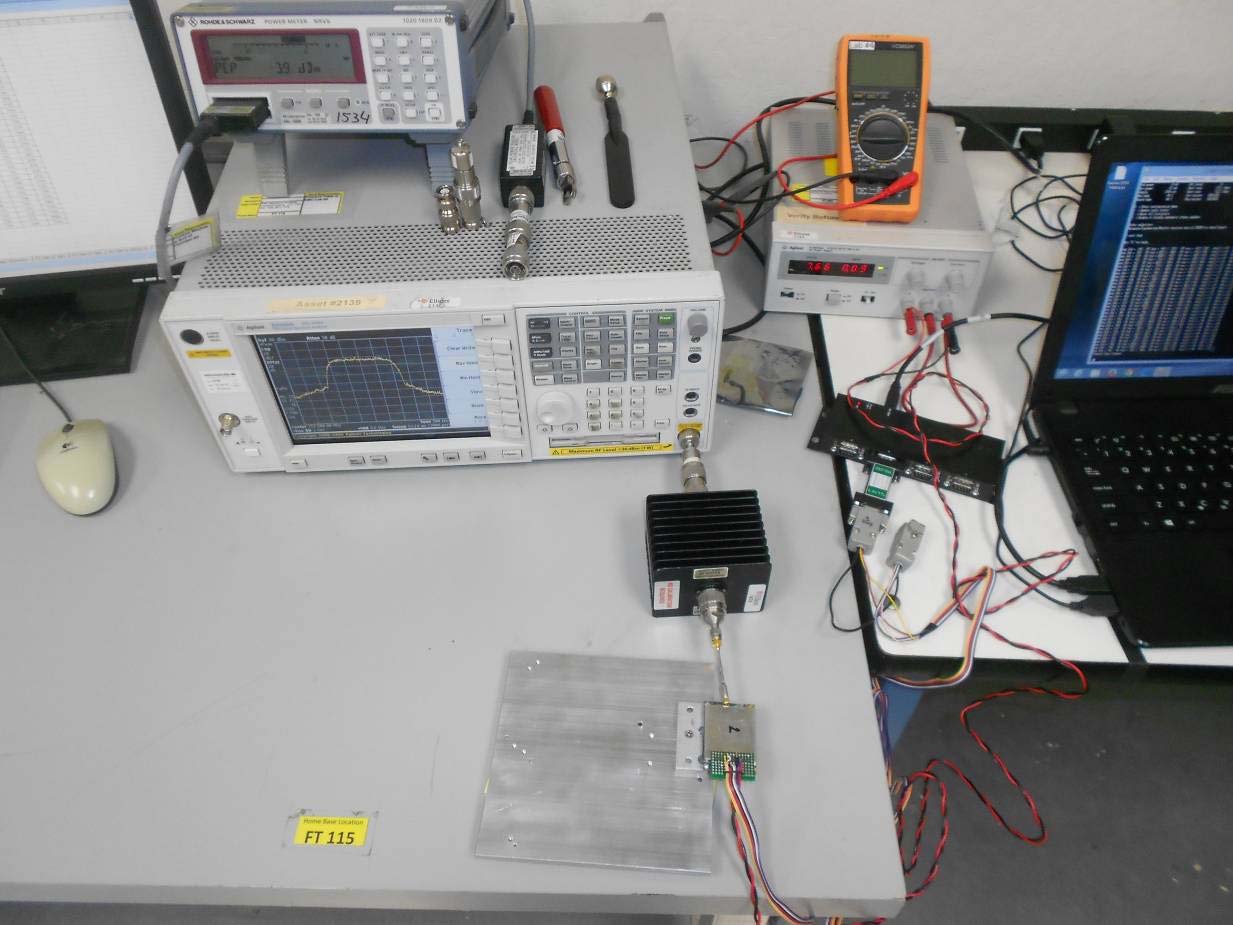

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

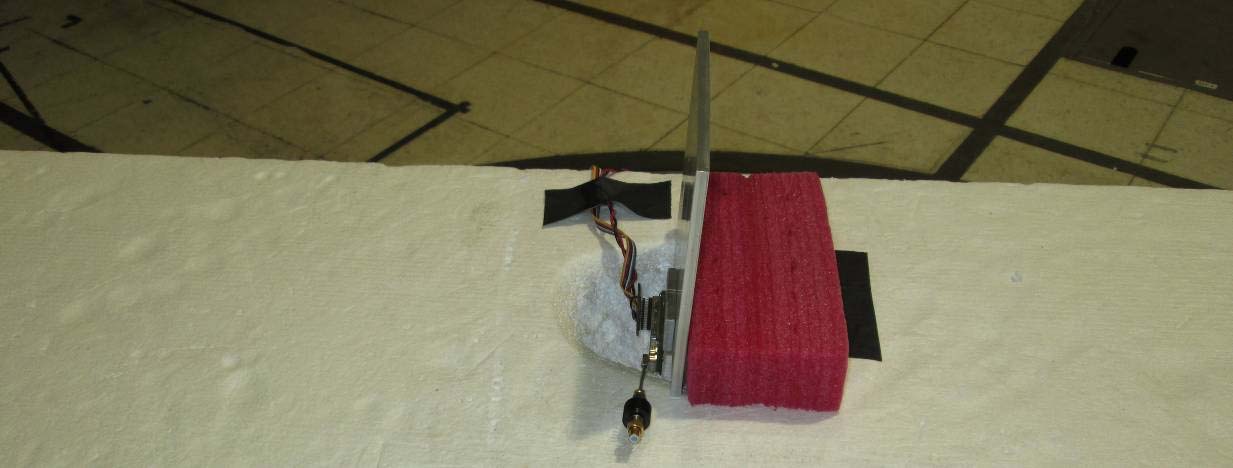

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

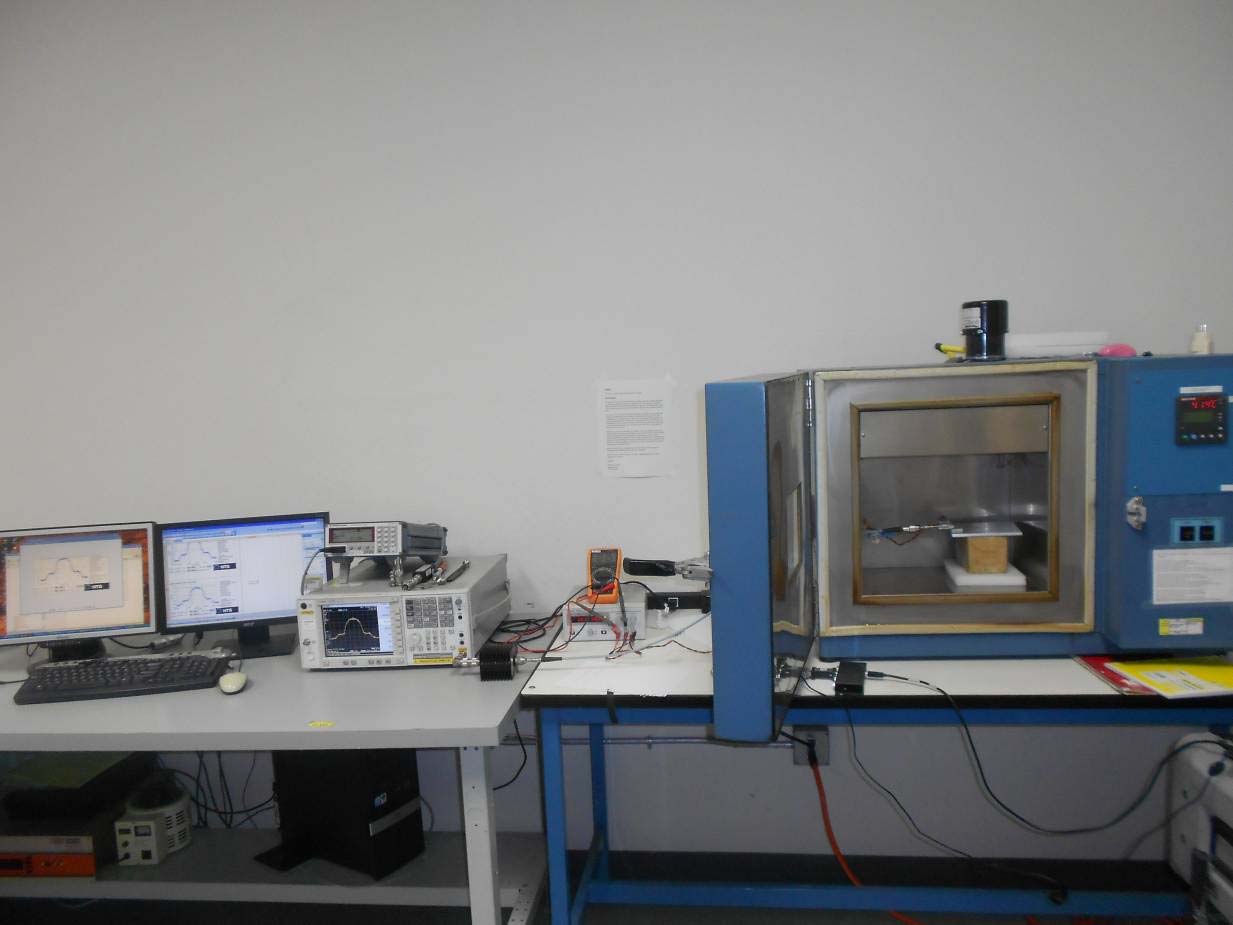

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

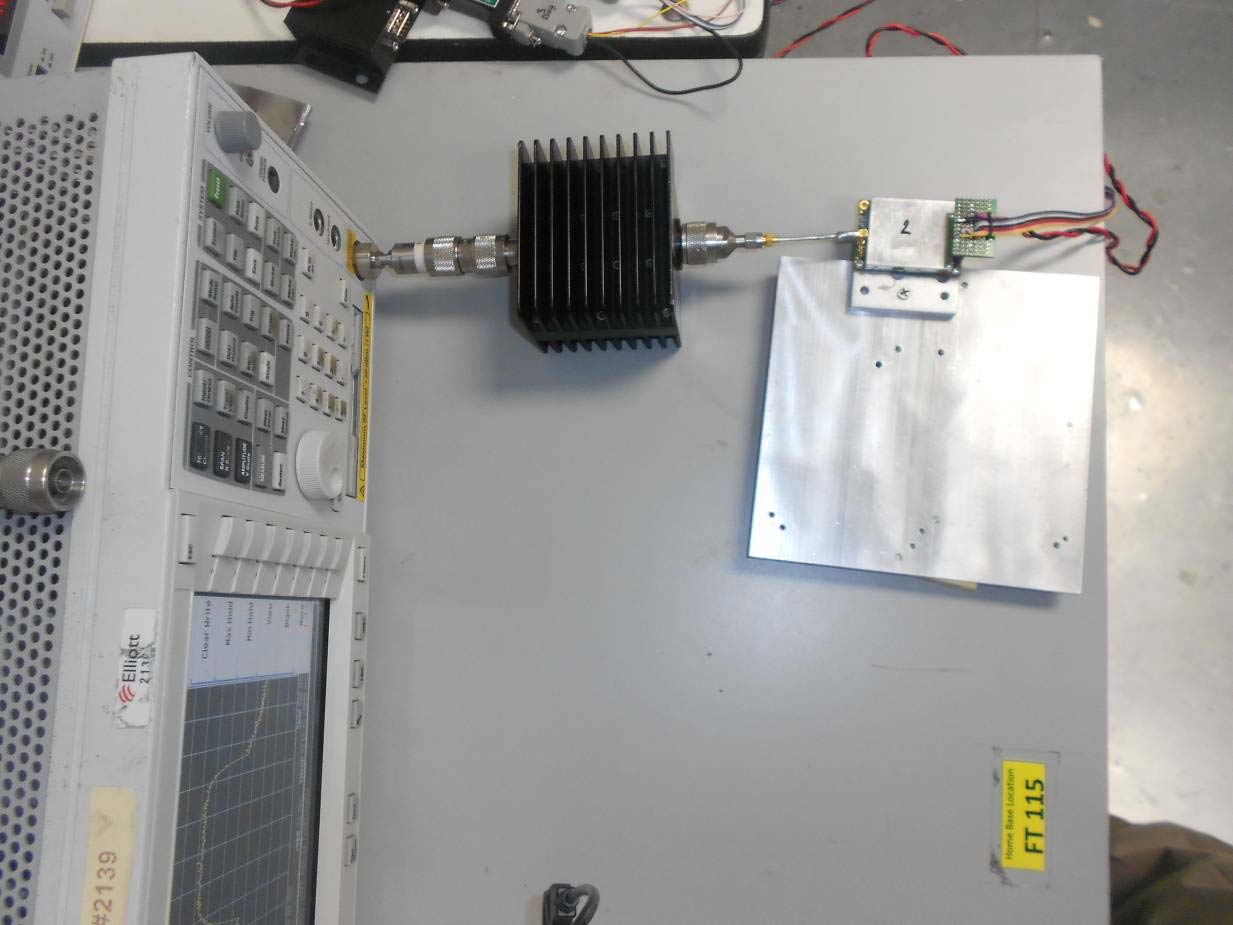

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

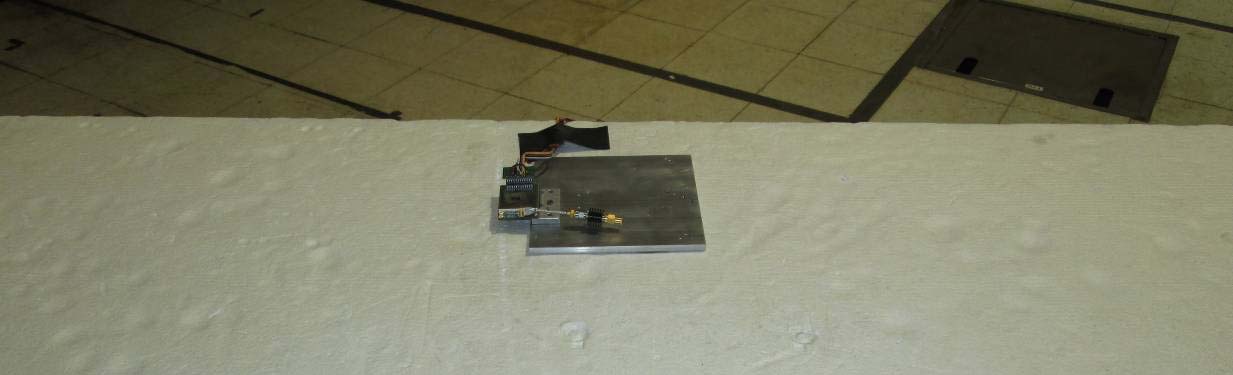

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

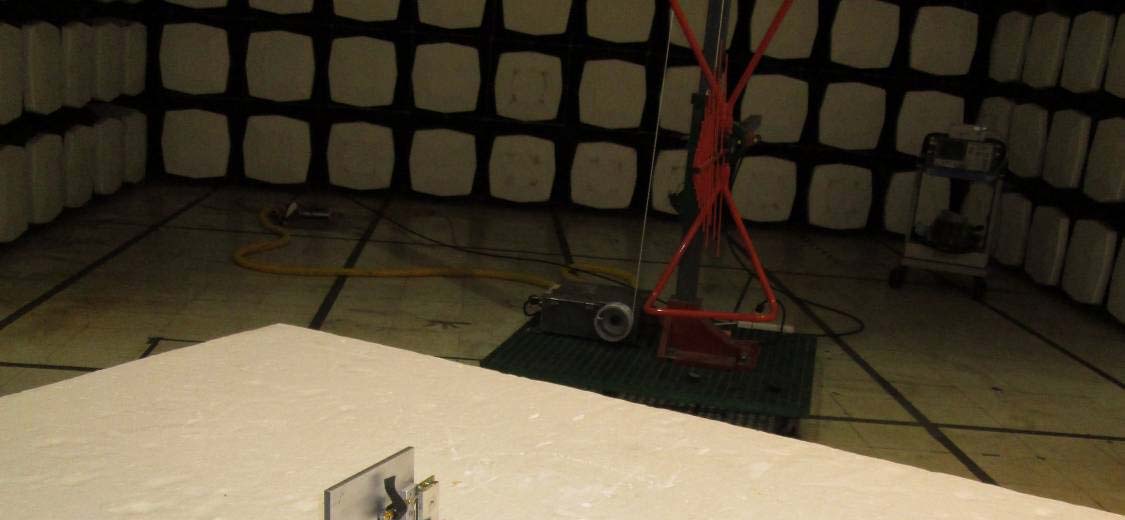

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

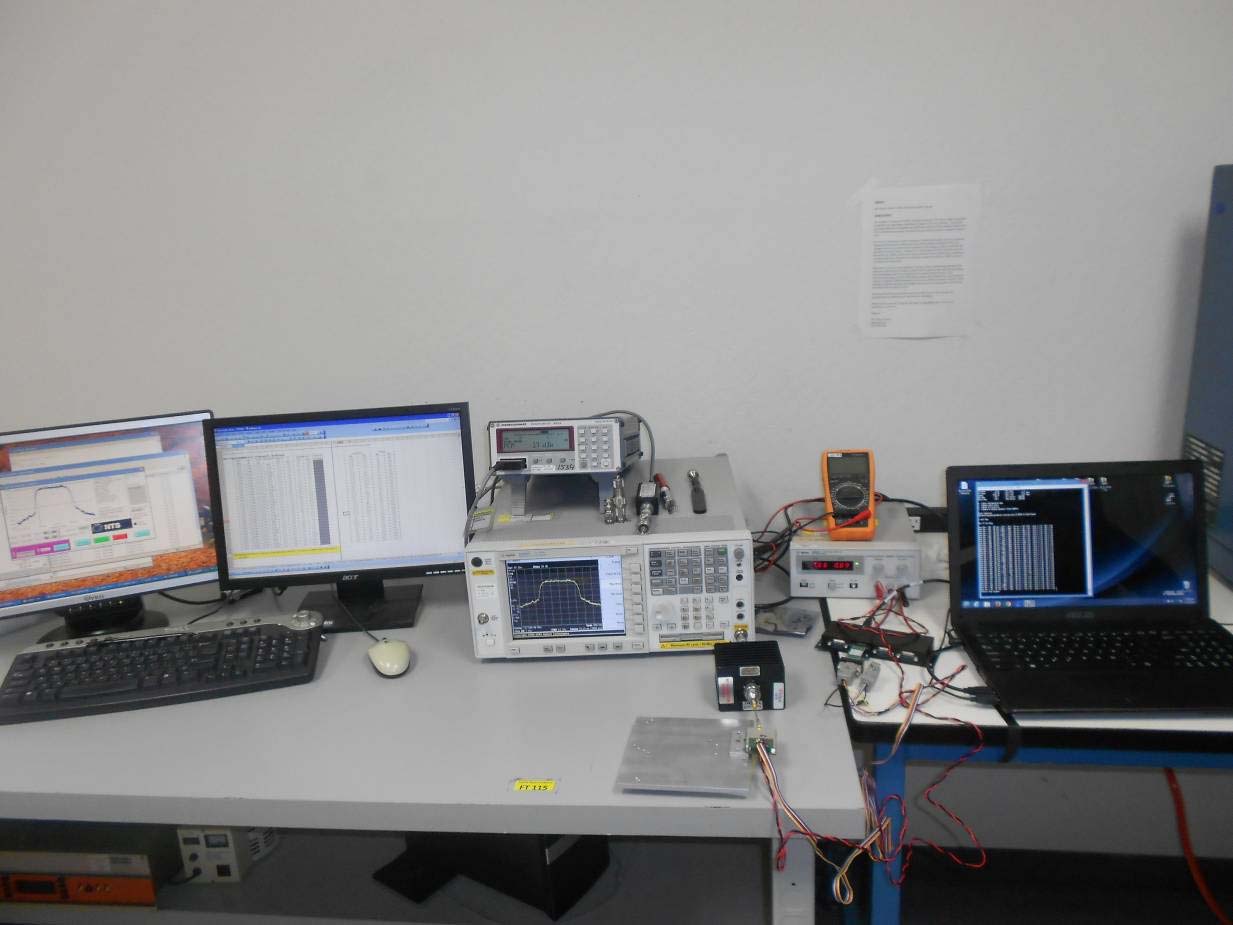

FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos
FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos
FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos
FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos
FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos
FCC ID PEJ-XKJS7 Test Setup Photos
Test Setup Photos

FCC ID Device Details

FCC IDPEJ-XKJS7
Mirrorsfcc.id | gov | fccid.ai
Grantee CodePEJ
Product CodeXKJS7
Applicant BusinessXetawave LLC 🇺🇸
Related Domains xetawave.com
Equipment Class700 MHz Data Transceiver
Test FirmNational Technical Systems

Operating Frequencies

Frequency RangeApplication PurposeFinal Action Date
757-758 MHzOriginal Equipment2015-12-15

Exhibits

DocumentTypeAvailableFile
Users ManualUsers Manual2015-12-15PDF 666.4 KB
Internal Photograph 1Internal Photos2015-12-15PDF 230.2 KB
Internal Photograph 2Internal Photos2015-12-15PDF 167.1 KB
Internal Photograph 3Internal Photos2015-12-15PDF 229.5 KB
External Photograph 1External Photos2015-12-15PDF 230.2 KB
External Photograph 2External Photos2015-12-15PDF 167.1 KB
Label InformationID Label/Location Info2015-12-15PDF 207.3 KB
Test PhotographsTest Setup Photos2015-12-15PDF 829.6 KB
Test ReportTest Report2015-12-15PDF 3.6 MB
Agent AuthorizationCover Letter(s)2015-12-15PDF 1,023.8 KB
Cover LetterCover Letter(s)2015-12-15PDF 27.1 KB
Modular ApprovalCover Letter(s)2015-12-15PDF 223.7 KB
Request for ConfidentialityCover Letter(s)2015-12-15PDF 450.8 KB
MPERF Exposure Info2015-12-15PDF 59.2 KB
Block Diagram Metadata onlyBlock DiagramPDF 215.5 KB
Schematics Metadata onlySchematicsPDF 231.5 KB
Operational Description Metadata onlyOperational DescriptionPDF 269.4 KB
BOM Metadata onlyParts List/Tune Up InfoPDF 401.3 KB
Tune Up Procedure Metadata onlyParts List/Tune Up InfoPDF 12.7 KB

Application Information

Application IDO5RJEpfJxD/+0FLKRWFVqg==
Final Action Date2015-12-15
Application PurposeOriginal Equipment
Applicant FRN0021979208
ModelXKJS7
Frequency Range757-758 MHz
Equipment ClassTNB - Licensed Non-Broadcast Station Transmitter
Device Description700 MHz Data Transceiver
Responsible PartyDAVID GREENE, Senior RF Engineer, david@xetawave.com , 3034472745
AgentDeniz Deniz Deniz, National Technical System, svdoc@nts.com , 5105783500
Technical ContactDeniz Demirci, National Technical Systems, svdoc@nts.com , 5105783500
Test FirmDavid Bare, National Technical Systems, david.bare@nts.com , 510-578-3500
TCB Emailsvtcb@nts.com
TCB ScopeB1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27
Short-Term ConfidentialityNo
Long-Term ConfidentialityYes
Grant DeferralNo
Modular EquipmentLimited Single Modular Approval
Composite DeviceNo
Composite PartNo
Cognitive RadioNo
Authorization WaiverNo
Authorization Waiver ApprovedNo
Section 5301 CertificationYes
Related OET Knowledge DataBase InquiryNo
Grant CommentsOutput power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307 (b)(3). End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must insure that the end user has no manual instructions to remove or install this module. Under no conditions may an antenna gain be used that would exceed the ERP limits as specified in Part 27. The Grantee is responsible for providing the documentation required for modular use.
