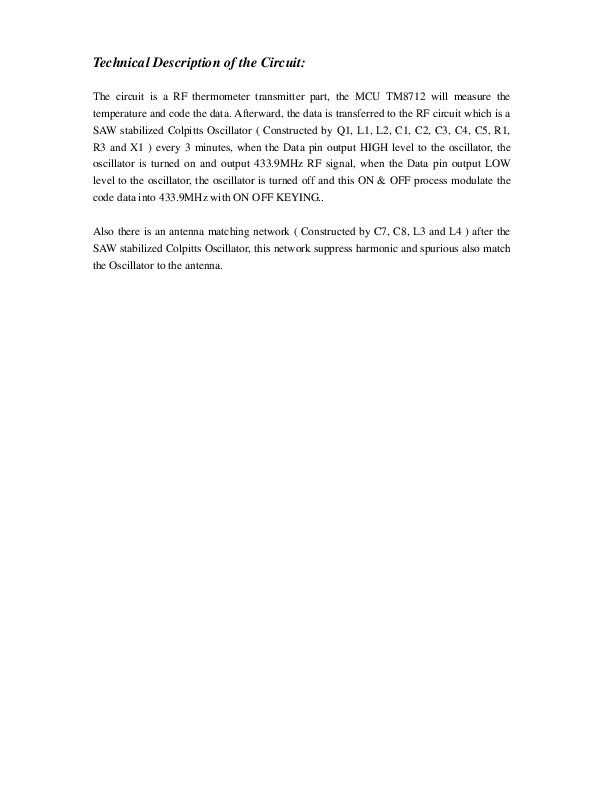

706640305 433MHz RF Transmitter... - FCC ID PEQ706640305

FCC ID PEQ706640305

Technical Description

433MHz RF Transmitter

by Electronics Tomorrow Ltd.

Document preview loads when visible.

Document Details

FCC IDPEQ706640305
Document ID580416
Document TypeOperational Description
DescriptionTechnical Description
Document Title7066 7063 block diagram
ApplicantElectronics Tomorrow Ltd.
Equipment Class433MHz RF Transmitter
Product Code706640305
Application ID8JlvqbzTN2T+DpUhqXZJQA==
Application PurposeOriginal Equipment
Application Date2005-09-10
Frequency Range433.9 MHz
FRN0018426122
Test FirmIntertek Testing Services Hong Kong
Certified ByDerek Leung Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2005-09-10
Available2005-09-10
Created2005-07-21
Modified2005-07-22
Pages1
File TypeAdobe Acrobat PDF
File Size10747
File SHA-25628d545cdc63b7e7e39e430f8d2fc51e4db6b0246a888e5c862b7ebcc0ed79e0c
PDF Metadata Authorcho
PDF Metadata ProducerAcrobat Distiller 7.0 (Windows) cho
FCC.gov SourcesFCC.gov 580416
