752290502 433MHz RF Receiver Schematics - FCC ID PEQ752290502
FCC ID PEQ752290502

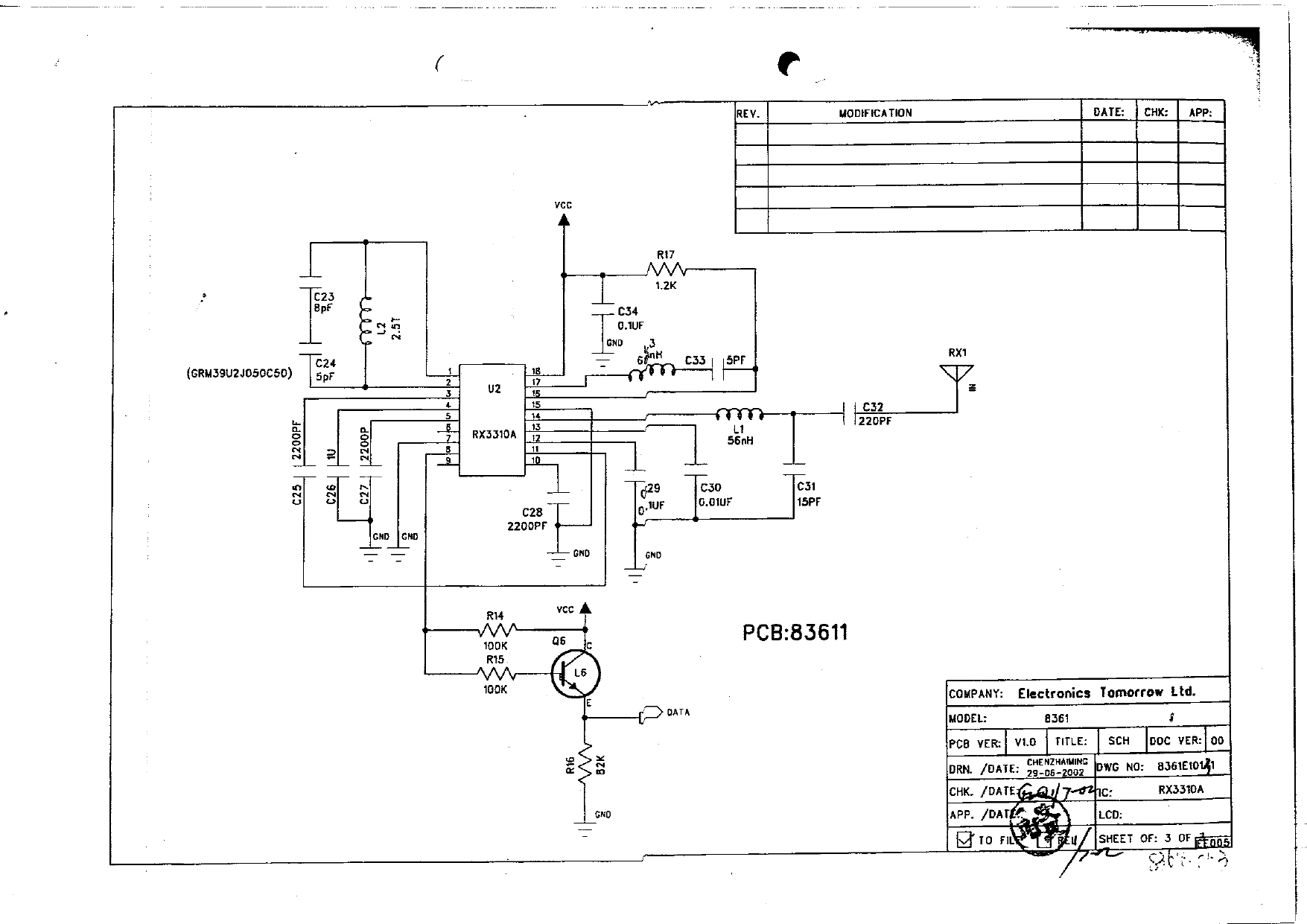

Circuit Diagram
433MHz RF Receiver
Document preview loads when visible.
Document Details
| FCC ID | PEQ752290502 |
|---|---|
| Document ID | 277442 |
| Document Type | Schematics |
| Description | Circuit Diagram |
| Applicant | Electronics Tomorrow Ltd. |
| Equipment Class | 433MHz RF Receiver |
| Product Code | 752290502 |
| Application ID | zNKMsbT2ZvqX8k0LhIueVg== |
| Application Purpose | Original Equipment |
| Application Date | 2002-10-17 |
| Frequency Range | 433.92 MHz |
| FRN | 0018426122 |
| Test Firm | Intertek Testing Services Hong Kong |
| Certified By | Tommy Leung Assistant Supervisor |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-10-17 |
| Available | 2002-10-17 |
| Created | 2019-01-08 |
| Modified | 2019-01-08 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 119728 |
| File SHA-256 | 0a68475cc20d56bde61644c31273a72e7fde4e91b5b4e96a98bafa3a0782d2ce |
| PDF Metadata Producer | GPL Ghostscript 9.25 |
| FCC.gov Sources | FCC.gov 277442 |
