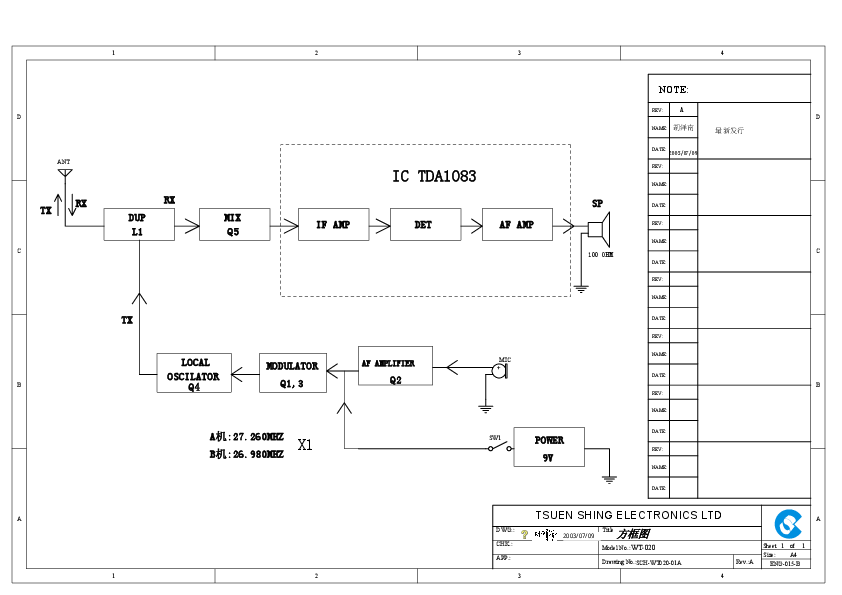

WT020 Headset Walkie Talkie Block Diagram - FCC ID PERWT020

FCC ID PERWT020

block diagram

Headset Walkie Talkie

by Tsuen Shing Enterprises Limited

Document preview loads when visible.

Document Details

FCC IDPERWT020
Document ID349600
Document TypeBlock Diagram
Descriptionblock diagram
Document TitleProtel Schematic
ApplicantTsuen Shing Enterprises Limited
Equipment ClassHeadset Walkie Talkie
Product CodeWT020
Application IDnNn9GUxsXXQXdSRspg07FQ==
Application PurposeOriginal Equipment
Application Date2003-08-20
Frequency Range26.98-27.26 MHz
FRN0017893611
Test FirmCMA Industrial Development Foundations Limited
Certified ByBeverly Lo Assistant Marketing Executive
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-08-20
Available2003-08-20
Created2003-08-08
Modified2003-08-08
Pages1
File TypeAdobe Acrobat PDF
File Size102609
File SHA-25620e3ebb74c8dffcb14c1e9375466758dd2a5e978c4e44a7dfbb83f3acb19829b
PDF Metadata Authorzce2
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) zce2
FCC.gov SourcesFCC.gov 349600
