  4. Block Diagram

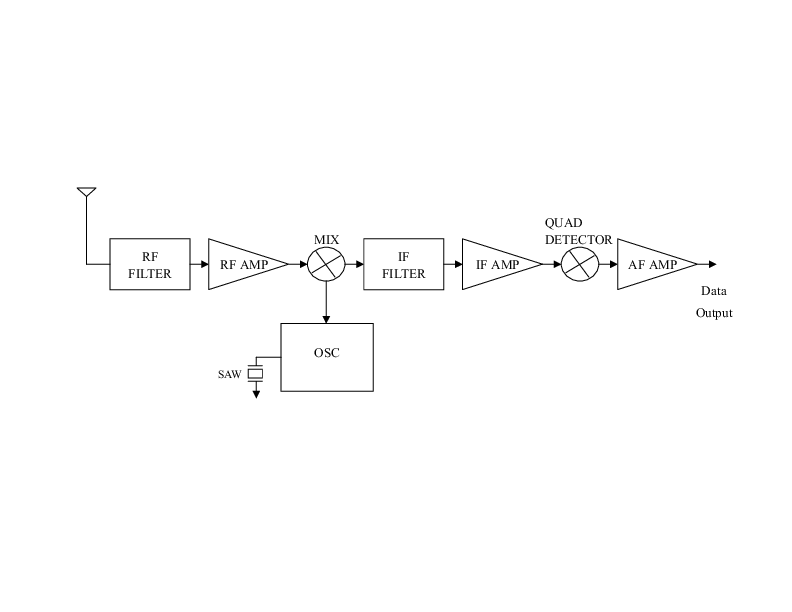

AC300R Auto Alarm System Receiver Block Diagram - FCC ID PEW-AC300-R

FCC ID PEW-AC300-R

Block Diagram

Auto Alarm System Receiver

by MOLTEN CORP.

Document preview loads when visible.

Document Details

FCC IDPEW-AC300-R
Document ID142284
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantMOLTEN CORP.
Equipment ClassAuto Alarm System Receiver
Product CodeAC300R
Application IDuXuG7vpSnHkEJZTlulZLNA==
Application PurposeOriginal Equipment
Application Date2001-03-29
Frequency Range434 MHz
FRN9999999999
Test FirmCompliance Engineering Services
Certified ByRick Yeo EMC Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2001-03-29
Available2001-03-29
Created2001-02-01
Modified2001-02-01
Pages1
File TypeAdobe Acrobat PDF
File Size9427
File SHA-256059d019e462b1ccae9b419be4a4b833ca0d090c7fc63decc381b7be18a74fb7f
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 142284
