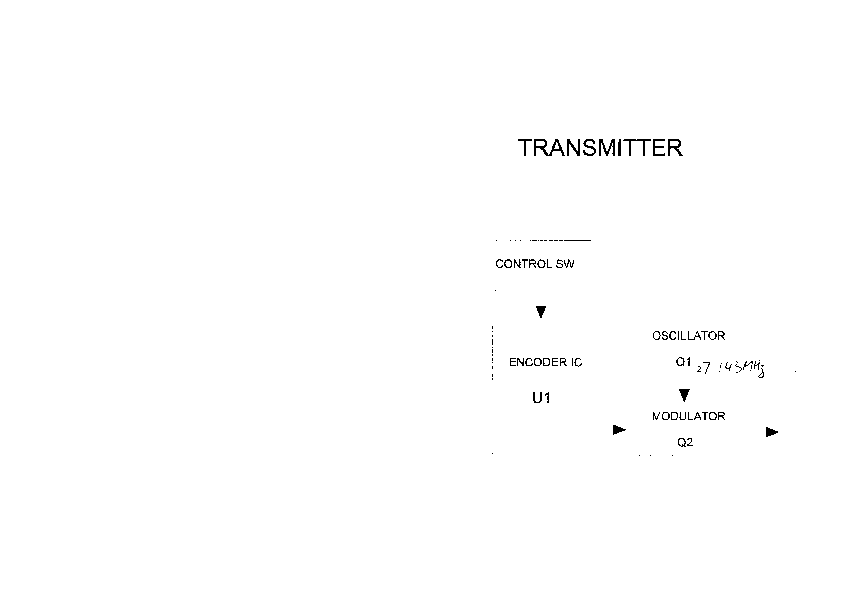

TW2208271300 RC Car Block Diagram - FCC ID PEXTW2208-27-1300

FCC ID PEXTW2208-27-1300

Block Diagram

RC Car

by Toys World Electronic Limited

Document preview loads when visible.

Document Details

FCC IDPEXTW2208-27-1300
Document ID310616
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantToys World Electronic Limited
Equipment ClassRC Car
Product CodeTW2208271300
Application IDQHFPhtYc5XEBVNO4Q/NTjA==
Application PurposeOriginal Equipment
Application Date2003-03-17
Frequency Range27.145 MHz
FRN0004074803
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-03-17
Available2003-03-17
Created2003-02-18
Modified2003-02-18
Pages1
File TypeAdobe Acrobat PDF
File Size17162
File SHA-256f29696f9190a809f4e299e55bb38f3996d0c0f328c1179011ca4197e032abe3a
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 310616
