07577R Remote Control Toy Car Schematics - FCC ID PF407577R

FCC ID PF407577R

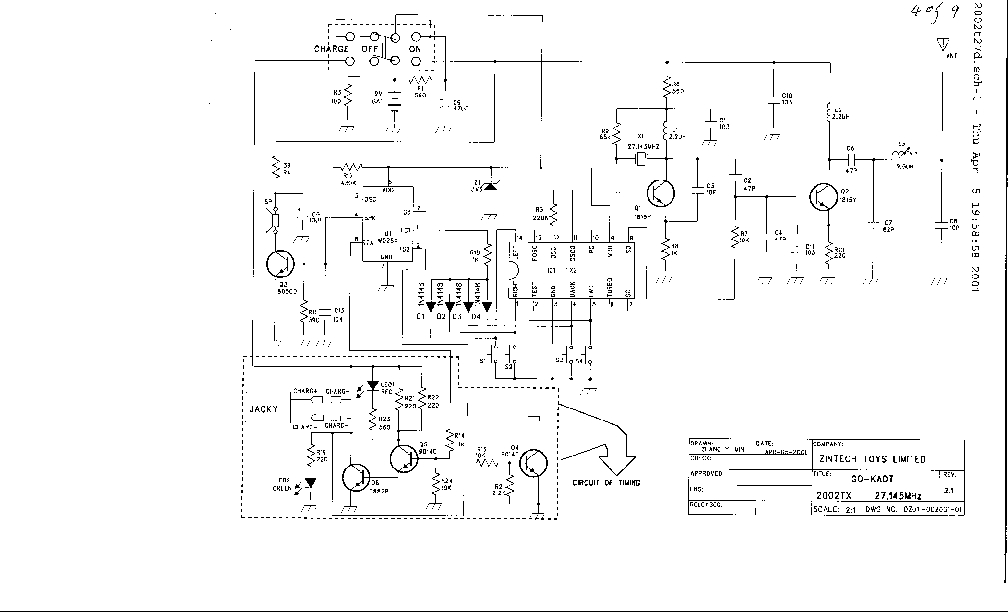

Circuit diagram

Remote Control Toy Car

by The Original San Francisco Toymaker

Document preview loads when visible.

Document Details

FCC IDPF407577R
Document ID155944
Document TypeSchematics
DescriptionCircuit diagram
ApplicantThe Original San Francisco Toymaker
Equipment ClassRemote Control Toy Car
Product Code07577R
Application IDTgd854I01ZSdgESDNYqL0w==
Application PurposeOriginal Equipment
Application Date2001-06-22
Frequency Range27.145 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-06-22
Available2001-06-22
Created2001-05-15
Modified2001-05-15
Pages1
File TypeAdobe Acrobat PDF
File Size30875
File SHA-256d29d6db8e5480651cab16352273f29f83e4d9d4a12a0dbdb40d02f285142c826
PDF Metadata ProducerAcrobat 4.0 Scan Plug-in for Windows Acrobat 4.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 155944
