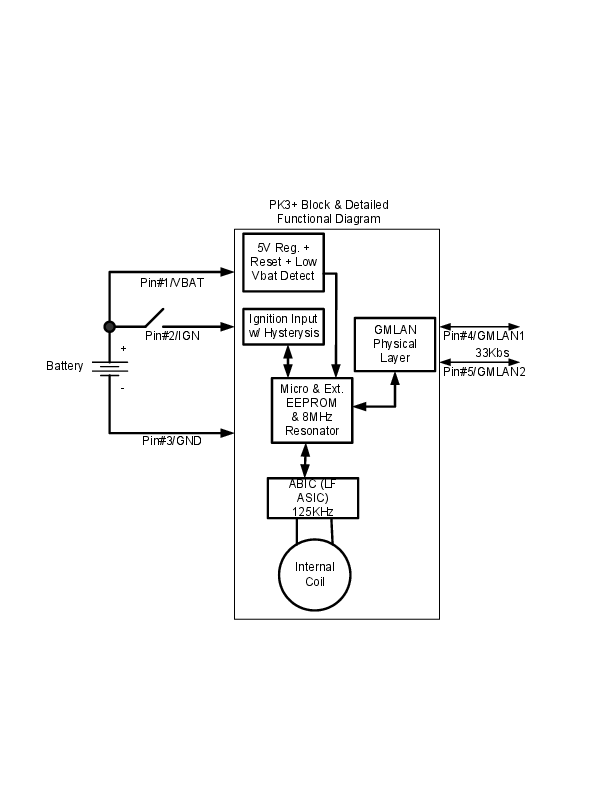

PK3R0 Passkey Immobilizer Block Diagram - FCC ID PFJPK3R0

FCC ID PFJPK3R0

Block Diagram Revised

Passkey Immobilizer

by Robert Bosch Corporation

Document preview loads when visible.

Document Details

FCC IDPFJPK3R0
Document ID490429
Document TypeBlock Diagram
DescriptionBlock Diagram Revised
Document TitlePK3+ Block Diagram_fcc
ApplicantRobert Bosch Corporation
Equipment ClassPasskey Immobilizer
Product CodePK3R0
Application IDS5cM2fmexp2gIh8dw+WNlA==
Application PurposeOriginal Equipment
Application Date2004-11-22
Frequency Range0.125 MHz
FRN0017210725
Test FirmUniversity of Michigan
Certified ByValdis V. Liepa Research Scientist
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-11-22
Available2004-11-22
Created2004-11-16
Modified2004-11-16
Pages1
File TypeAdobe Acrobat PDF
File Size44225
File SHA-2566458ff0532622ddb995780850c003a9b06b86e2e5f118bfee0234f11e596dd67
PDF Metadata Authorjbrunett
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) jbrunett
FCC.gov SourcesFCC.gov 490429
