FCC ID PH3DJ-AXD1
VHF DIGITAL TRANSCEIVER
by Alinco Incorporated, Electronics Division
Grantee Code: PH3 Product Code: DJAXD1
Latest application date: 2017-04-04
Device Images
FCC ID Device Details
| FCC ID | PH3DJ-AXD1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PH3 |
| Product Code | DJAXD1 |
| Applicant Business | Alinco Incorporated, Electronics Division 🇯🇵 |
| Related Domains |  alinco.co.jp |
| Equipment Class | VHF DIGITAL TRANSCEIVER |
| Test Firm | Most Technology Service Co., Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 136-174 MHz | Original Equipment | 2017-04-04 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

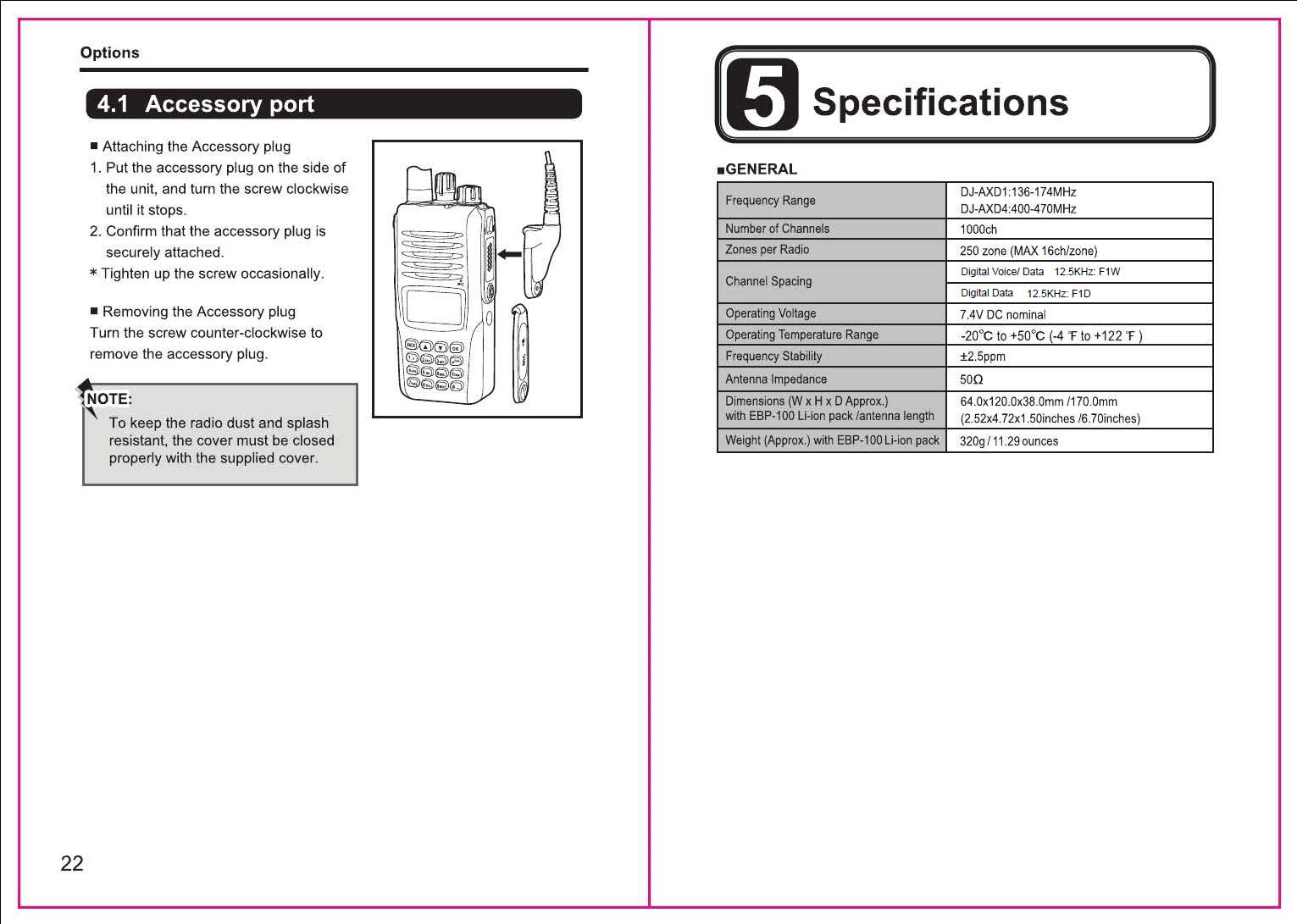

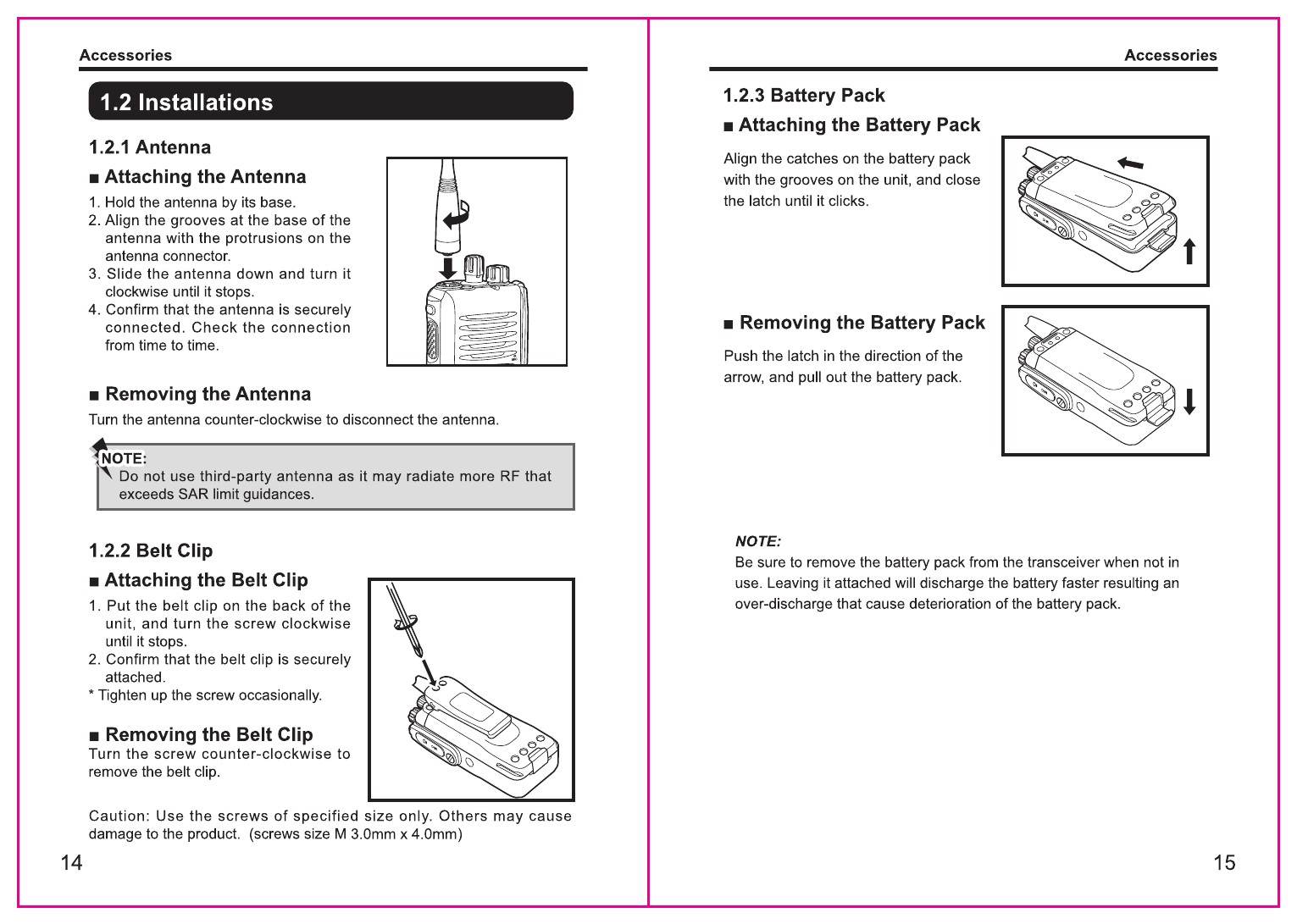

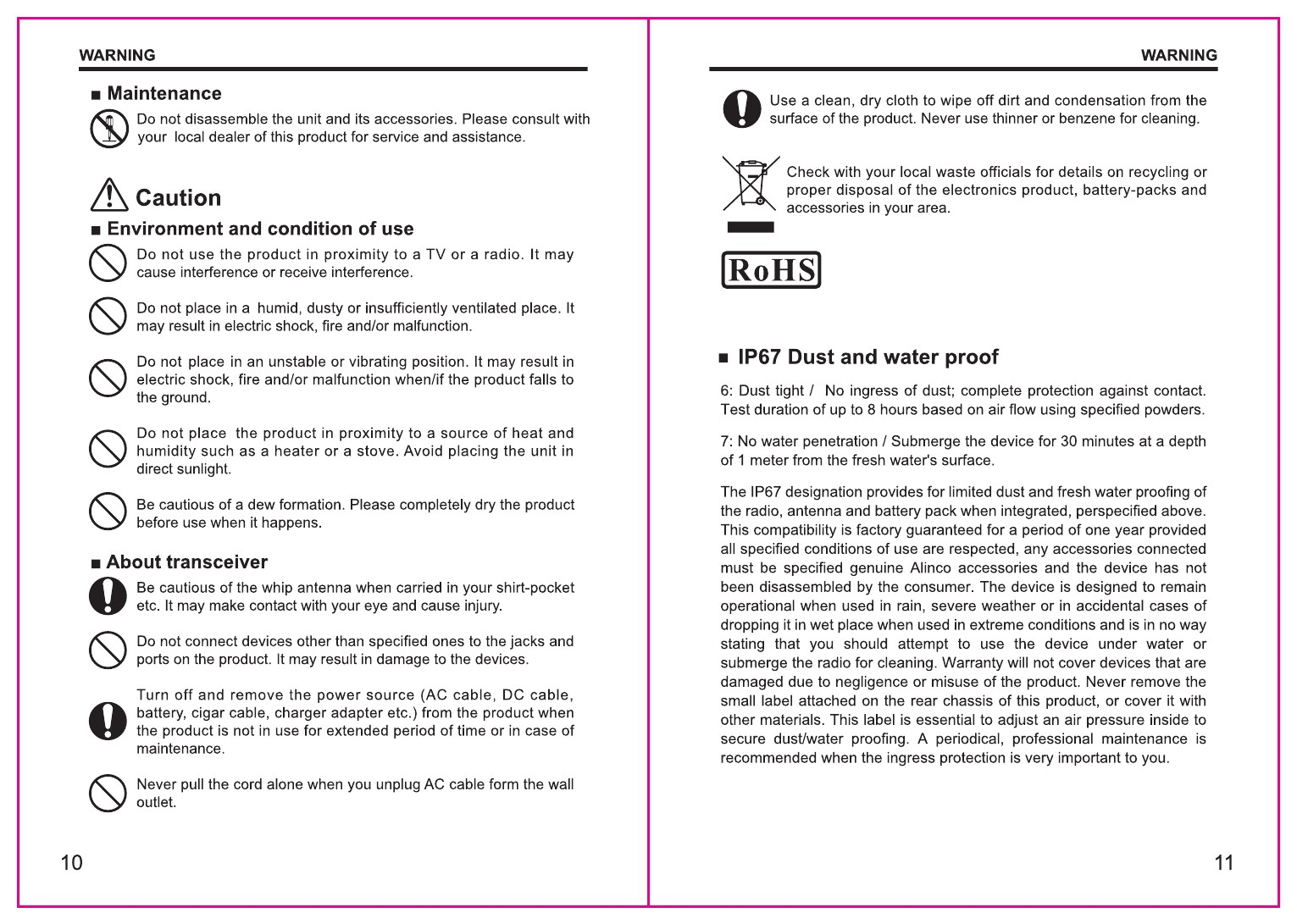

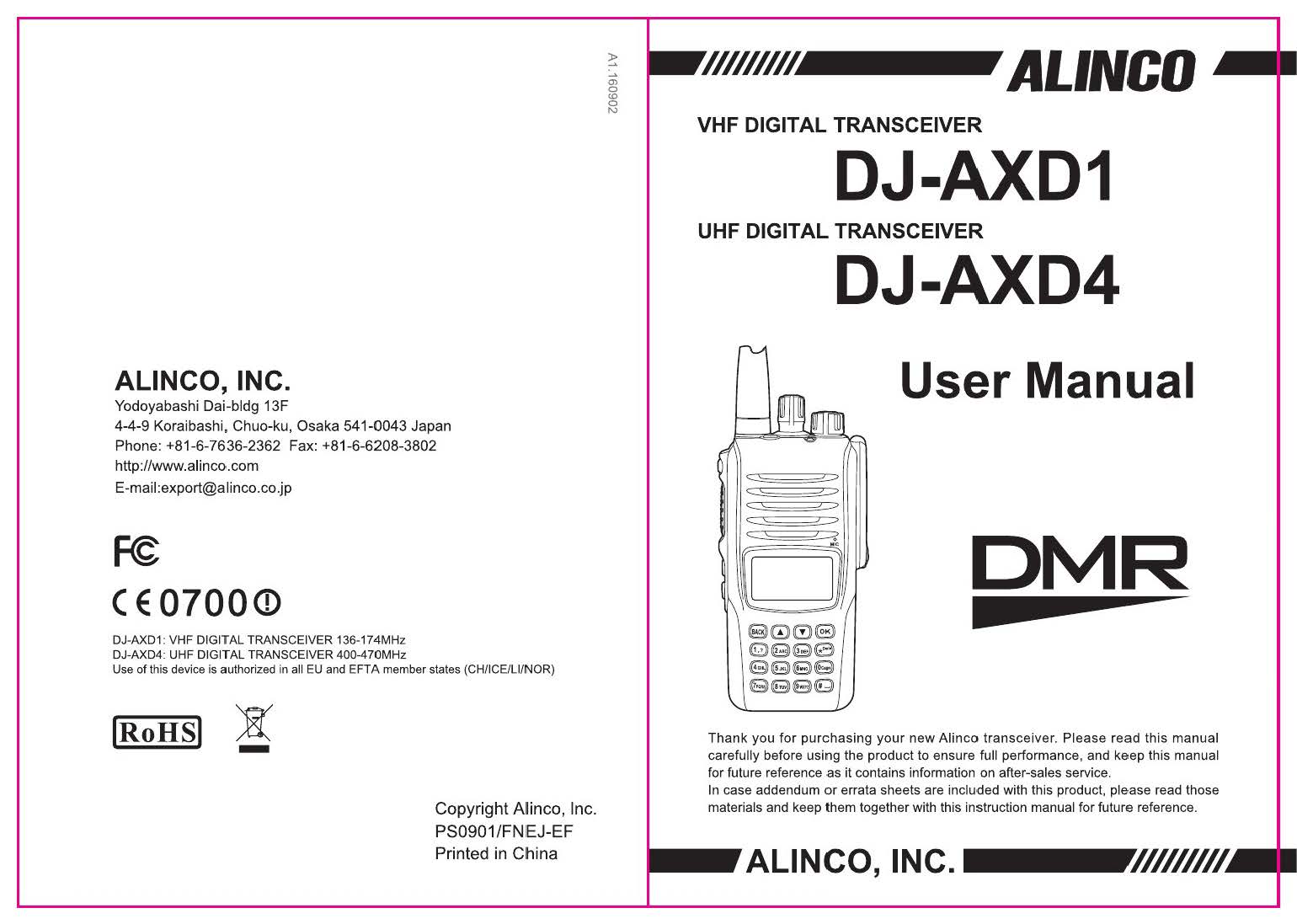

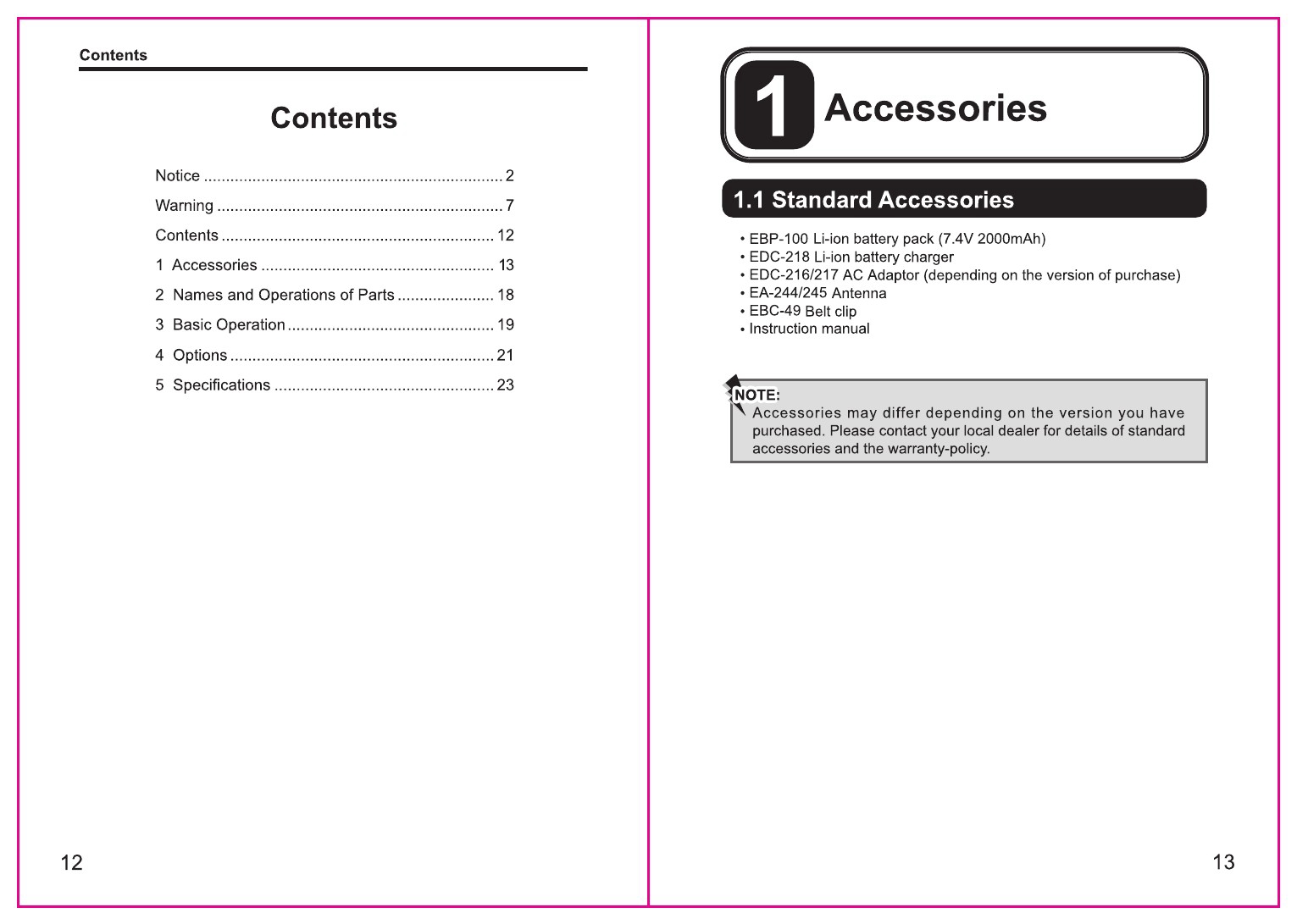

| User manual | Users Manual | 2017-04-04 | PDF 5.3 MB |
| Internal Photo | Internal Photos | 2017-04-04 | PDF 165.7 KB |
| External Photos | External Photos | 2017-04-04 | PDF 112.9 KB |
| Label | ID Label/Location Info | 2017-04-04 | PDF 79.8 KB |
| label location | ID Label/Location Info | 2017-04-04 | PDF 96.4 KB |
| Test Setup Photo | Test Setup Photos | 2017-04-04 | PDF 109.4 KB |
| Test Report | Test Report | 2017-04-04 | PDF 1.1 MB |
| Frequency Attestation Letter | Attestation Statements | 2017-04-04 | PDF 44 KB |
| Agent Authorization Letter | Cover Letter(s) | 2017-04-04 | PDF 34.4 KB |
| Long Term Confidentiality Request Letter-rev2 | Cover Letter(s) | 2017-04-04 | PDF 45.5 KB |
| SAR Report | RF Exposure Info | 2017-04-04 | PDF 4.9 MB |
| Block diagram Metadata only | Block Diagram | PDF 97 KB | |
| SCH Metadata only | Schematics | PDF 241.3 KB | |
| Circuit description Metadata only | Operational Description | PDF 44.9 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 48.7 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 7 KB |
Application Information
| Application ID | 6FVnNhC0n2d6F0XfSyYYuQ== |
|---|---|
| Final Action Date | 2017-04-04 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022821441 |
| Model | DJ-AXD1 |
| Frequency Range | 136-174 MHz |
| Equipment Class | TNF - Licensed Non-Broadcast Transmitter Held to Face |
| Device Description | VHF DIGITAL TRANSCEIVER |
| Responsible Party | Kazuhiro Kusuhara, General Manager, Production, Electronics Div., kusuhara@alinco.co.jp , 06-7636-2360 |
| Technical Contact | Mark Wen, Most Technology Service Co.,Ltd., szmost@szmost.com  , 86-755-86170306 |
| Test Firm | Mark Wen, Most Technology Service Co., Ltd., szmost@szmost.com , 86-755-86170306 |
| TCB Email | tcbinfo@metlabs.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power output listed is conducted. Output is at the antenna terminal of the device. This transmitter has been tested for SAR compliance in Push-to-Talk and Body-Worn operating configurations with specific antennas, and only satisfies SAR limit for Occupational/Controlled RF Exposure Environment. Device must operate at a duty factor not exceeding 50% and SAR compliance for body-worn operating configurations is limited to those described in this filing. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational /Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. The highest reported head and body-worn accessory SAR values at 50% duty factor are 1.28 W/kg and 3.69 W/kg, respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 6FVnNhC0n2d6F0XfSyYYuQ== | 2017-04-04 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application 6FVnNhC0n2d6F0XfSyYYuQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Eurofins Electrical and Electronic Testing NA, Inc 914 W. Patapsco Avenue Baltimore, MD 21230-3432 |
Date of Grant: 04/04/2017 Application Dated: 04/04/2017 |
| Alinco Incorporated, Electronics Division |
| Yodoyabashi Dai Building 13F |
| 4-4-9 Koraibashi, Chuo-ku |
| Osaka, 541-0043 Japan |
| Attention: Kazuhiro Kusuhara , General Manager, Production, Electronics Div. |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PH3DJ-AXD1 |
| Name of Grantee: | Alinco Incorporated, Electronics Division |
| Equipment Class: | Licensed Non-Broadcast Transmitter Held to Face |
| Notes: | VHF DIGITAL TRANSCEIVER |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BD EF | 90 | 136.0 - 174.0 | 5.0 | 0.65 PM | 12K5F1W |
| BD EF | 90 | 136.0 - 174.0 | 5.0 | 0.65 PM | 12K5F1D |
| Power output listed is conducted. Output is at the antenna terminal of the device. This transmitter has been tested for SAR compliance in Push-to-Talk and Body-Worn operating configurations with specific antennas, and only satisfies SAR limit for Occupational/Controlled RF Exposure Environment. Device must operate at a duty factor not exceeding 50% and SAR compliance for body-worn operating configurations is limited to those described in this filing. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational /Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting Occupational Exposure Requirements and users must be provided with the training information. The highest reported head and body-worn accessory SAR values at 50% duty factor are 1.28 W/kg and 3.69 W/kg, respectively. |
| BD: | The output power is continuously variable from the value listed in this entry to 10%-15% of the value listed. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
