FCC ID PIDH1KD25F
Base station of LTE fixed cellular system
by Airspan Networks Inc
Grantee Code: PID Product Code: H1KD25F
Latest application date: 2016-06-23
Device Images
FCC ID Device Details
| FCC ID | PIDH1KD25F |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PID |
| Product Code | H1KD25F |
| Applicant Business | Airspan Networks Inc 🇺🇸 |
| Related Domains |  airspan.com |
| Equipment Class | Base station of LTE fixed cellular system |
| Test Firm | Hermon Laboratories Ltd. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2498.5-2687.5 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-23 |
| 2498.5-2687.5 MHz | Original Equipment | 2016-02-03 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-07-31 | PDF 1.3 MB |
| Internal photo | Internal Photos | 2016-07-31 | PDF 1.6 MB |
| External photo | External Photos | 2016-02-03 | PDF 970.1 KB |
| ID label/Location info | ID Label/Location Info | 2016-02-03 | PDF 458 KB |

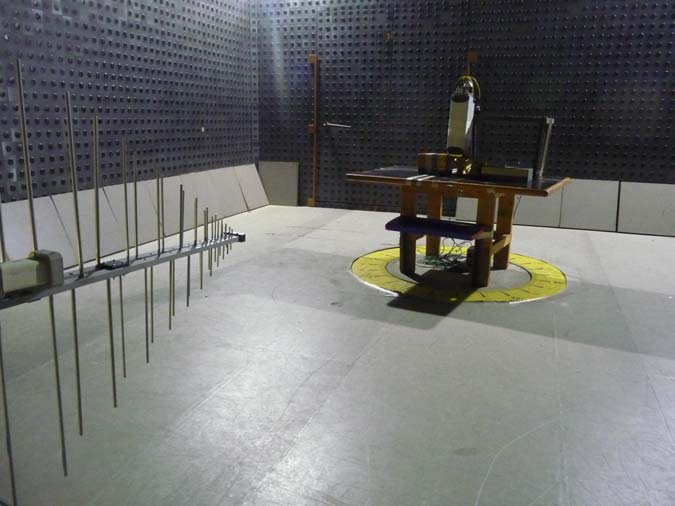

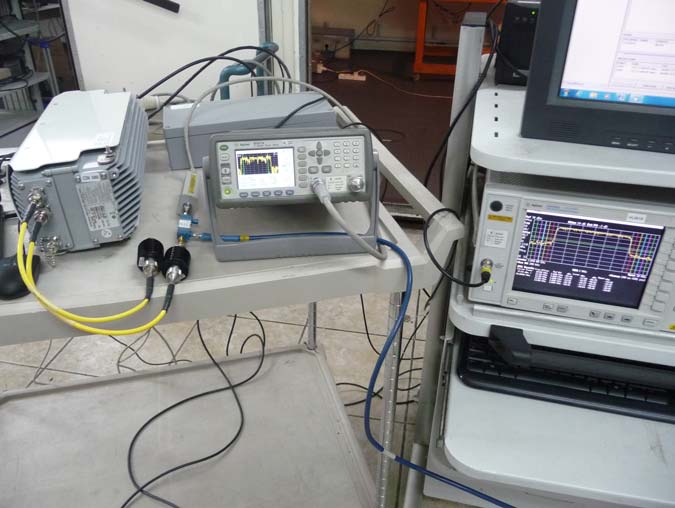

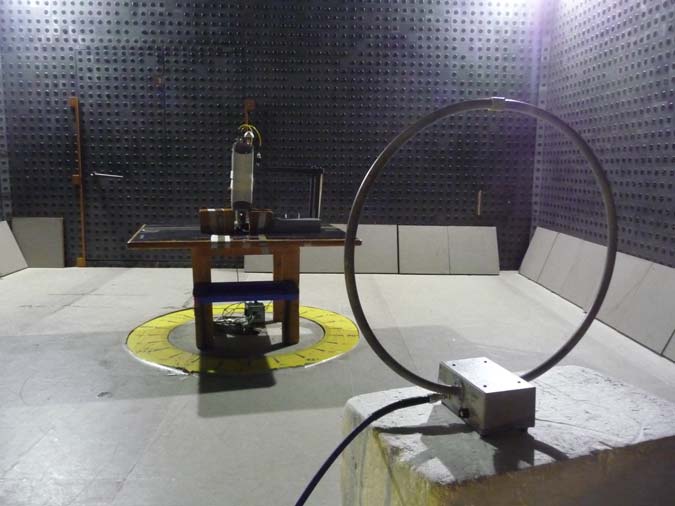

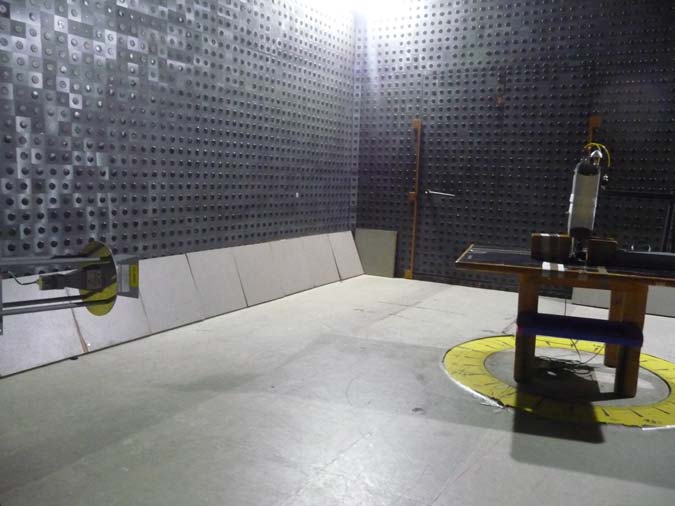

| Test set up photos | Test Setup Photos | 2016-06-23 | PDF 101.9 KB |
| Test setup photo | Test Setup Photos | 2016-02-03 | PDF 279.6 KB |
| Test Report | Test Report | 2016-06-23 | PDF 444.8 KB |
| Test Report | Test Report | 2016-02-03 | PDF 1.8 MB |
| Authorization_letter_to_FCC | Cover Letter(s) | 2016-06-23 | PDF 995.3 KB |
| Cover_letter | Cover Letter(s) | 2016-06-23 | PDF 16 KB |
| Declaration_of_authorization | Cover Letter(s) | 2016-06-23 | PDF 13.8 KB |
| Authorization_letter | Cover Letter(s) | 2016-02-03 | PDF 995.3 KB |
| DC_voltage_current | Cover Letter(s) | 2016-02-03 | PDF 15.6 KB |
| Request_confidentiality | Cover Letter(s) | 2016-02-03 | PDF 19.6 KB |
| RF Exposure | RF Exposure Info | 2016-02-03 | PDF 12.6 KB |
| Tune up procedure | Parts List/Tune Up Info | 2016-02-03 | PDF 16.3 KB |
| Schematics Metadata only | Schematics | PDF 1.6 MB | |
| Schematics_FEM Metadata only | Schematics | PDF 315.7 KB | |
| Operational description Metadata only | Operational Description | PDF 42.6 KB | |
| Operational description_revised0203 Metadata only | Operational Description | PDF 43 KB | |
| Parts list (BOM) Metadata only | Parts List/Tune Up Info | PDF 334.1 KB |
Application Information
| Application ID | 8St3M9ftKSRych4G97QVWg== |
|---|---|
| Final Action Date | 2016-06-23 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0009320326 |
| Model | H1KD25F |
| Frequency Range | 2498.5-2687.5 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Base station of LTE fixed cellular system |
| Responsible Party | Grant Pottash, Technical Services Director, zlevi@airspan.com , +1-561-443-1009 |
| Technical Contact | Michael Nikishin, Hermon Laboratories Ltd., nikishin@hermonlabs.com  , 97246268840 |
| Non-Technical Contact | Zion Levi, Airspan Networks Inc, zlevi@airspan.com , +1 561 893 8686 |
| Test Firm | Alexander Usoskin, Hermon Laboratories Ltd., mail@hermonlabs.com , 972-4628-8001 |
| TCB Email | certification@telefication.com  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class 2 Permissive Change : Only firmware setting has been changed to add 40 MHz channel bandwidth modes. Power listed is conducted total peak power at antenna terminals. Professional installation is required. The antenna(s) used for this transmitter must be fixed mounted on permanent structures and must provide at least 2.5 meters separation to all persons based on the use of a 18dBi gain antenna. The use of higher gain antennas may require larger separation distances and may require RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 8St3M9ftKSRych4G97QVWg== | 2016-06-23 | Class II permissive change or modification of presently authorized equipment |
| kC3fKHXmbXtrOWp30UmAPA== | 2016-02-03 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application kC3fKHXmbXtrOWp30UmAPA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 02/03/2016 Application Dated: 02/02/2016 |
| Airspan Networks Inc |
| 777 Yamato Rd |
| Suite 310 |
| Boca Raton, FL 33431 |
| Attention: Grant Pottash , Technical Services Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PIDH1KD25F |
| Name of Grantee: | Airspan Networks Inc |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Base station of LTE fixed cellular system |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2498.5 - 2687.5 | 10.74 | 150.0 Hz | 4M76D7D |
| MO | 27 | 2501.0 - 2685.0 | 10.62 | 150.0 Hz | 9M48D7D |
| MO | 27 | 2506.0 - 2680.0 | 10.5 | 150.0 Hz | 18M7D7D |
| Power listed is conducted total peak power at antenna terminals. Professional installation is required. The antenna(s) used for this transmitter must be fixed mounted on permanent structures and must provide at least 2.5 meters separation to all persons based on the use of a 18dBi gain antenna. The use of higher gain antennas may require larger separation distances and may require RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application kC3fKHXmbXtrOWp30UmAPA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Airspan Networks Inc 777 Yamato Rd Suite 310 Boca Raton, FL 33431 United States |
Date of Grant: 02/03/2016 Application Dated: 02/02/2016 |
| Attention: Grant Pottash , Technical Services Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PIDH1KD25F |
| Name of Grantee: | Airspan Networks Inc |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Base station of LTE fixed cellular system |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2498.5 - 2687.5 | 10.74 | 150.0 Hz | 4M76D7D |
| MO | 27 | 2501.0 - 2685.0 | 10.62 | 150.0 Hz | 9M48D7D |
| MO | 27 | 2506.0 - 2680.0 | 10.5 | 150.0 Hz | 18M7D7D |
| Power listed is conducted total peak power at antenna terminals. Professional installation is required. The antenna(s) used for this transmitter must be fixed mounted on permanent structures and must provide at least 2.5 meters separation to all persons based on the use of a 18dBi gain antenna. The use of higher gain antennas may require larger separation distances and may require RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 06/23/2016 Application Dated: 06/22/2016 |
| Airspan Networks Inc |
| 777 Yamato Rd |
| Suite 310 |
| Boca Raton, FL 33431 |
| Attention: Grant Pottash , Technical Services Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PIDH1KD25F |
| Name of Grantee: | Airspan Networks Inc |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Base station of LTE fixed cellular system |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2498.5 - 2687.5 | 10.74 | 150.0 Hz | 4M76D7D |
| MO | 27 | 2501.0 - 2685.0 | 10.62 | 150.0 Hz | 9M48D7D |
| MO | 27 | 2506.0 - 2680.0 | 10.5 | 150.0 Hz | 18M7D7D |
| MO | 27 | 2516.0 - 2670.0 | 10.35 | 150.0 Hz | 38M8D7D |
| Class 2 Permissive Change : Only firmware setting has been changed to add 40 MHz channel bandwidth modes. Power listed is conducted total peak power at antenna terminals. Professional installation is required. The antenna(s) used for this transmitter must be fixed mounted on permanent structures and must provide at least 2.5 meters separation to all persons based on the use of a 18dBi gain antenna. The use of higher gain antennas may require larger separation distances and may require RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application 8St3M9ftKSRych4G97QVWg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Airspan Networks Inc 777 Yamato Rd Suite 310 Boca Raton, FL 33431 United States |
Date of Grant: 06/23/2016 Application Dated: 06/22/2016 |
| Attention: Grant Pottash , Technical Services Director |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PIDH1KD25F |
| Name of Grantee: | Airspan Networks Inc |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Base station of LTE fixed cellular system |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| MO | 27 | 2498.5 - 2687.5 | 10.74 | 150.0 Hz | 4M76D7D |
| MO | 27 | 2501.0 - 2685.0 | 10.62 | 150.0 Hz | 9M48D7D |
| MO | 27 | 2506.0 - 2680.0 | 10.5 | 150.0 Hz | 18M7D7D |
| MO | 27 | 2516.0 - 2670.0 | 10.35 | 150.0 Hz | 38M8D7D |
| Class 2 Permissive Change : Only firmware setting has been changed to add 40 MHz channel bandwidth modes. Power listed is conducted total peak power at antenna terminals. Professional installation is required. The antenna(s) used for this transmitter must be fixed mounted on permanent structures and must provide at least 2.5 meters separation to all persons based on the use of a 18dBi gain antenna. The use of higher gain antennas may require larger separation distances and may require RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
