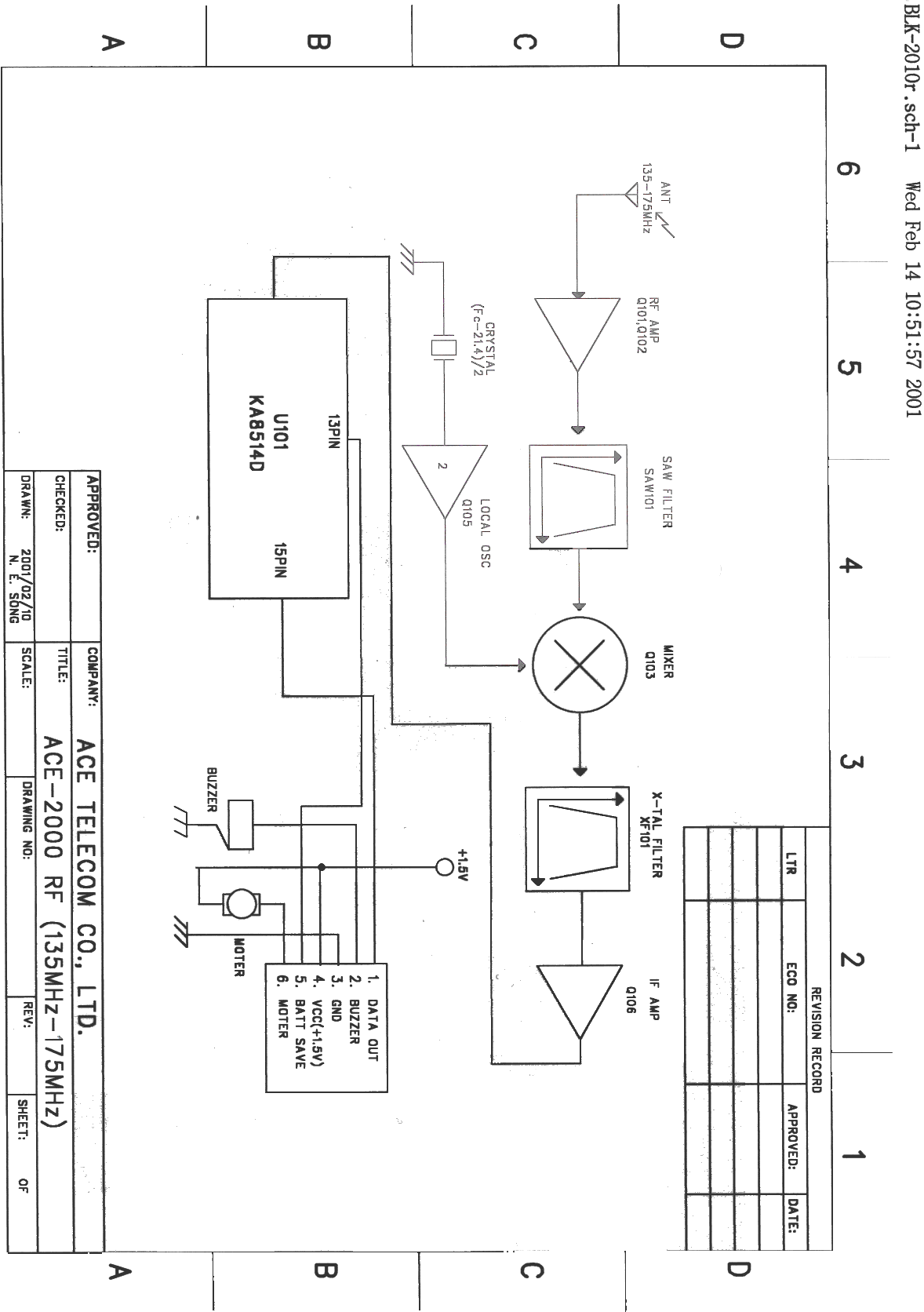

ACE2010 Pager (155MHz) Block Diagram - FCC ID PIGACE-2010

FCC ID PIGACE-2010

block diagram

Pager (155MHz)

by McKinley Korea Co Ltd

Document preview loads when visible.

Document Details

FCC IDPIGACE-2010
Document ID142644
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantMcKinley Korea Co Ltd
Equipment ClassPager (155MHz)
Product CodeACE2010
Application IDmJQOBgaWnzbFIu8ksZPxWQ==
Application PurposeOriginal Equipment
Application Date2001-03-29
Frequency Range154.5-155.5 MHz
FRN9999999999
Test FirmKorea Technology Institute Co., Ltd.
Certified ByNam-Eui Song Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-03-30
Available2001-03-29
Created2001-03-09
Modified2001-03-09
Pages1
File TypeAdobe Acrobat PDF
File Size132297
File SHA-2567ff5f0687f59bad04dfe2f64ec062bf754cffc61ead16829e75a668b76db0b1e
PDF Metadata ProducerAcrobat 4.05 Import Plug-in for Windows Acrobat 4.05 Import Plug-in for Windows
FCC.gov SourcesFCC.gov 142644
