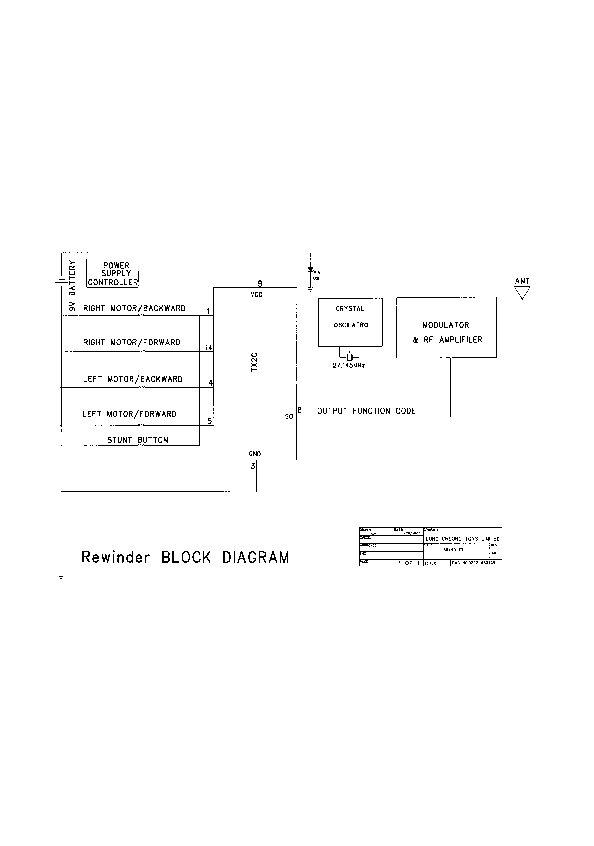

8044003A2T RC Car Block Diagram - FCC ID PIY80440-03A2T

FCC ID PIY80440-03A2T

Block Diagram

RC Car

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIY80440-03A2T
Document ID314421
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassRC Car
Product Code8044003A2T
Application IDNTA6kiw+5+BfSH9RjpE4XQ==
Application PurposeOriginal Equipment
Application Date2003-03-29
Frequency Range27.145 MHz
FRN0007273030
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-03-29
Available2003-03-29
Created2003-03-19
Modified2003-03-19
Pages1
File TypeAdobe Acrobat PDF
File Size11911
File SHA-256fed09248ddbd2fa4776f85de015780473019c67fe4ce76afd83d56334522281c
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 314421
