B511904A2T TERRAIN TWISTER Operational... - FCC ID PIYB5119-04A2T

FCC ID PIYB5119-04A2T

OPERATIONAL DESCRIPTION

TERRAIN TWISTER

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIYB5119-04A2T
Document ID421729
Document TypeOperational Description

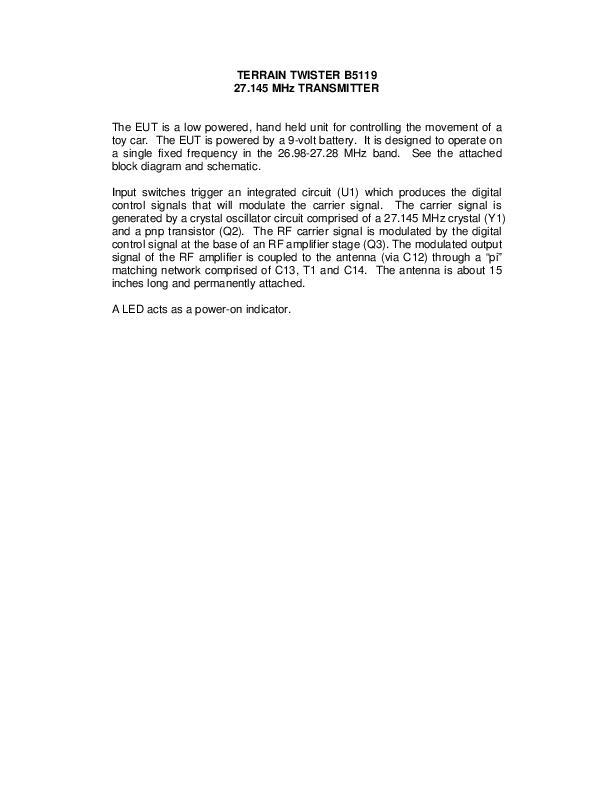

DescriptionOPERATIONAL DESCRIPTION
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassTERRAIN TWISTER
Product CodeB511904A2T
Application IDxFGZXBKIF0zkP17mQm+ziQ==
Application PurposeOriginal Equipment
Application Date2004-05-11
Frequency Range26.96-27.28 MHz
FRN0007273030
Test FirmCMA Industrial Development Foundations Limited
Certified ByCH POON VP
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-05-11
Available2004-05-11
Created2004-04-28
Modified2004-04-28
Pages1
File TypeAdobe Acrobat PDF
File Size10385
File SHA-256e07bc30cfec4dd6a7482f2e3838d573082f28bba06f6de0db872951b187f373a
PDF Metadata ProducerAFPL Ghostscript 7.03|ApCrypt 2.2 Linux 7 SPDF_1081 Jan 15 2003
FCC.gov SourcesFCC.gov 421729
