B672303A2T FORD F-150 STREET BEAST Block... - FCC ID PIYB6723-03A2T

FCC ID PIYB6723-03A2T

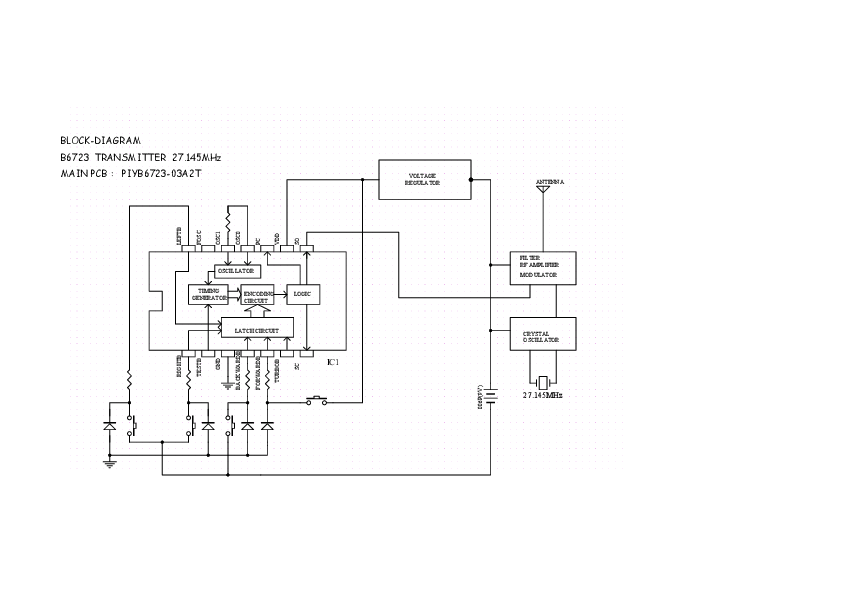

BLOCK DIAGRAM

FORD F-150 STREET BEAST

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIYB6723-03A2T
Document ID343855
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleAcrobat Distiller, Job 4
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassFORD F-150 STREET BEAST
Product CodeB672303A2T
Application IDEbt+LE8aL7rApbBVubnxFg==
Application PurposeOriginal Equipment
Application Date2003-07-29
Frequency Range27.145 MHz
FRN0007273030
Test FirmCMA Industrial Development Foundations Limited
Certified ByCH POOH VP
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-07-29
Available2003-07-29
Created2003-06-02
Modified2003-06-04
Pages1
File TypeAdobe Acrobat PDF
File Size58843
File SHA-2562ce14013acdfd31d1ec310a2247ff70202e7f8a35a2cae60bd6c324a823b3bb3
PDF Metadata Authorpe
PDF Metadata ProducerAcrobat Distiller 5.0 (Windows) pe
FCC.gov SourcesFCC.gov 343855
