DNH0316A5R DCSHG COMMUNICATORS... - FCC ID PIYDNH03-16A5R

FCC ID PIYDNH03-16A5R

Technical Description

DCSHG COMMUNICATORS

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIYDNH03-16A5R
Document ID2999588

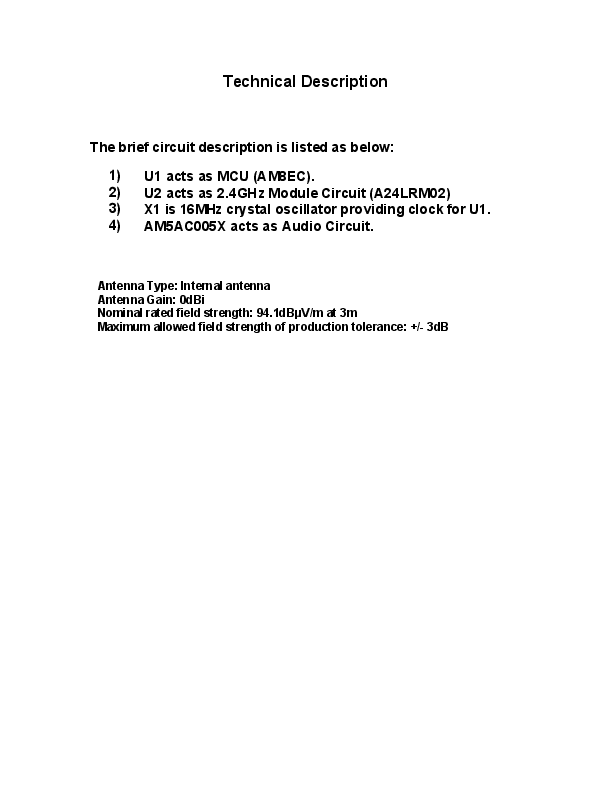

Document TypeOperational Description
DescriptionTechnical Description
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassDCSHG COMMUNICATORS
Product CodeDNH0316A5R
Application ID1SuhUn/ULWQQ01jv19xbrw==
Application PurposeOriginal Equipment
Application Date2016-05-23
Frequency Range2407 MHz
FRN0009479130
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2016-05-23
Available2016-05-23
Created2016-04-12
Modified2016-04-27
Pages1
File TypeAdobe Acrobat PDF
File Size74593
File SHA-25664223b8df36b8acf37eb0a9df8eec4d1704cc5a2b0fa73b788e6793dc103bb43
PDF Metadata ProducerAcrobat Distiller 11.0 (Windows)
FCC.gov SourcesFCC.gov 2999588
