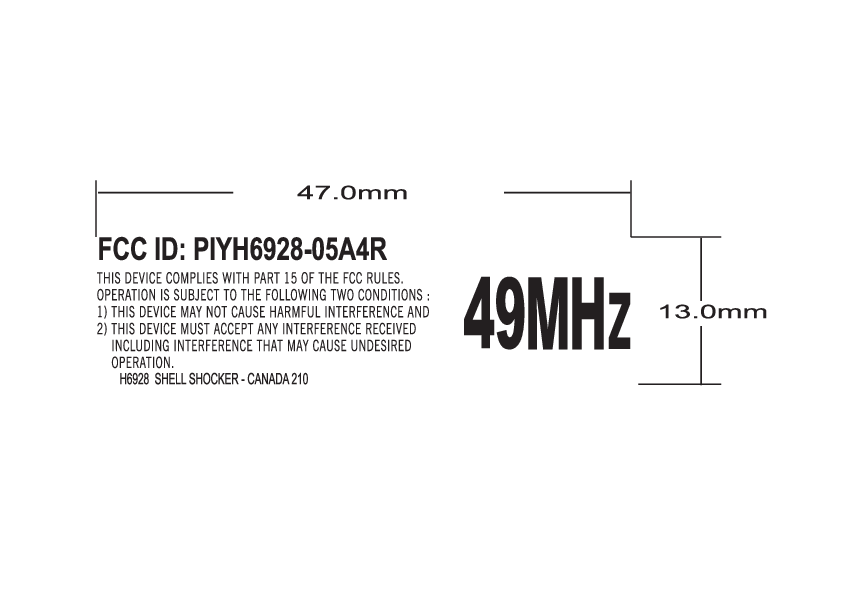

H692805A4R SHELL SHOCKER Label Diagram - FCC ID PIYH6928-05A4R

FCC ID PIYH6928-05A4R

LABEL SAMPLE 1

SHELL SHOCKER

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIYH6928-05A4R
Document ID556096
Document TypeID Label/Location Info
DescriptionLABEL SAMPLE 1
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassSHELL SHOCKER
Product CodeH692805A4R
Application IDi/+MeuRRVUmPHn904KbZrw==
Application PurposeOriginal Equipment
Application Date2005-06-27
Frequency Range49.68 MHz
FRN0007273030
Test FirmCMA Industrial Development Foundations Limited
Certified ByCH POON VP
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-06-27
Available2005-06-27
Created2005-05-26
Modified2005-05-26
Pages1
File TypeAdobe Acrobat PDF
File Size62302
File SHA-2562511e5a18b4583491db73b0dbffde6a5e2a525ca55dfccfe4d99e04996660d3e
FCC.gov SourcesFCC.gov 556096
