H928105A2T R/C STUNT CAR Schematics - FCC ID PIYH9281-05A2T

FCC ID PIYH9281-05A2T

SCHEMATICS

R/C STUNT CAR

by Mattel Asia Pacific Sourcing Ltd.

Document preview loads when visible.

Document Details

FCC IDPIYH9281-05A2T
Document ID604758
Document TypeSchematics
DescriptionSCHEMATICS

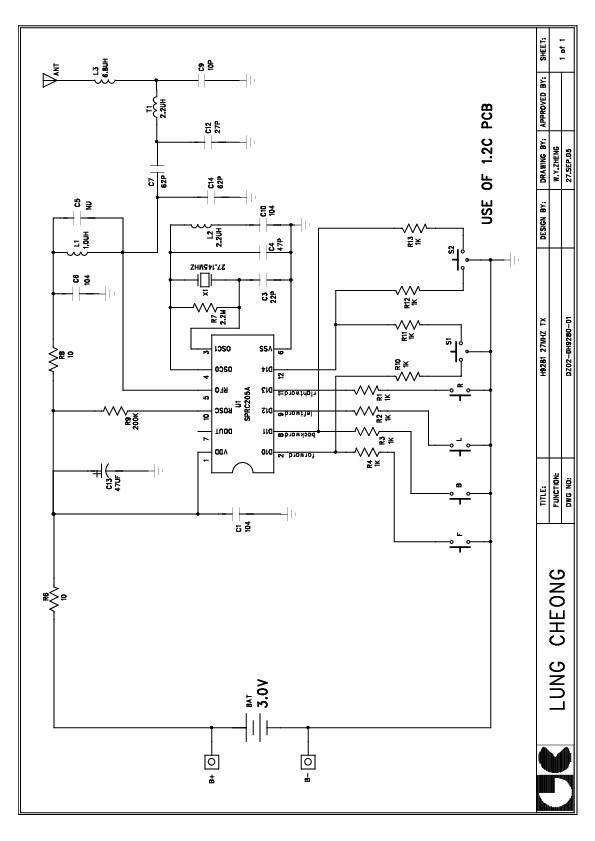

Document TitleCAM output
ApplicantMattel Asia Pacific Sourcing Ltd.
Equipment ClassR/C STUNT CAR
Product CodeH928105A2T
Application ID6vP5aGpY+ruyk/pM4H/szQ==
Application PurposeOriginal Equipment
Application Date2005-11-18
Frequency Range27.145 MHz
FRN0007273030
Test FirmHong Kong Productivity Council
Certified ByCH POON VP
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-11-21
Available2005-11-18
Created2005-10-28
Modified2005-10-28
Pages1
File TypeAdobe Acrobat PDF
File Size31174
File SHA-25682af0eee440fc0e4752cb60df9f20e338ba9fc3fdc0403568ec7fefe6403d15f
PDF Metadata Authordgeng
PDF Metadata ProducerpdfFactory Pro www.pdffactory.com pdfFactory Pro 2.27 (Windows 2000 Professional Chinese)
FCC.gov SourcesFCC.gov 604758
