X727312A4T RC CARS 2 EZ DRIVER MATER... - FCC ID PIYX7273-12A4T
FCC ID PIYX7273-12A4T

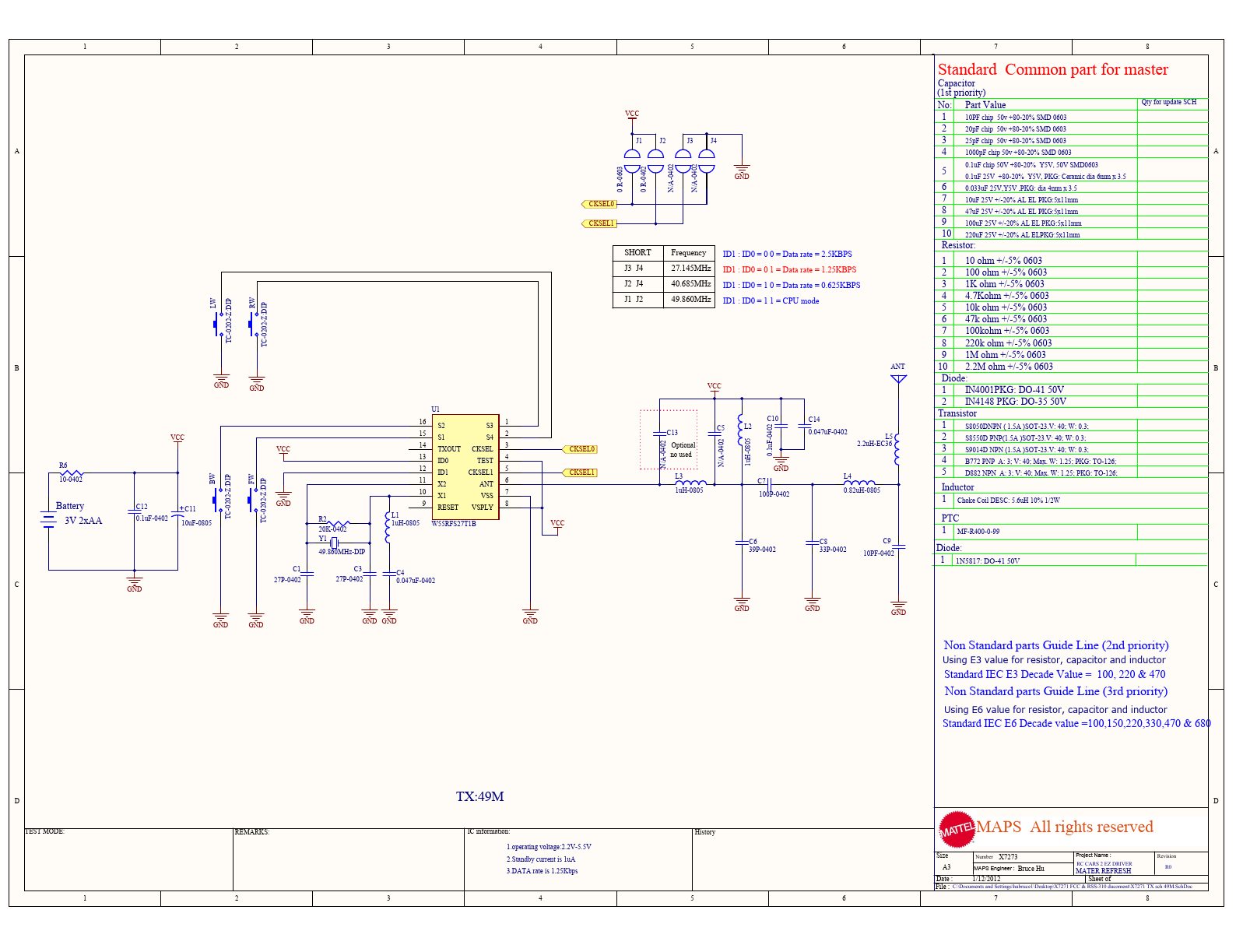

Schematics
RC CARS 2 EZ DRIVER MATER REFRESH
Document preview loads when visible.
Document Details
| FCC ID | PIYX7273-12A4T |
|---|---|
| Document ID | 1638495 |
| Document Type | Schematics |
| Description | Schematics |
| Document Title | No Title |
| Applicant | Mattel Asia Pacific Sourcing Ltd. |
| Equipment Class | RC CARS 2 EZ DRIVER MATER REFRESH |
| Product Code | X727312A4T |
| Application ID | kfNz+oqO/LifbnDXTBRdJw== |
| Application Purpose | Original Equipment |
| Application Date | 2012-02-16 |
| Frequency Range | 49.86 MHz |
| FRN | 0007273030 |
| Test Firm | CMA Industrial Development Foundations Limited |
| Certified By | Andrew Wong Assistant Manager |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2012-02-16 |
| Available | 2012-02-16 |
| Created | 2012-01-12 |
| Modified | 2012-02-16 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 110016 |
| File SHA-256 | fa07ab63a2fad6da378b11040a2cfbada80e3a8e31297b68570ee5d257cd6f7c |
| PDF Metadata Author | Windows 9x/NT/2000/XP User |
| PDF Metadata Creator | Altium Designer Summer 09 |
| PDF Metadata Producer | llPDFLib 3.x |
| FCC.gov Sources | FCC.gov 1638495 |
