FCC ID PJZ6768
XDSL 4 Port WiFi 802.11ac Gateway
by DASAN Zhone Solutions, Inc.
Grantee Code: PJZ Product Code: 6768
Latest application date: 2017-02-22
Device Images
FCC ID Device Details
| FCC ID | PJZ6768 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PJZ |
| Product Code | 6768 |
| Applicant Business | DASAN Zhone Solutions, Inc. 🇺🇸 |
| Related Domains |  dasanzhone.com  newbtl.com |
| Equipment Class | XDSL 4 Port WiFi 802.11ac Gateway |
| Test Firm | BTL Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-02-22 |
| 5180-5240 MHz | Original Equipment | 2017-02-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

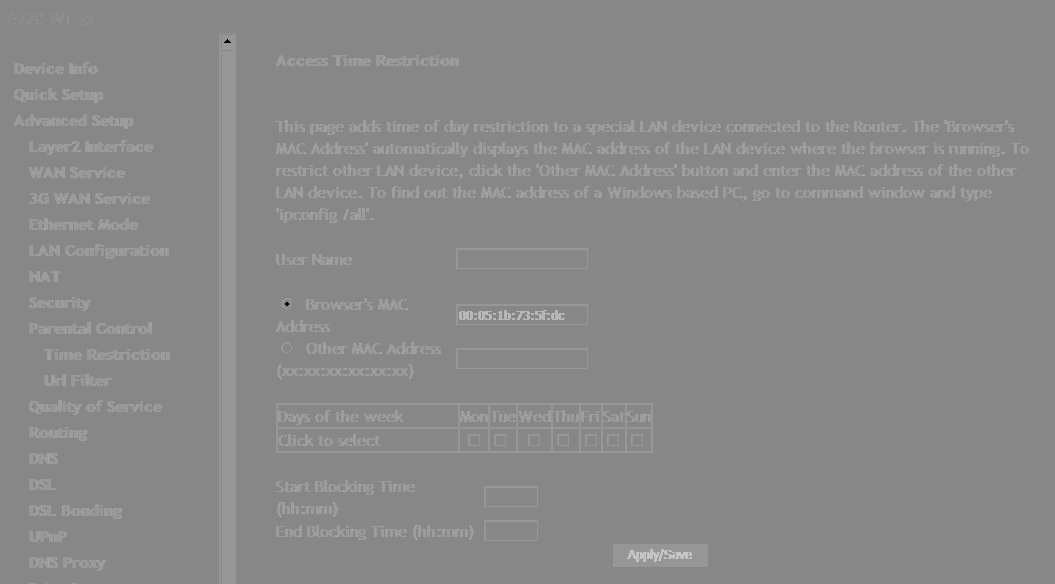

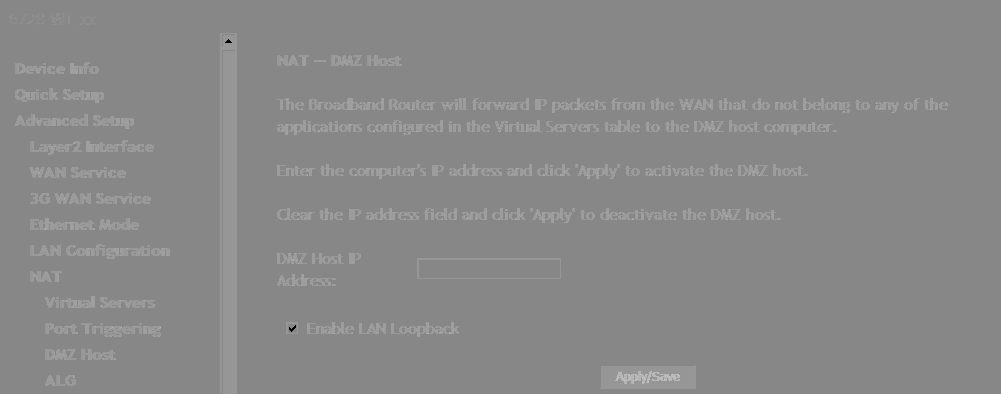

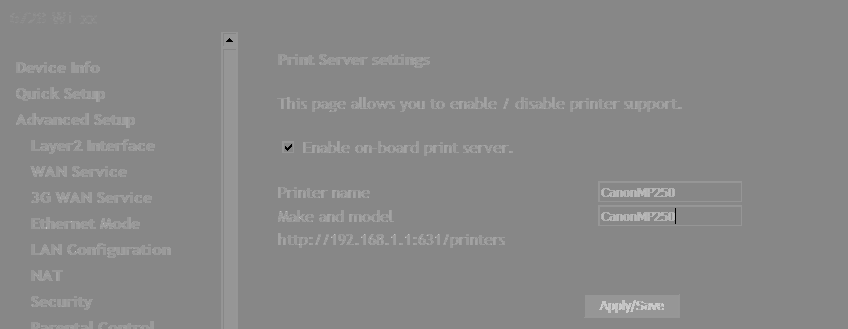

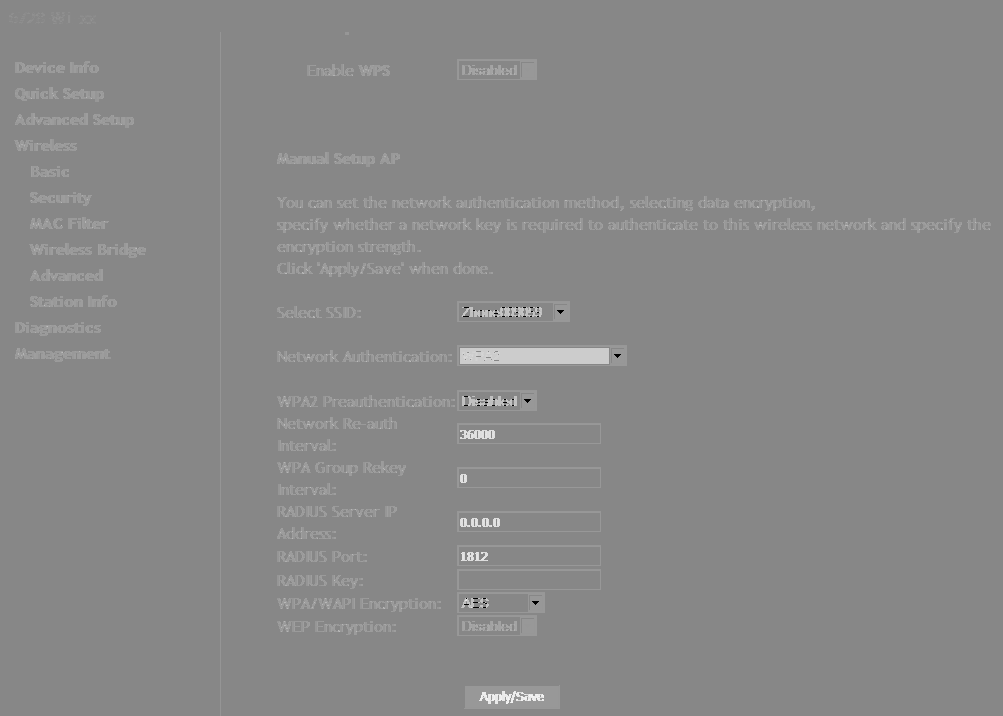

| Users Manual | Users Manual | 2017-02-22 | PDF 5.7 MB |

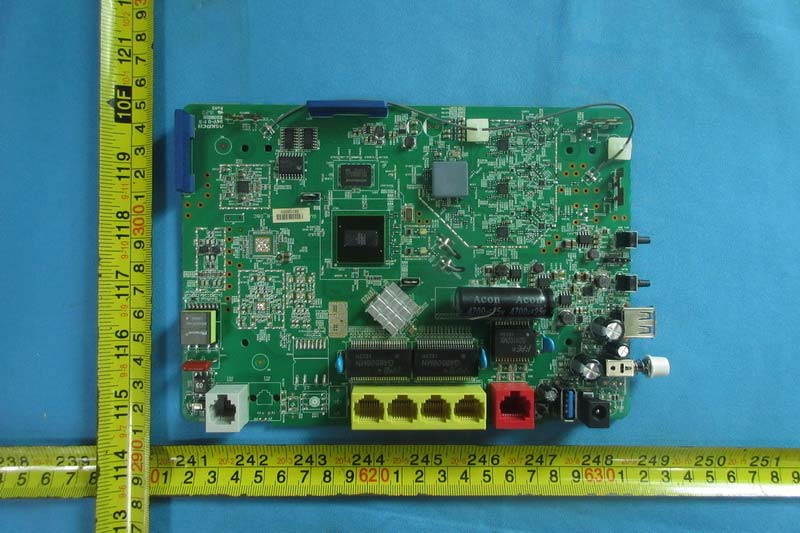

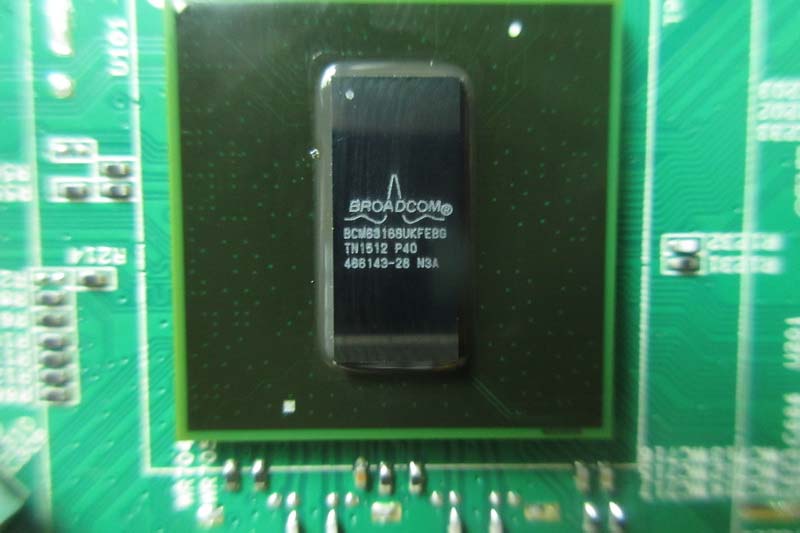

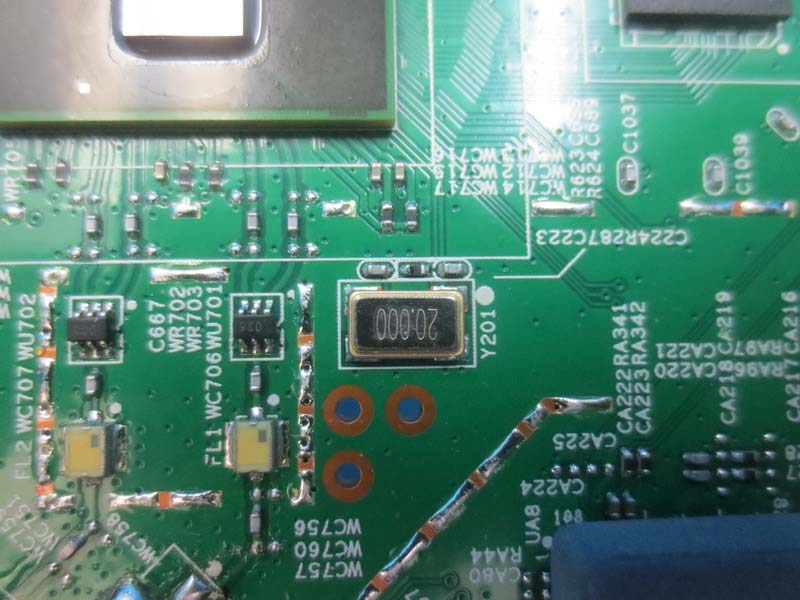

| Internal Photos | Internal Photos | 2017-02-22 | PDF 623.3 KB |
| External Photos | External Photos | 2017-02-22 | PDF 308.4 KB |
| ID Label/Location Info | ID Label/Location Info | 2017-02-22 | PDF 612.9 KB |
| Test Setup Photos_NII | Test Setup Photos | 2017-02-22 | PDF 856.4 KB |
| Test Report_DTS-1 | Test Report | 2017-02-22 | PDF 3.9 MB |
| Test Report_DTS-2 | Test Report | 2017-02-22 | PDF 3.8 MB |
| Test Report_NII-1 | Test Report | 2017-02-22 | PDF 4.7 MB |
| Test Report_NII-2 | Test Report | 2017-02-22 | PDF 5.5 MB |
| Declaration of authorization | Cover Letter(s) | 2017-02-22 | PDF 63.3 KB |
| FCC DOC | Cover Letter(s) | 2017-02-22 | PDF 583.2 KB |
| confidentiality | Cover Letter(s) | 2017-02-22 | PDF 97.3 KB |
| FCC RF Exposure Info | RF Exposure Info | 2017-02-22 | PDF 147.8 KB |
| Block Diagram Metadata only | Block Diagram | PDF 233.2 KB | |
| Schematics Metadata only | Schematics | PDF 1.1 MB | |
| Operation Description for software security Metadata only | Operational Description | PDF 60.2 KB | |
| Operational Description Metadata only | Operational Description | PDF 29.9 KB |
Application Information
| Application ID | sC6J6qZN0/17/vfYoMvDXQ== |
|---|---|
| Final Action Date | 2017-02-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0004367017 |
| Model | 6768 |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | XDSL 4 Port WiFi 802.11ac Gateway |
| Responsible Party | Keith Nauman, SVP, Global Quality & Service, KNauman@dasanzhone.com , 510-777-7000 |
| Agent | Cathy Cathy Cathy, BTL Inc., cathy@newbtl.com , 86-769-83183000 |
| Technical Contact | Steven Lu, BTL Inc., steven@newbtl.com , 86-769-83183000 |
| Non-Technical Contact | Cathy Wang, BTL Inc., cathy@newbtl.com , 86-769-83183000 |
| Test Firm | Daisy Dai, BTL Inc., daisy.dai@btl.org.cn  , 008676983183000 |
| TCB Email | certification@telefication.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| sC6J6qZN0/17/vfYoMvDXQ== | 2017-02-22 | Original Equipment |
| JYEMAQUl304iLNwpV2MuHg== | 2017-02-22 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application sC6J6qZN0/17/vfYoMvDXQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 02/22/2017 Application Dated: 02/20/2017 |
| DASAN Zhone Solutions, Inc. |
| 1350 South Loop Rd. |
| Suite 130 |
| Alameda, CA 94502 |
| Attention: Keith Nauman , SVP, Global Quality & Service |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PJZ6768 |
| Name of Grantee: | DASAN Zhone Solutions, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | XDSL 4 Port WiFi 802.11ac Gateway |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.55 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application sC6J6qZN0/17/vfYoMvDXQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
DASAN Zhone Solutions, Inc. 1350 South Loop Rd. Suite 130 Alameda, CA 94502 United States |
Date of Grant: 02/22/2017 Application Dated: 02/20/2017 |
| Attention: Keith Nauman , SVP, Global Quality & Service |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PJZ6768 |
| Name of Grantee: | DASAN Zhone Solutions, Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | XDSL 4 Port WiFi 802.11ac Gateway |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.55 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be used to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with antenna transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40 MHz bandwidth modes. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Telefication B.V. Wilmersdorf 50 Apeldoorn, NL-7300 AC Netherlands |
Date of Grant: 02/22/2017 Application Dated: 02/20/2017 |
| DASAN Zhone Solutions, Inc. |
| 1350 South Loop Rd. |
| Suite 130 |
| Alameda, CA 94502 |
| Attention: Keith Nauman , SVP, Global Quality & Service |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PJZ6768 |
| Name of Grantee: | DASAN Zhone Solutions, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | XDSL 4 Port WiFi 802.11ac Gateway |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.64 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.75 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application JYEMAQUl304iLNwpV2MuHg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
DASAN Zhone Solutions, Inc. 1350 South Loop Rd. Suite 130 Alameda, CA 94502 United States |
Date of Grant: 02/22/2017 Application Dated: 02/20/2017 |
| Attention: Keith Nauman , SVP, Global Quality & Service |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PJZ6768 |
| Name of Grantee: | DASAN Zhone Solutions, Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | XDSL 4 Port WiFi 802.11ac Gateway |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.64 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.75 |
| Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. This device has 20/40/80 MHz bandwidth modes. The 80 MHz mode is limited to channel at 5210MHz and 5775 MHz. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
