CHT22303 a full deplex walkie talkie... - FCC ID PN5-CHT-22303

FCC ID PN5-CHT-22303

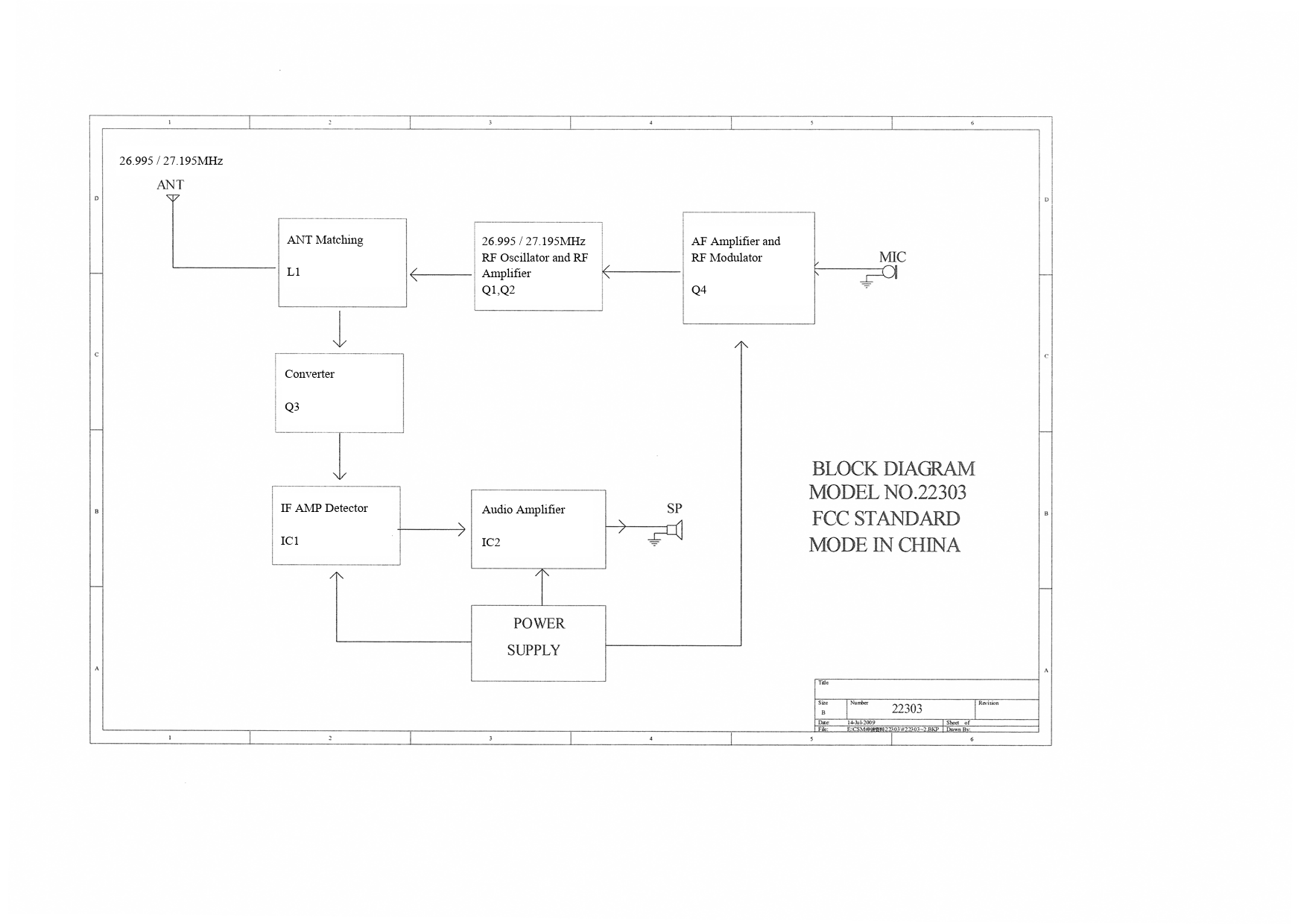

Block diagram

a full deplex walkie talkie

by Choy Hing Toys Industrial Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPN5-CHT-22303
Document ID1151107
Document TypeBlock Diagram
DescriptionBlock diagram
Document TitleACDSeePrint Job
ApplicantChoy Hing Toys Industrial Co., Ltd.
Equipment Classa full deplex walkie talkie
Product CodeCHT22303
Application ID2eIQ1lPVbxC7byrtWLvECA==
Application PurposeOriginal Equipment
Application Date2009-08-10
Frequency Range26.995-27.195 MHz
FRN0018975458
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByBen Ho
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-08-10
Available2009-08-10
Created2009-07-28
Modified2009-07-28
Pages1
File TypeAdobe Acrobat PDF
File Size759728
File SHA-25615bfa97a7b8c800d3f64d6afd0822abd331373c5fd59e6f3fcdfe7ef823a70cd
PDF Metadata Authormleung
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 1151107
