0100E0 WIRELESS OPTICAL MOUSE Block Diagram - FCC ID PP20100E0
FCC ID PP20100E0

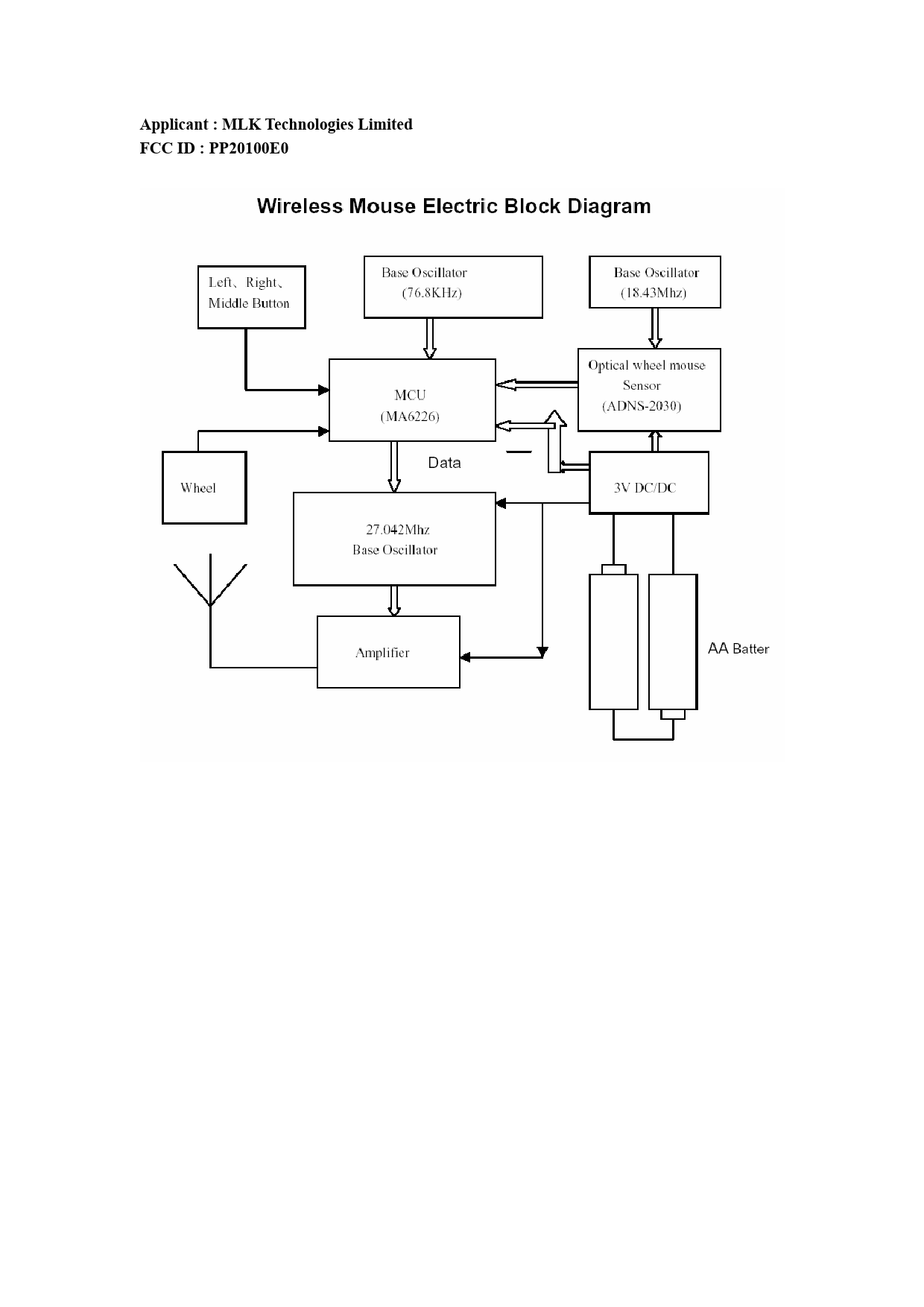

BLOCK DIAGRAM
WIRELESS OPTICAL MOUSE
Document preview loads when visible.
Document Details
| FCC ID | PP20100E0 |
|---|---|
| Document ID | 337861 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Applicant | Shenzhen Rapoo Technology Co., Ltd |
| Equipment Class | WIRELESS OPTICAL MOUSE |
| Product Code | 0100E0 |
| Application ID | n4j645ZawijUcp5YtnOE4Q== |
| Application Purpose | Original Equipment |
| Application Date | 2003-07-07 |
| Frequency Range | 27.042 MHz |
| FRN | 0017901232 |
| Test Firm | Shenzhen Academy of Metrology & Quality Inspection |
| Certified By | XIN WEI CAO R&D; |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-07-07 |
| Available | 2003-07-07 |
| Created | 2019-01-12 |
| Modified | 2019-01-12 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 46521 |
| File SHA-256 | cd98a19d5f6676a4e0d7c41689562991cd7c65259cfe8a1eaad776eba777ccef |
| PDF Metadata Producer | GPL Ghostscript 9.25 |
| FCC.gov Sources | FCC.gov 337861 |
