FCC ID PPQ-WN4519R
802.11a/b/g/n 2T2R Wireless LAN USB Module
by LITE-ON TECHNOLOGY CORP.
Grantee Code: PPQ Product Code: WN4519R
Latest application date: 2017-02-23
Device Images
FCC ID Device Details
| FCC ID | PPQ-WN4519R |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PPQ |
| Product Code | WN4519R |
| Applicant Business | LITE-ON TECHNOLOGY CORP. 🇹🇼 |
| Related Domains |  liteon.com |
| Equipment Class | 802.11a/b/g/n 2T2R Wireless LAN USB Module |
| Test Firm | Compliance Certification Services Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2017-02-23 |
| 5180-5240 MHz | Original Equipment | 2017-02-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-02-23 | PDF 1.2 MB |
| User manual Warning statement | Users Manual | 2017-02-23 | PDF 113.7 KB |
| User manual warning statement | Users Manual | 2017-02-23 | PDF 113.7 KB |
| Internal photos | Internal Photos | 2017-02-23 | PDF 1.4 MB |
| External photos | External Photos | 2017-02-23 | PDF 194 KB |
| label and Label location | ID Label/Location Info | 2017-02-23 | PDF 106.9 KB |

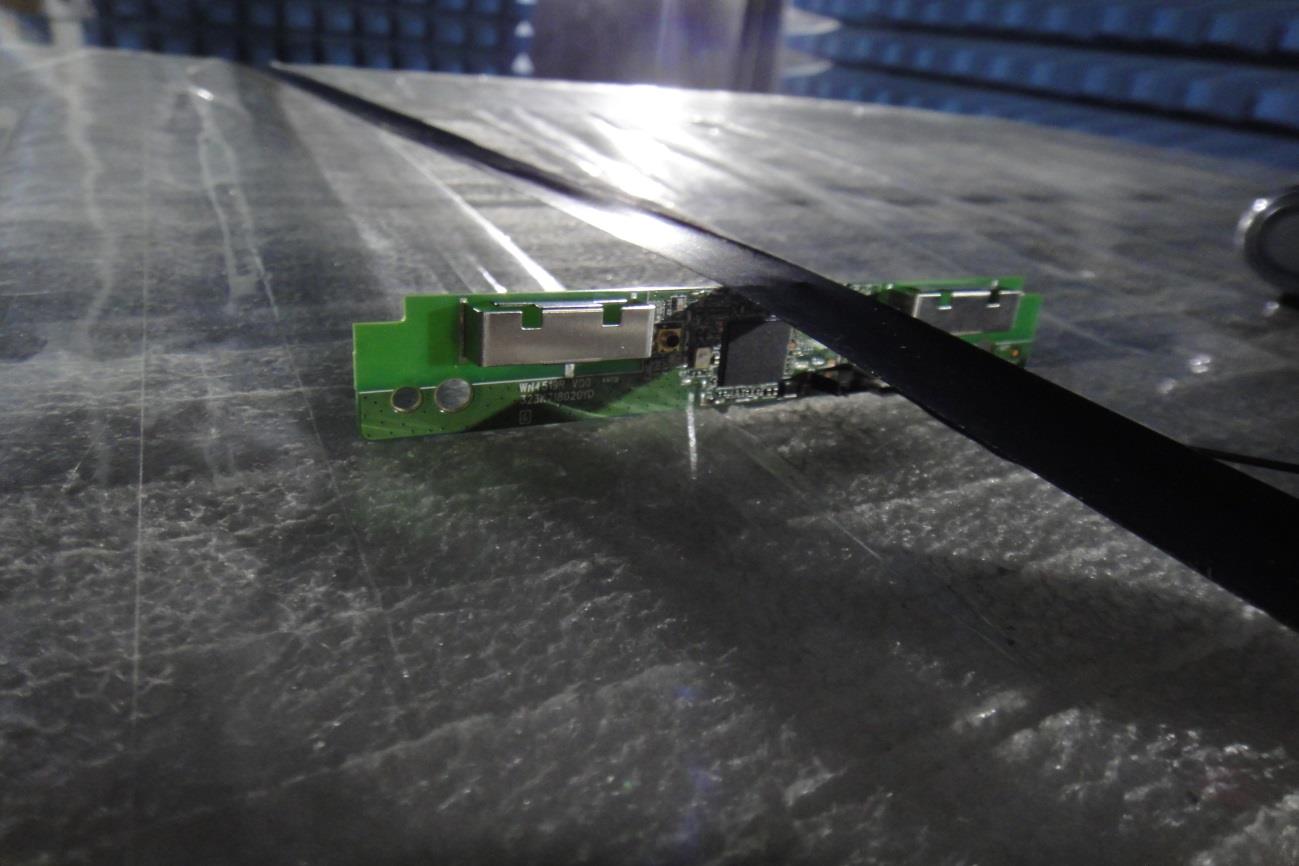

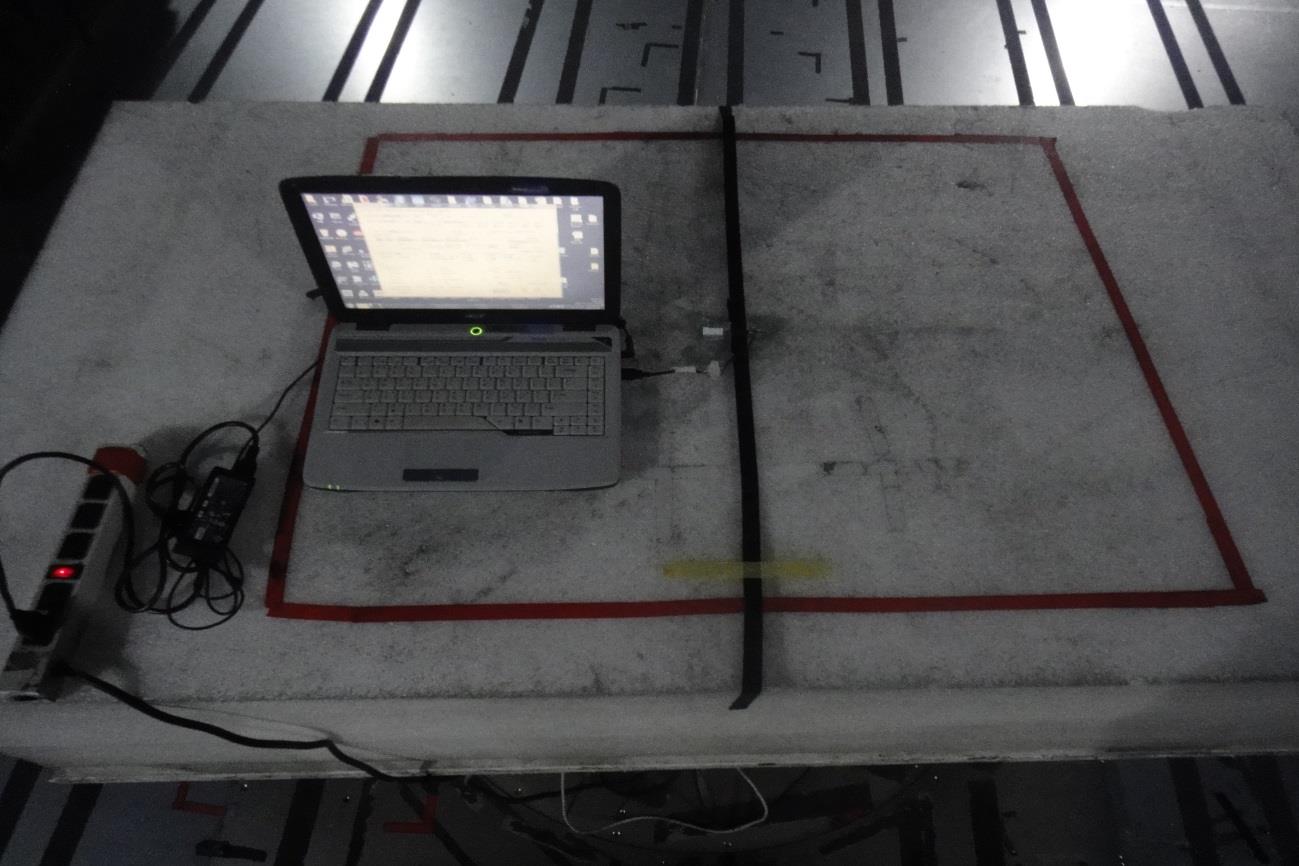

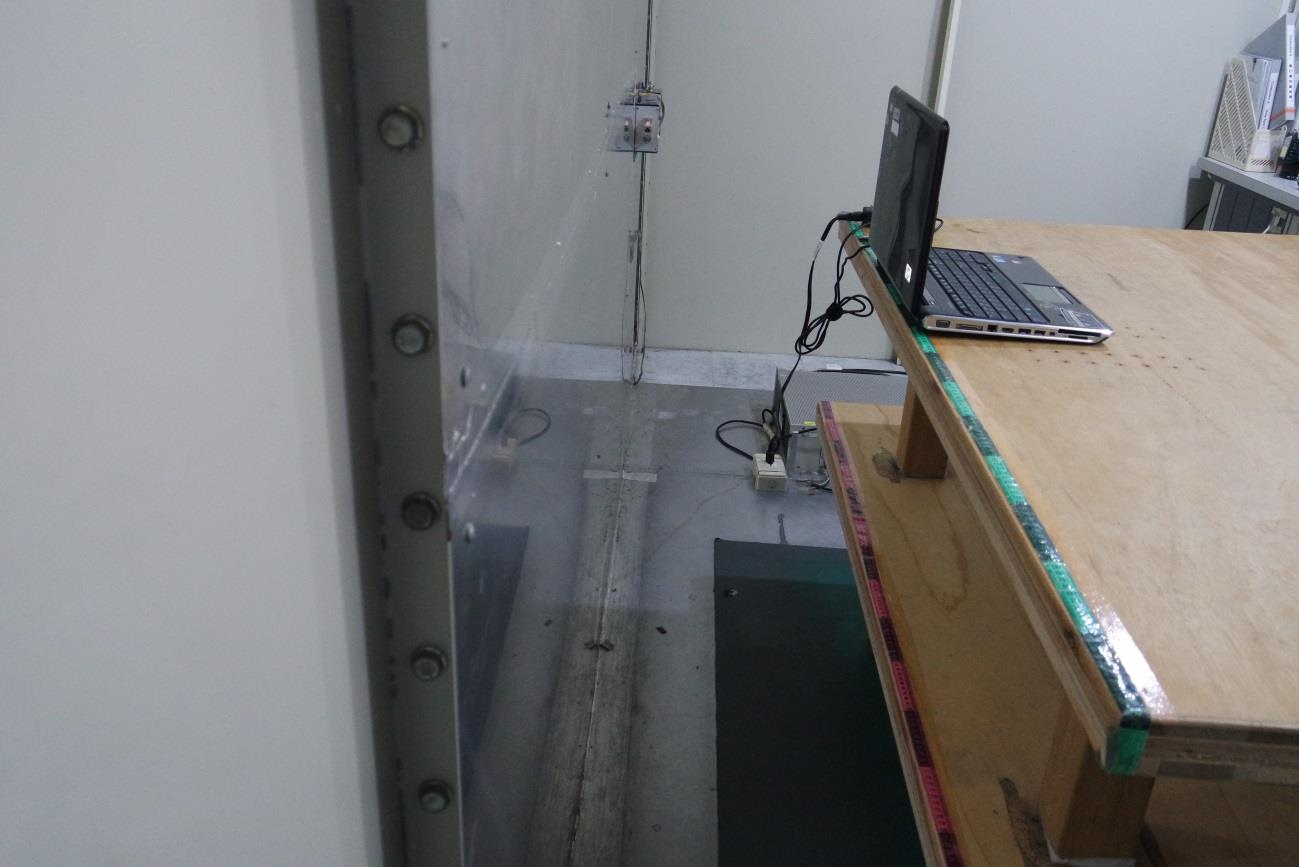

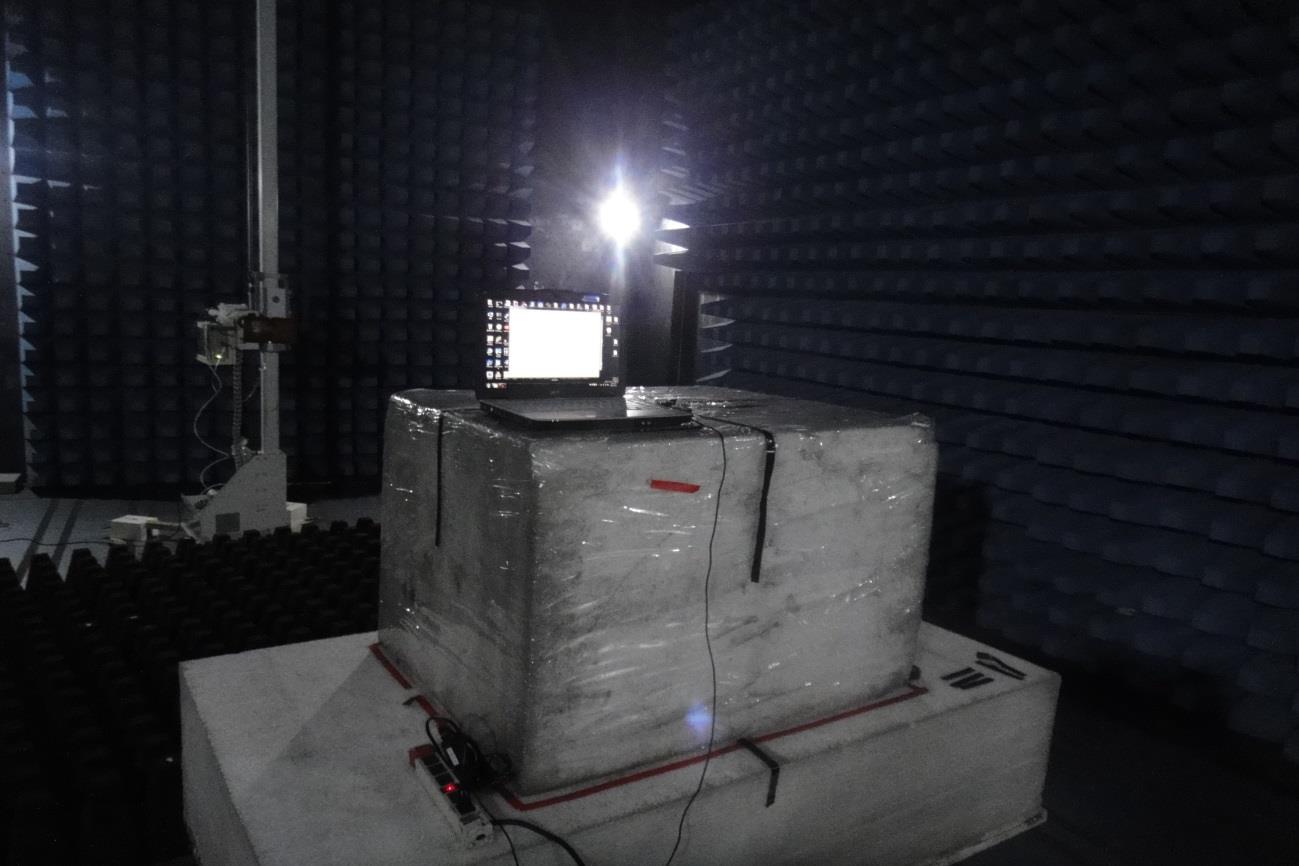

| RF Test Set-up Photos | Test Setup Photos | 2017-02-23 | PDF 1.1 MB |
| RF Test Set-up Photos | Test Setup Photos | 2017-02-23 | PDF 1.9 MB |
| RF Test Report | Test Report | 2017-02-23 | PDF 5.6 MB |
| RF Test Report-1 | Test Report | 2017-02-23 | PDF 4.1 MB |
| RF Test Report-2 | Test Report | 2017-02-23 | PDF 4.7 MB |
| RF Test Report-3 | Test Report | 2017-02-23 | PDF 4.5 MB |
| Authorization Letter | Cover Letter(s) | 2017-02-23 | PDF 19.6 KB |
| DFS device Desription letter | Cover Letter(s) | 2017-02-23 | PDF 82 KB |
| DTS Ch12&13 Declaration letter | Cover Letter(s) | 2017-02-23 | PDF 111.3 KB |
| LTC Letter | Cover Letter(s) | 2017-02-23 | PDF 37.6 KB |
| Modular Approval Letter | Cover Letter(s) | 2017-02-23 | PDF 25.3 KB |
| POA | Cover Letter(s) | 2017-02-23 | PDF 10.9 KB |
| MPE Report | RF Exposure Info | 2017-02-23 | PDF 175.6 KB |
| Block Diagram Metadata only | Block Diagram | PDF 39.9 KB | |
| Schematics Metadata only | Schematics | PDF 75.7 KB | |
| Antenna Specification_Auden Metadata only | Operational Description | PDF 265 KB | |
| Antenna Specification_Walsin Metadata only | Operational Description | PDF 972 KB | |
| Operational Description Metadata only | Operational Description | PDF 153.7 KB | |
| SW Declaration letter Metadata only | Operational Description | PDF 115 KB |
Application Information
| Application ID | 7zVwL2c3q0EHJZCGQHOQcA== |
|---|---|
| Final Action Date | 2017-02-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0014765044 |
| Model | WN4519R |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11a/b/g/n 2T2R Wireless LAN USB Module |
| Responsible Party | TC Wu, Deputy Director(R & D Division), tc.wu@liteon.com , 86-2222-6181 |
| Test Firm | Hank Lee, Compliance Certification Services Inc., hank.lee@sgs.com  , 886-2-22999720 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single module approval. Power Output listed is conducted. Device is 2x2 MIMO and contains 20/40MHz bandwidth. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. |
