FCC ID PPQ-WN4639R
802.11n, 2.4G 1T1R Wireless LAN USB Module
by LITE-ON Technology Corp.
Grantee Code: PPQ Product Code: WN4639R
Latest application date: 2016-01-29
Device Images
FCC ID Device Details
| FCC ID | PPQ-WN4639R |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PPQ |
| Product Code | WN4639R |
| Applicant Business | LITE-ON Technology Corp. 🇹🇼 |
| Related Domains |  liteon.com |
| Equipment Class | 802.11n, 2.4G 1T1R Wireless LAN USB Module |
| Test Firm | Compliance Certification Services Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2412-2462 MHz | Original Equipment | 2016-01-29 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-01-29 | PDF 859.6 KB |
| Internal Photos | Internal Photos | 2016-01-29 | PDF 1.1 MB |
| External Photos | External Photos | 2016-01-29 | PDF 1.1 MB |
| Label Info | ID Label/Location Info | 2016-01-29 | PDF 151.1 KB |

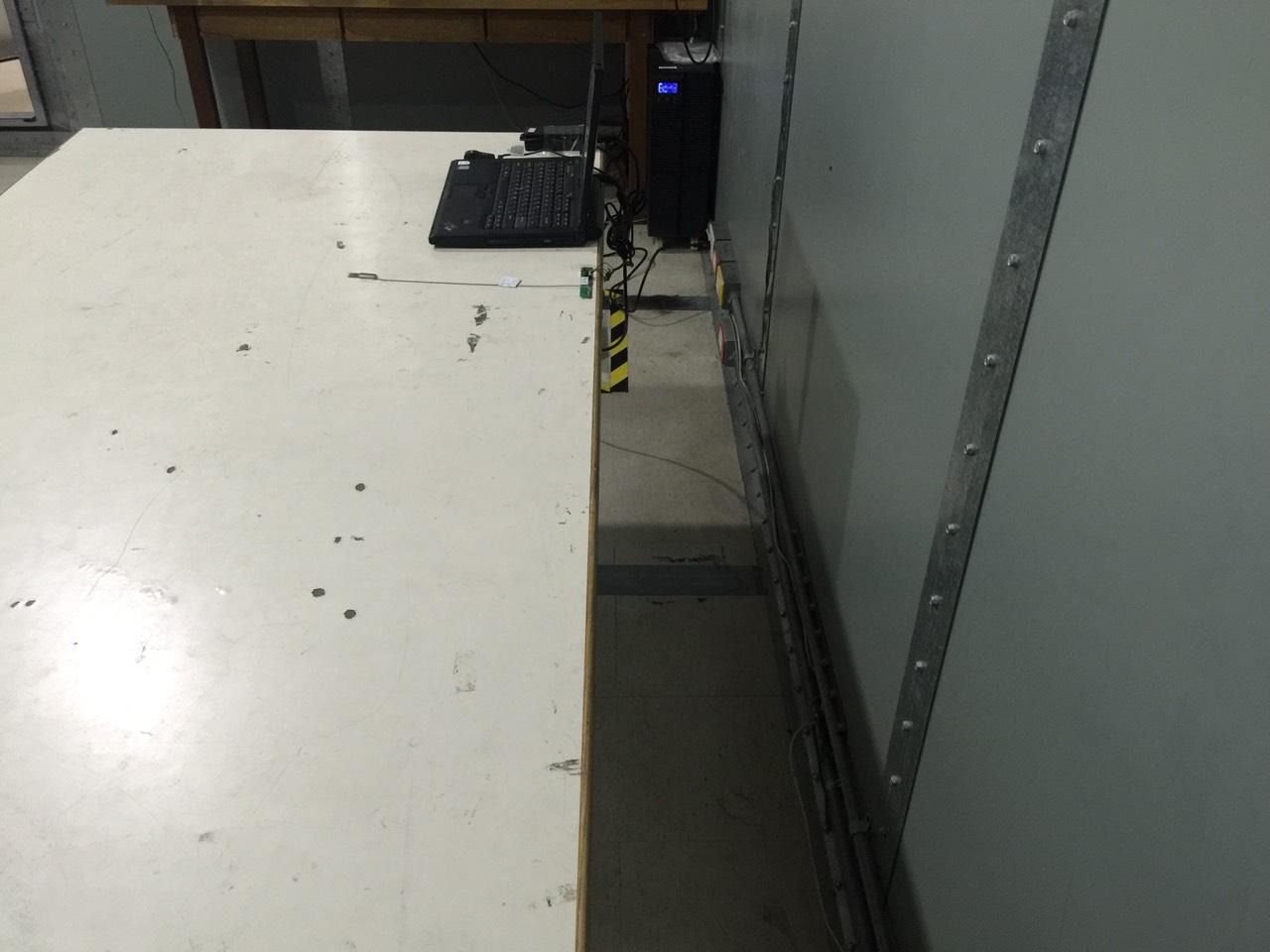

| Test Setup Photos | Test Setup Photos | 2016-01-29 | PDF 1.2 MB |
| Test Report | Test Report | 2016-01-29 | PDF 2.9 MB |
| Confidentiality Letter | Cover Letter(s) | 2016-01-29 | PDF 31.7 KB |
| DoC | Cover Letter(s) | 2016-01-29 | PDF 71.8 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-01-29 | PDF 24 KB |
| POA | Cover Letter(s) | 2016-01-29 | PDF 14.5 KB |
| Target Power Power Tolerance | Cover Letter(s) | 2016-01-29 | PDF 73.6 KB |
| RF Exposure Info | RF Exposure Info | 2016-01-29 | PDF 175.4 KB |
Application Information
| Application ID | sOplfCkVzsUzkdexSOJAbg== |
|---|---|
| Final Action Date | 2016-01-29 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0014765044 |
| Model | -WN4639R |
| Frequency Range | 2412-2462 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | 802.11n, 2.4G 1T1R Wireless LAN USB Module |
| Responsible Party | TC Wu, Deputy Director(R & D Division), tc.wu@liteon.com , 86-2222-6181 |
| Test Firm | Kurt Chen, Compliance Certification Services Inc., kurt.chen@ccsrf.com  , 886-3-3240332 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Single Modular Approval. Power listed is conducted. This devices with multiple bandwidths of 20 MHz and 40 MHz. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| sOplfCkVzsUzkdexSOJAbg== | 2016-01-29 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application sOplfCkVzsUzkdexSOJAbg==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 <BR>P.O. Box 370, Newberry, FL 32669 |
Date of Grant: 01/29/2016 Application Dated: 01/29/2016 |
| LITE-ON Technology Corp. |
| Bldg. C, 90, Chien 1 Rd., Chung-Ho, |
| New Taipei City,, 23585 Taiwan |
| Attention: TC Wu , Deputy Director(R & D Division) |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PPQ-WN4639R |
| Name of Grantee: | LITE-ON Technology Corp. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11n, 2.4G 1T1R Wireless LAN USB Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.4102 | |||
| 15C | 2412.0 - 2462.0 | 0.3855 | |||
| 15C | 2412.0 - 2462.0 | 0.4121 | |||
| 15C | 2412.0 - 2462.0 | 0.3954 |
| Single Modular Approval. Power listed is conducted. This devices with multiple bandwidths of 20 MHz and 40 MHz. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
EAS Grant - Application sOplfCkVzsUzkdexSOJAbg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
LITE-ON Technology Corp. Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City,, 23585 Taiwan |
Date of Grant: 01/29/2016 Application Dated: 01/29/2016 |
| Attention: TC Wu , Deputy Director(R & D Division) |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PPQ-WN4639R |
| Name of Grantee: | LITE-ON Technology Corp. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11n, 2.4G 1T1R Wireless LAN USB Module |
| Modular Type: | Single Modular |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2412.0 - 2462.0 | 0.4102 | |||
| 15C | 2412.0 - 2462.0 | 0.3855 | |||
| 15C | 2412.0 - 2462.0 | 0.4121 | |||
| 15C | 2412.0 - 2462.0 | 0.3954 |
| Single Modular Approval. Power listed is conducted. This devices with multiple bandwidths of 20 MHz and 40 MHz. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. |
