1. FCC ID
  2. PQG
  3. PQG-EX23G
  4. LABEL SAMPLE

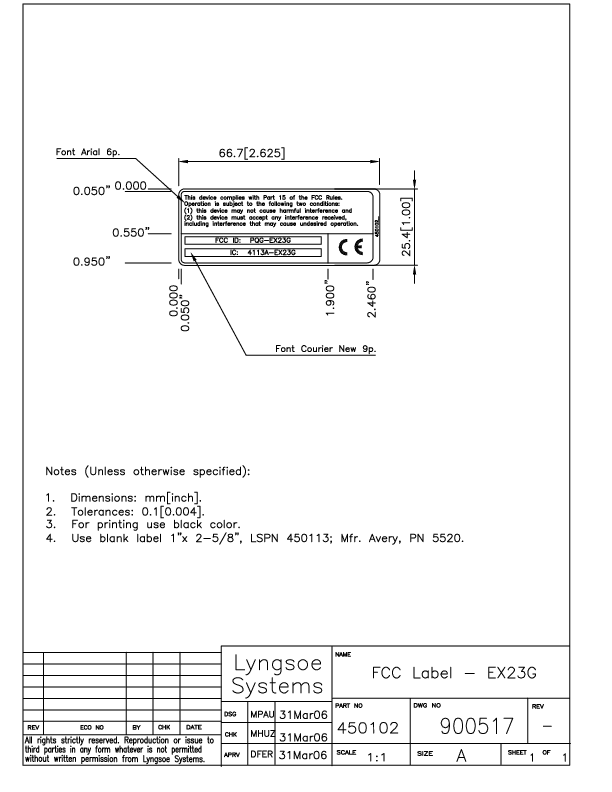

EX23G EXCITER EX23G Label Diagram - FCC ID PQG-EX23G

FCC ID PQG-EX23G

LABEL SAMPLE

EXCITER EX23G

by Lyngsoe Systems Ltd.

Document preview loads when visible.

Document Details

FCC IDPQG-EX23G
Document ID686487
Document TypeID Label/Location Info
DescriptionLABEL SAMPLE
Document Title900517_ Layout1 (1)
ApplicantLyngsoe Systems Ltd.
Equipment ClassEXCITER EX23G
Product CodeEX23G
Application ID0xklLRzy7potHQB7M/NukQ==
Application PurposeOriginal Equipment
Application Date2006-07-26
Frequency Range0.125 MHz
FRN0004944047
Test FirmUltraTech Engineering Labs Inc.
Certified ByDONALD FERGUSON VP
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2006-07-26
Available2006-07-26
Created2006-07-18
Modified2006-07-20
Pages1
File TypeAdobe Acrobat PDF
File Size36093
File SHA-256e79e20eb404ee05edfd9ebb01e005a350255e2707ab70ade22018a90b40fbe36
PDF Metadata Authortpa
PDF Metadata ProducerGPL Ghostscript 8.15 tpa
FCC.gov SourcesFCC.gov 686487, FCC.gov 686508
