FCC ID PQMA5S4
Caterpillar CATBTNT
by Caterpillar, Inc.
Grantee Code: PQM Product Code: A5S4
Latest application date: 2016-09-19
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-09-19 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit D Users Manual per 2 1033 b3 | Users Manual | 2016-09-19 | PDF 225.7 KB |
| Exhibit C Internal Photographs per 2 1033 b7 | Internal Photos | 2016-09-19 | PDF 964.9 KB |
| Exhibit C External Photographs per 2 1033 b7 | External Photos | 2016-09-19 | PDF 506.2 KB |
| Exhibit A ID Label and location per 2 1033 b7 | ID Label/Location Info | 2016-09-19 | PDF 124.2 KB |

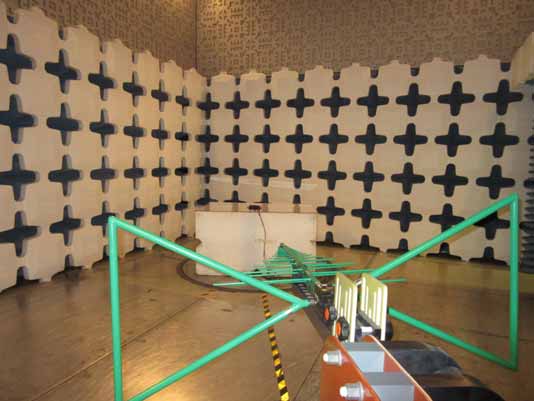

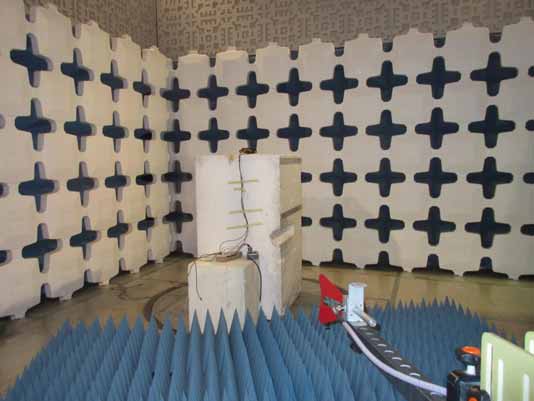

| Exhibit C RE Test Setup photographs | Test Setup Photos | 2016-09-19 | PDF 179.2 KB |
| Exhibit E Test Measurement Report per 2 1033 b6 | Test Report | 2016-09-19 | PDF 1.7 MB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2016-09-19 | PDF 279.8 KB |
| Exhibit B Block Diagram per 2 1033 b5 Metadata only | Block Diagram | PDF 70.5 KB | |
| Exhibit B Schematics per 2 1033 b5 Metadata only | Schematics | PDF 637.1 KB | |
| Exhibit B Operational Description per 2 1033 b4 Metadata only | Operational Description | PDF 1.7 MB | |
| Misc Parts List Exhibits Metadata only | Parts List/Tune Up Info | PDF 89.5 KB |
Application Information
| Application ID | 5FULYtNVhjmw7GpjnwEMzg== |
|---|---|
| Final Action Date | 2016-09-19 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0022872246 |
| Model | A5S4 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | Caterpillar CATBTNT |
| Responsible Party | Wesley D Breedlove, Certification Engineer, Breedlove_Wesley_D@cat.com  , 309-578-6057 |
| Technical Contact | Albert Kulicz, Caterpillar, Inc., kulicz_albert_j@cat.com , 3095786695 |
| Non-Technical Contact | James Deters, Caterpillar, Inc, deters_james_d@cat.com , 3095781509 |
| Test Firm | Kevin Halpin, Elite Electronic Engineering Inc., khalpin@elitetest.com  , 630-495-9770 |
| TCB Email | decrowder@elitetest.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
