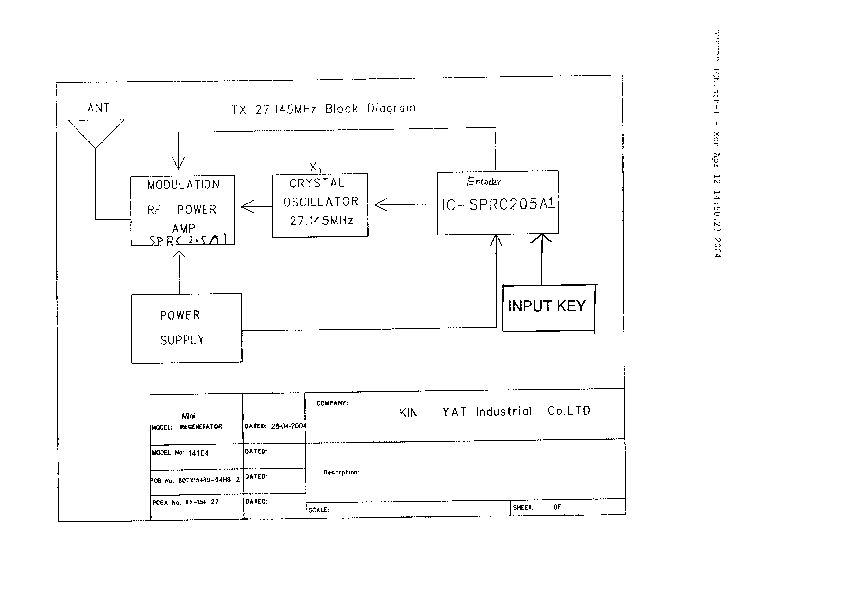

14104TX2701 RC Toy Block Diagram - FCC ID PQN14104TX2701

FCC ID PQN14104TX2701

Block Diagram

RC Toy

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN14104TX2701
Document ID448053
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassRC Toy
Product Code14104TX2701
Application ID2rCDbinqR3PlctpmtWuxew==
Application PurposeOriginal Equipment
Application Date2004-07-08
Frequency Range27.145 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-07-08
Available2004-07-08
Created2004-07-08
Modified2004-07-08
Pages1
File TypeAdobe Acrobat PDF
File Size24302
File SHA-256e5b2a6c76a4af41503cfcbc4983078fbd4a4b91e6697a0183f762fe16115f12d
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 448053
