20426RX2G4 ARH XSM AirHogs Hyperactives 5... - FCC ID PQN20426RX2G4

FCC ID PQN20426RX2G4

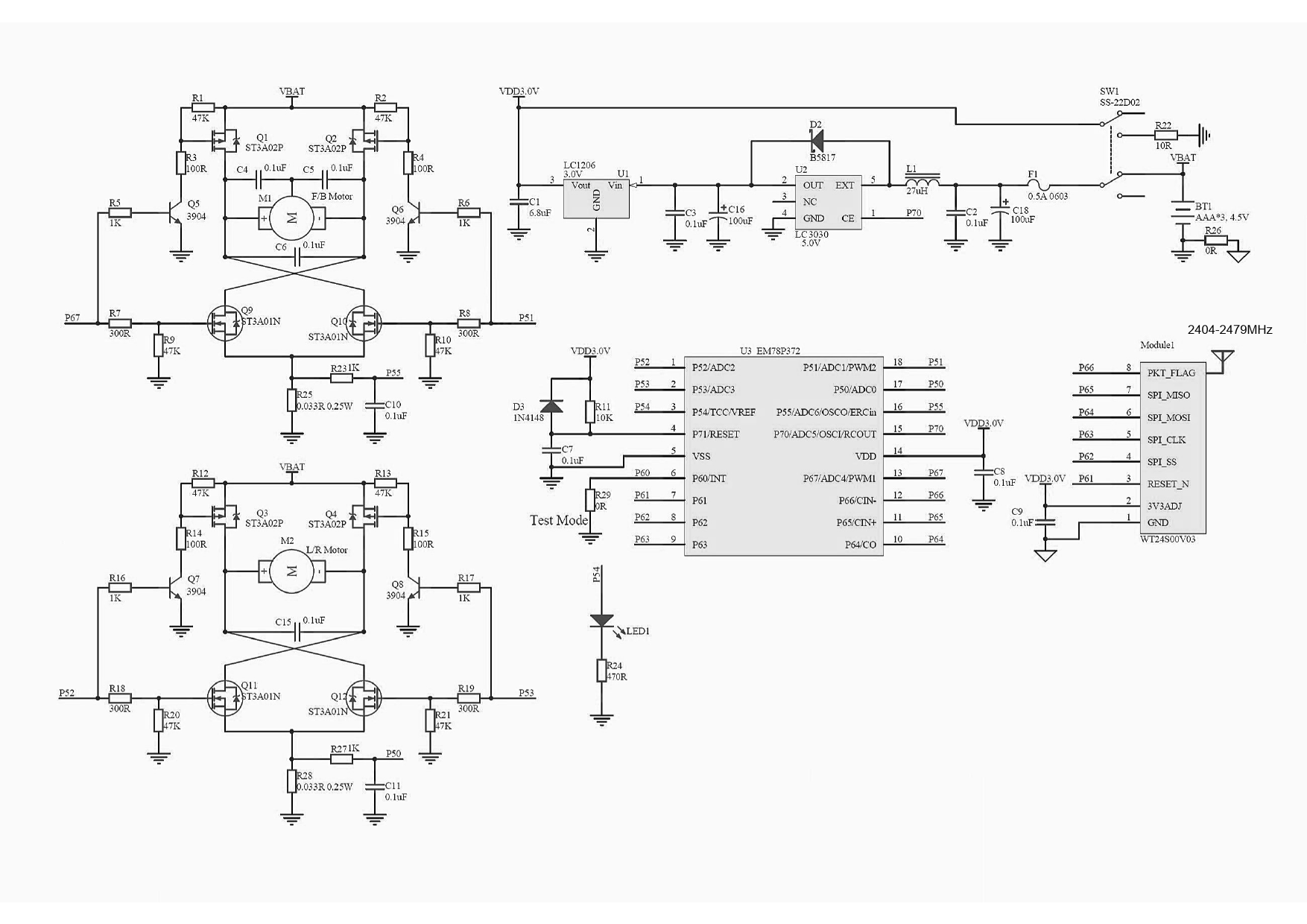

Circuit Diagram

ARH XSM AirHogs Hyperactives 5

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN20426RX2G4
Document ID1937448
Document TypeSchematics
DescriptionCircuit Diagram
Document Title<A5FEADB6ACDBA4F9>
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassARH XSM AirHogs Hyperactives 5
Product Code20426RX2G4
Application ID0oUkNT8u4ksvPfINJ51qcw==
Application PurposeOriginal Equipment
Application Date2013-04-11
Frequency Range2404-2479 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2013-04-11
Available2013-04-11
Created2013-04-03
Modified2013-04-08
Pages2
File TypeAdobe Acrobat PDF
File Size1097616
File SHA-256b67722aa91c3cabb0d0627c6da7b208d25ea6510ca99ade43460e34b604ce4e3
PDF Metadata AuthorCHSiu
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerGPL Ghostscript 8.15
FCC.gov SourcesFCC.gov 1937448
