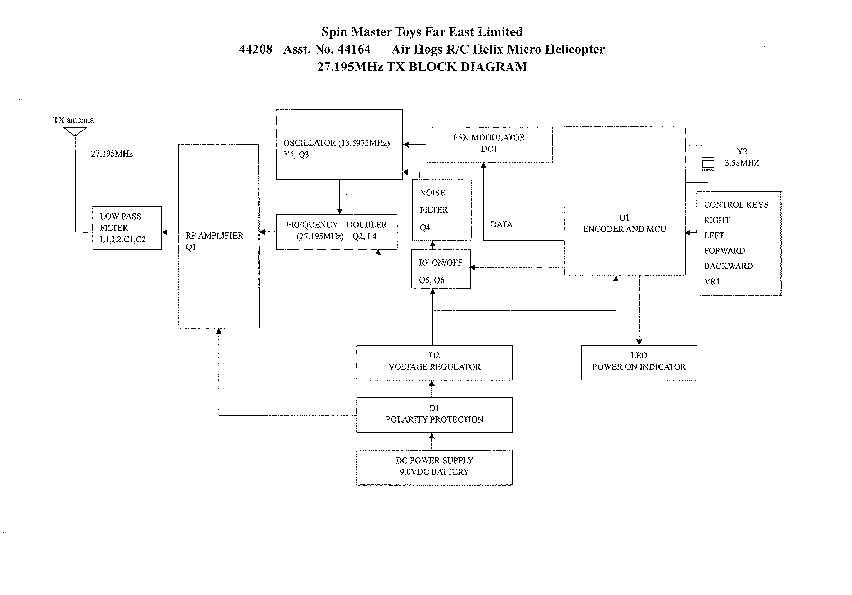

44164TX27195 RC Helicopter Block Diagram - FCC ID PQN44164TX27195

FCC ID PQN44164TX27195

Block Diagram

RC Helicopter

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN44164TX27195
Document ID667183
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassRC Helicopter
Product Code44164TX27195
Application IDLOFPkMa0150IF6QEqIDRcA==
Application PurposeOriginal Equipment
Application Date2006-06-12
Frequency Range27.195 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-06-12
Available2006-06-12
Created2006-06-06
Modified2006-06-06
Pages1
File TypeAdobe Acrobat PDF
File Size38643
File SHA-256b5a346086c7836869c94cb8daee822eb2204ae02b44921740d00a111cafd8f81
FCC.gov SourcesFCC.gov 667183
