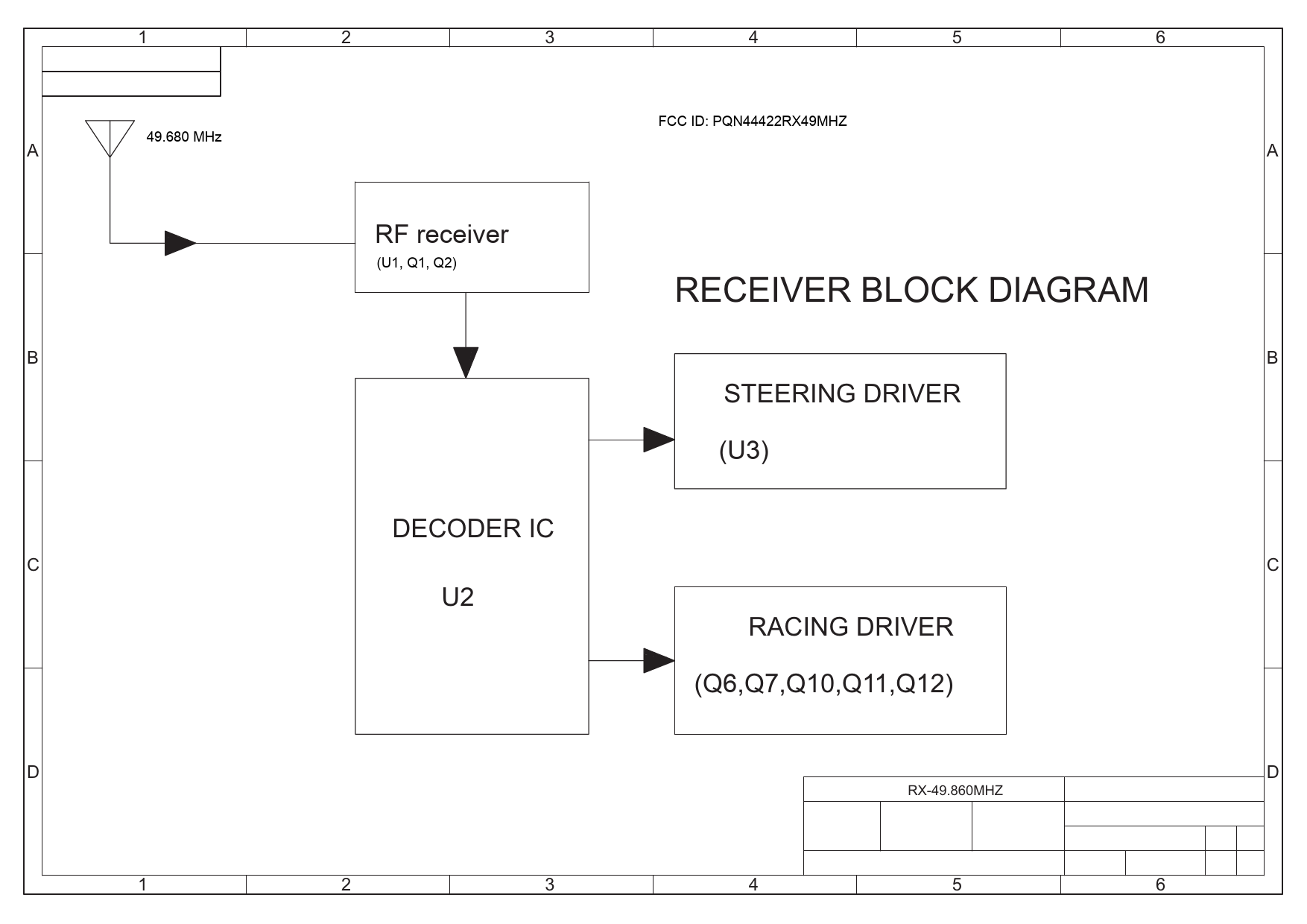

44422RX49MHZ NASCAR 1/24TH RF Block Diagram - FCC ID PQN44422RX49MHZ

FCC ID PQN44422RX49MHZ

Block Diagram

NASCAR 1/24TH RF

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN44422RX49MHZ
Document ID1560964
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitlePages from 43004SHU 49MRX-2.PDF
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassNASCAR 1/24TH RF
Product Code44422RX49MHZ
Application ID+6v9S0yLkv+BPOEY4eGF3w==
Application PurposeOriginal Equipment
Application Date2011-10-16
Frequency Range49.86 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2011-10-16
Available2011-10-16
Created2011-08-31
Modified2011-10-06
Pages1
File TypeAdobe Acrobat PDF
File Size243847
File SHA-256df23495f47d226789c3337e4e0e232a727fa2fceec59c5c54223bcaf28e10a17
PDF Metadata Authorherbertw
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 1560964
