44591RX2G4 ARH RDC Thunder Trax Ast (Date... - FCC ID PQN44591RX2G4

FCC ID PQN44591RX2G4

Block Diagram

ARH RDC Thunder Trax Ast (Date Code 60222AFS)

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN44591RX2G4
Document ID3224440
Document TypeBlock Diagram

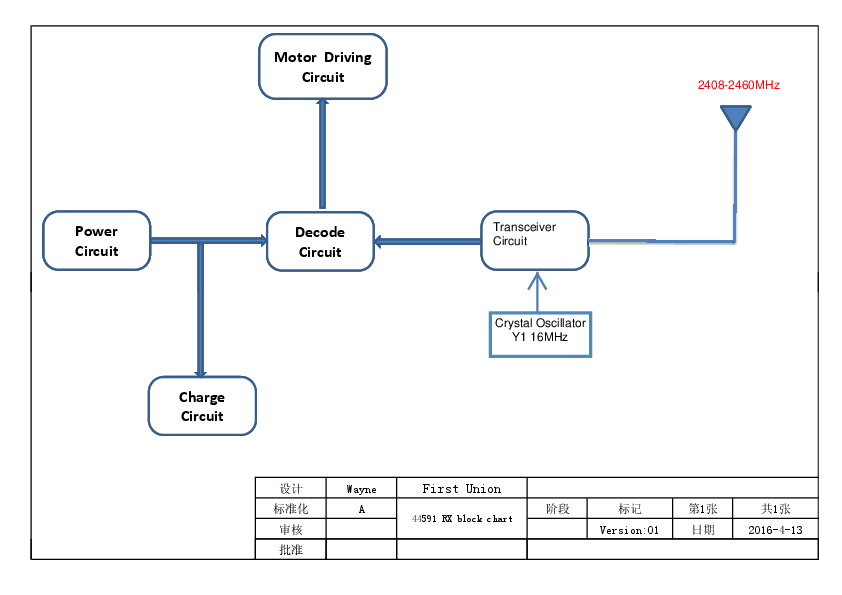

DescriptionBlock Diagram
Document Title44591 RX block chart.xls
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassARH RDC Thunder Trax Ast (Date Code 60222AFS)
Product Code44591RX2G4
Application IDmtqTnsznQtTGcNwbty0BIA==
Application PurposeOriginal Equipment
Application Date2016-12-12
Frequency Range2408-2460 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByTerry Chan Senior Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2016-12-12
Available2016-12-12
Created2016-04-13
Modified2016-11-01
Pages1
File TypeAdobe Acrobat PDF
File Size126618
File SHA-2567bc7925652f3952216ff4a3ce9c8a57ebe38c096106e4d54b4ac3c485702e5ca
PDF Metadata Authorwayne
PDF Metadata ProducerAcrobat Distiller 7.0.5 (Windows) wayne
FCC.gov SourcesFCC.gov 3224440
