66803RX2G41 MJC RDC 1 to 24 El Toro Loco... - FCC ID PQN66803RX2G41

FCC ID PQN66803RX2G41

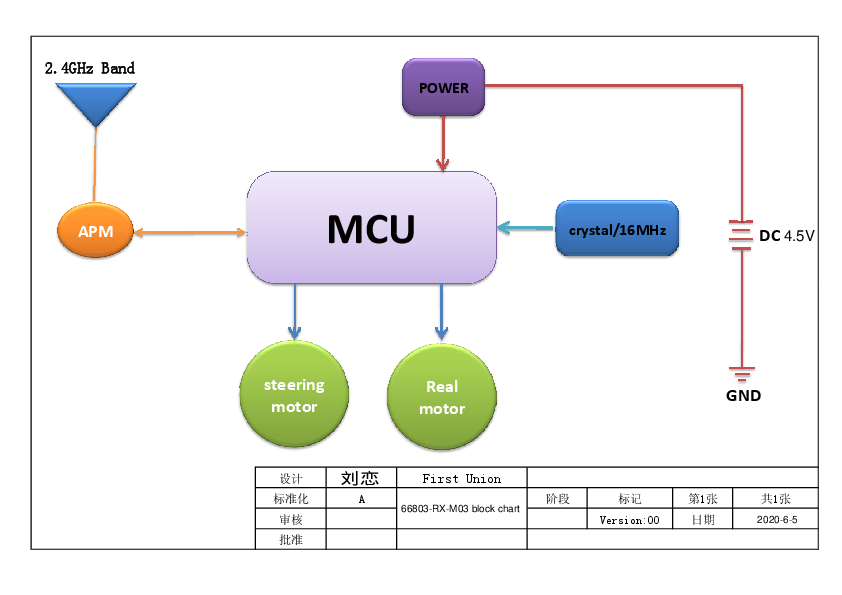

Block Diagram

MJC RDC 1 to 24 El Toro Loco

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN66803RX2G41
Document ID4822367
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title66801RX block chart.xls
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassMJC RDC 1 to 24 El Toro Loco
Product Code66803RX2G41
Application IDcLOLAUN44mT0eaY2kLyZMQ==
Application PurposeOriginal Equipment
Application Date2020-07-22
Frequency Range2411-2472 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Senior Lead Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2020-07-22
Available2020-07-22
Created2018-07-02
Modified2020-07-22
Pages1
File TypeAdobe Acrobat PDF
File Size445402
File SHA-256c71f48a1e1f314606f899aa8f86b63edee6aac5d9968deedf84fa7cdde28b4f9
PDF Metadata AuthorDrew
PDF Metadata ProducerDrew Acrobat Distiller 10.1.2 (Windows)
FCC.gov SourcesFCC.gov 4822367
