66803RX2G42 MJC 1to24 El Toro Loco Block... - FCC ID PQN66803RX2G42

FCC ID PQN66803RX2G42

Block Diagram

MJC 1to24 El Toro Loco

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN66803RX2G42
Document ID6061178

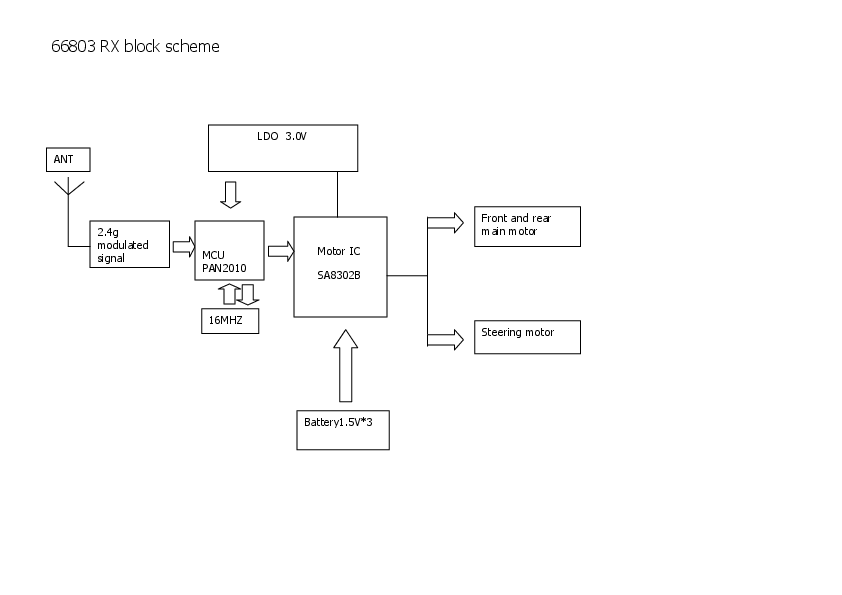

Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title66803RX€block€scheme€x
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassMJC 1to24 El Toro Loco
Product Code66803RX2G42
Application IDZm3hshAv9c37Dfkgluvn0g==
Application PurposeOriginal Equipment
Application Date2022-08-17
Frequency Range2411-2472 MHz
FRN0018197608
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Assistant Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2022-08-17
Available2022-08-17
Created2022-07-28
Modified2022-08-12
Pages1
File TypeAdobe Acrobat PDF
File Size79607
File SHA-2562fe03d33af4cfa4500cc97ff963ade516887da34413fc594c8fee460d1e08dcd
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAdministrator Microsoft: Print To PDF
FCC.gov SourcesFCC.gov 6061178
