66813TX2G4 MJC RC 1to64th Grave Digger... - FCC ID PQN66813TX2G4

FCC ID PQN66813TX2G4

Block Diagram

MJC RC 1to64th Grave Digger

by Spin Master Toys Far East Ltd.

Document preview loads when visible.

Document Details

FCC IDPQN66813TX2G4
Document ID6795904

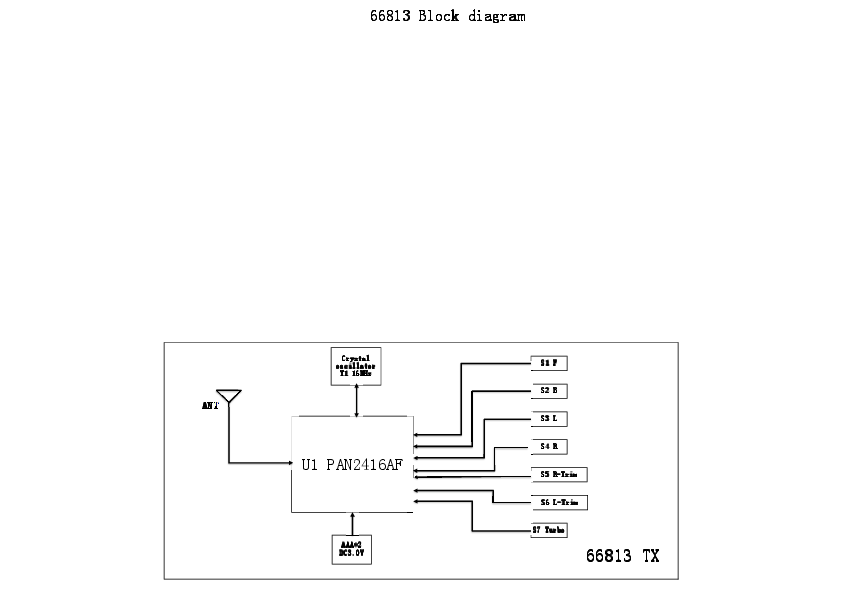

Document TypeBlock Diagram
DescriptionBlock Diagram
Document Title<3636383133B7BDBFF2CDBC2E786C73>
ApplicantSpin Master Toys Far East Ltd.
Equipment ClassMJC RC 1to64th Grave Digger
Product Code66813TX2G4
Application ID9mJHDr59nLoR69izUoev4Q==
Application PurposeOriginal Equipment
Application Date2023-09-10
Frequency Range2420-2465 MHz
FRN0034107417
Test FirmIntertek Testing Services Hong Kong Ltd.
Certified ByKenneth Wong Assistant Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2023-09-10
Available2023-09-10
Created2023-05-30
Modified2023-07-04
Pages1
File TypeAdobe Acrobat PDF
File Size36268
File SHA-2568a2f80107d84ccb05a6e09eb5c8a5c498edb1ea8284af0d4e3441c1b5fc299e3
PDF Metadata Authorzhi
PDF Metadata ProducerGIRDAC zhi
FCC.gov SourcesFCC.gov 6795904
