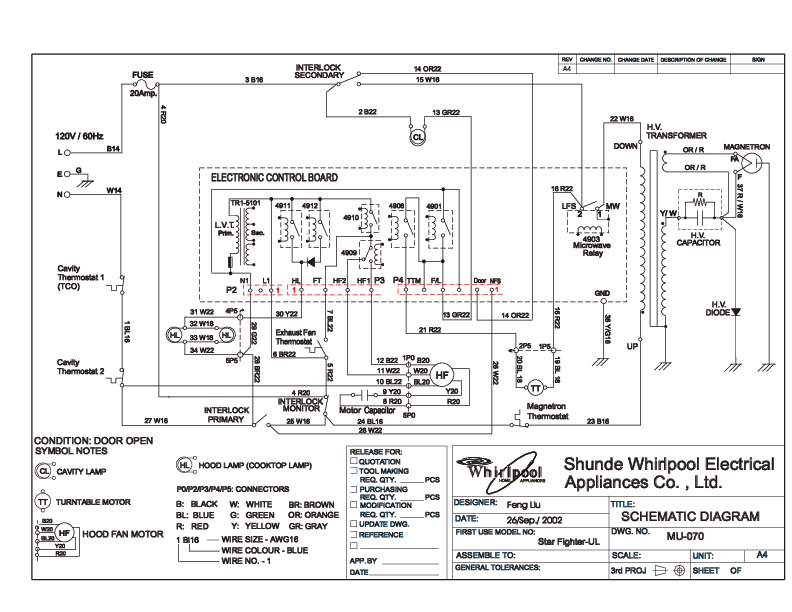

6261X Microwave Oven Schematics - FCC ID PR46261X

FCC ID PR46261X

schematics

Microwave Oven

by Whirlpool Microwave Products Development Limited.

Document preview loads when visible.

Document Details

FCC IDPR46261X
Document ID283294
Document TypeSchematics
Descriptionschematics
Document TitleMU-070.cdr
ApplicantWhirlpool Microwave Products Development Limited.
Equipment ClassMicrowave Oven
Product Code6261X
Application IDwlNNqNQiaQxySX+z+cNjsw==
Application PurposeOriginal Equipment
Application Date2002-11-12
Frequency Range2450 MHz
FRN0012635595
Test FirmHong Kong Standards & Testing Cen.
Certified ByChris Harvey Director, EMC Laboratory
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-11-12
Available2002-11-12
Created2002-09-26
Modified2002-09-26
Pages1
File TypeAdobe Acrobat PDF
File Size59558
File SHA-25655b4634ae713689a2c05c8d9d61321a4e3c412ef9937332776fdc338b3ebdc2b
PDF Metadata AuthorWhirlpool
PDF Metadata ProducerCorel PDF Engine Version 10.427 CorelDRAW Version 10.0
FCC.gov SourcesFCC.gov 283294
