FCC ID PR4RED519X
Microwave Oven
by Whirlpool Microwave Products Development Limited.
Grantee Code: PR4 Product Code: RED519X
Latest application date: 2025-12-29
Device Images
FCC ID Device Details
| FCC ID | PR4RED519X |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PR4 |
| Product Code | RED519X |
| Applicant Business | Whirlpool Microwave Products Development Limited. |
| Related Domains |  whirlpool.com |
| Equipment Class | Microwave Oven |
| Test Firm | Bay Area Compliance Laboratories Corp (Shenzhen) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2450 MHz | Class II permissive change or modification of presently authorized equipment | 2025-12-29 |
| 2450 MHz | Class II permissive change or modification of presently authorized equipment | 2022-06-21 |
| 2450 MHz | Original Equipment | 2015-12-07 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2025-12-29 | PDF 482.3 KB |
| User manual | Users Manual | 2022-06-21 | PDF 497.8 KB |
| Users Manual | Users Manual | 2015-12-07 | PDF 228.6 KB |
| Internal Photos | Internal Photos | 2025-12-29 | PDF 2.4 MB |
| Internal Photos | Internal Photos | 2022-06-21 | PDF 3.1 MB |
| Int Photos | Internal Photos | 2015-12-07 | PDF 1.7 MB |

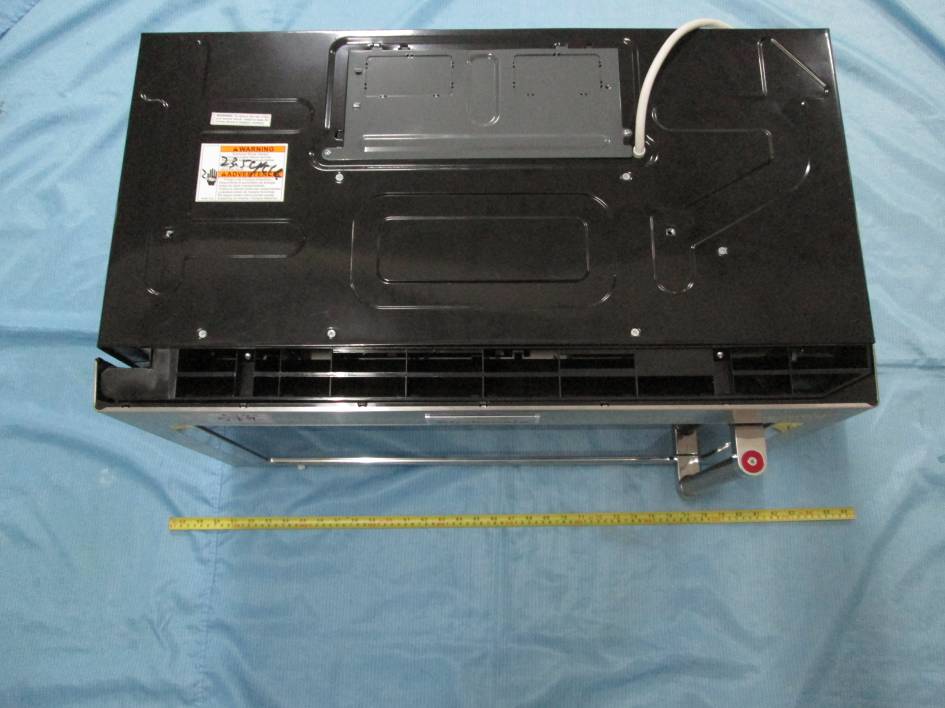

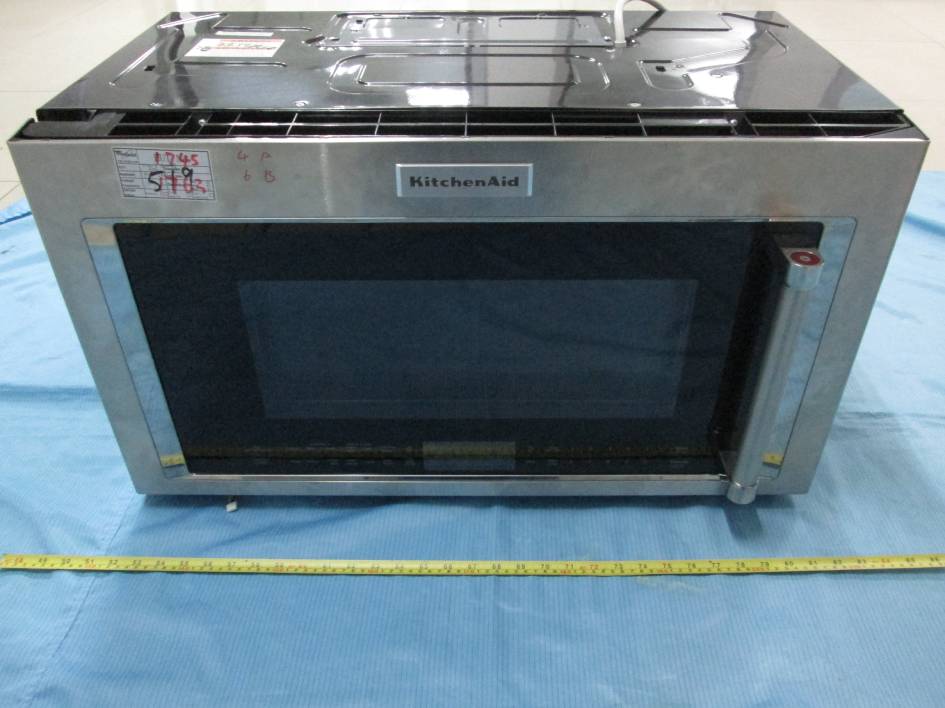

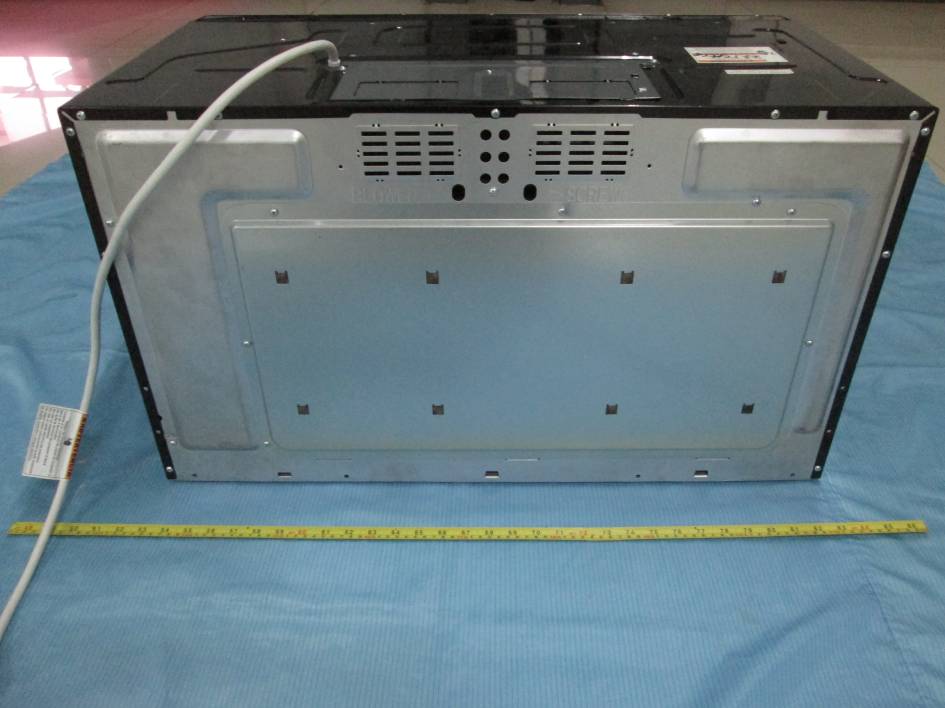

| External Photos | External Photos | 2025-12-29 | PDF 2.8 MB |
| External Photos | External Photos | 2022-06-21 | PDF 330.5 KB |
| Ext Photos | External Photos | 2015-12-07 | PDF 441.9 KB |
| Label and Label Location | ID Label/Location Info | 2025-12-29 | PDF 1,023.7 KB |
| ID Label and Label Location | ID Label/Location Info | 2022-06-21 | PDF 471.9 KB |
| FCC Label | ID Label/Location Info | 2015-12-07 | PDF 123.6 KB |

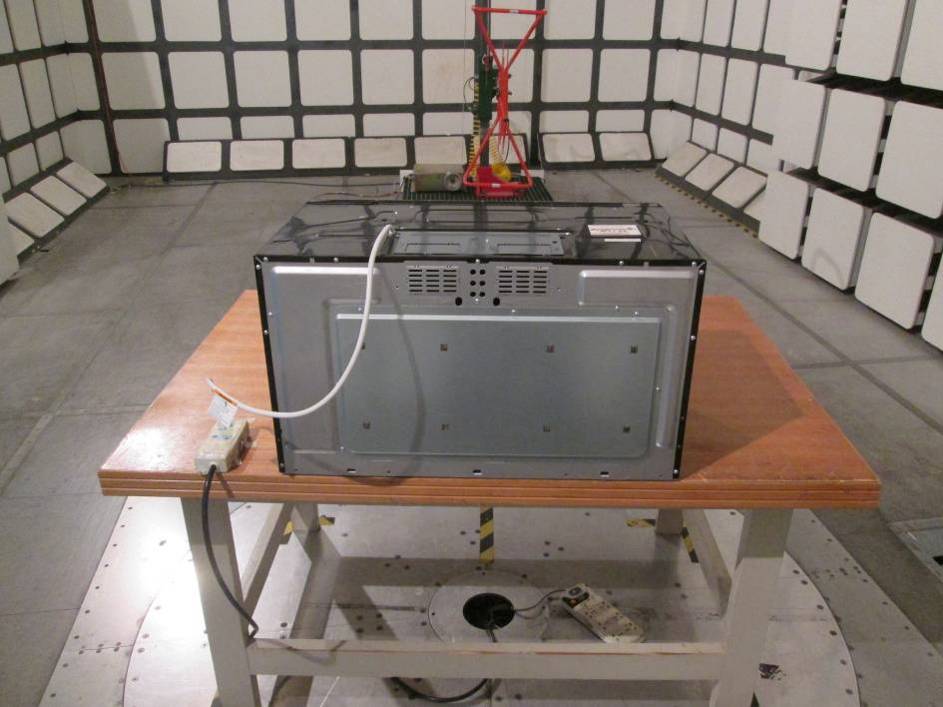

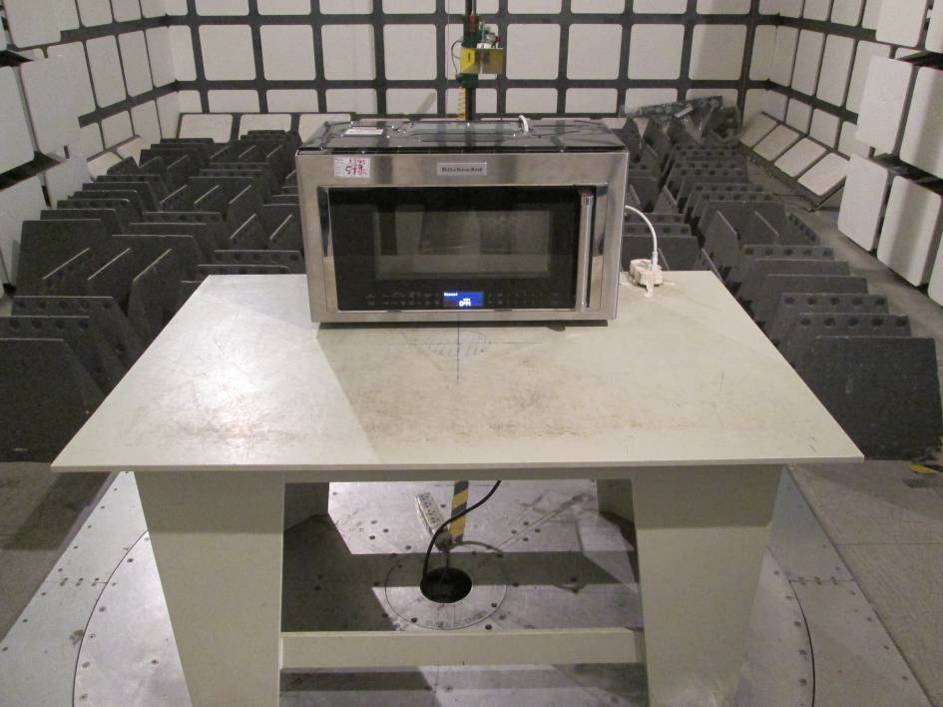

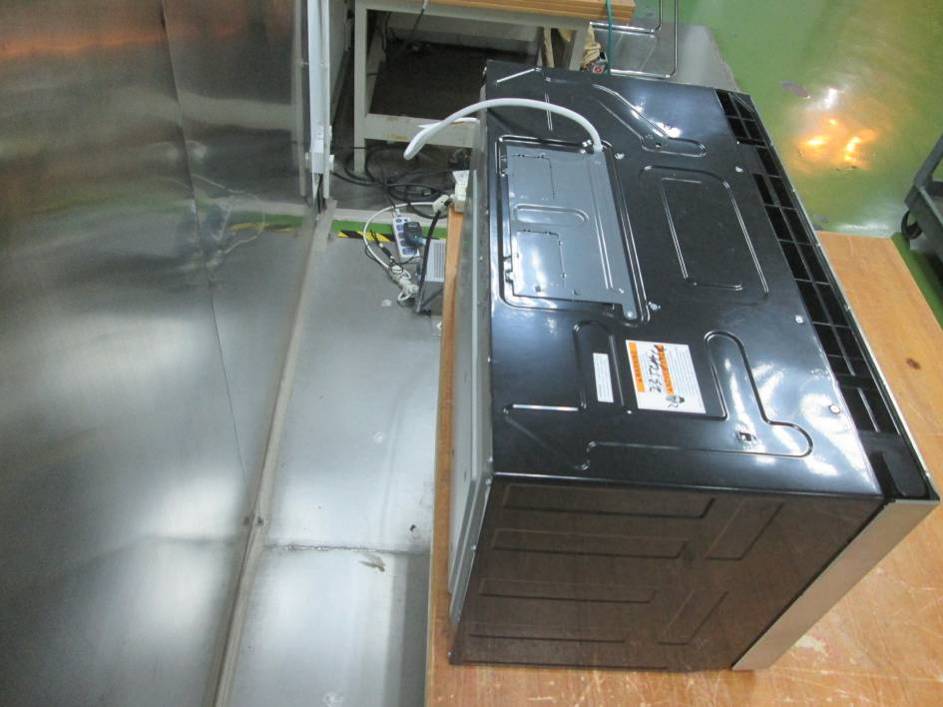

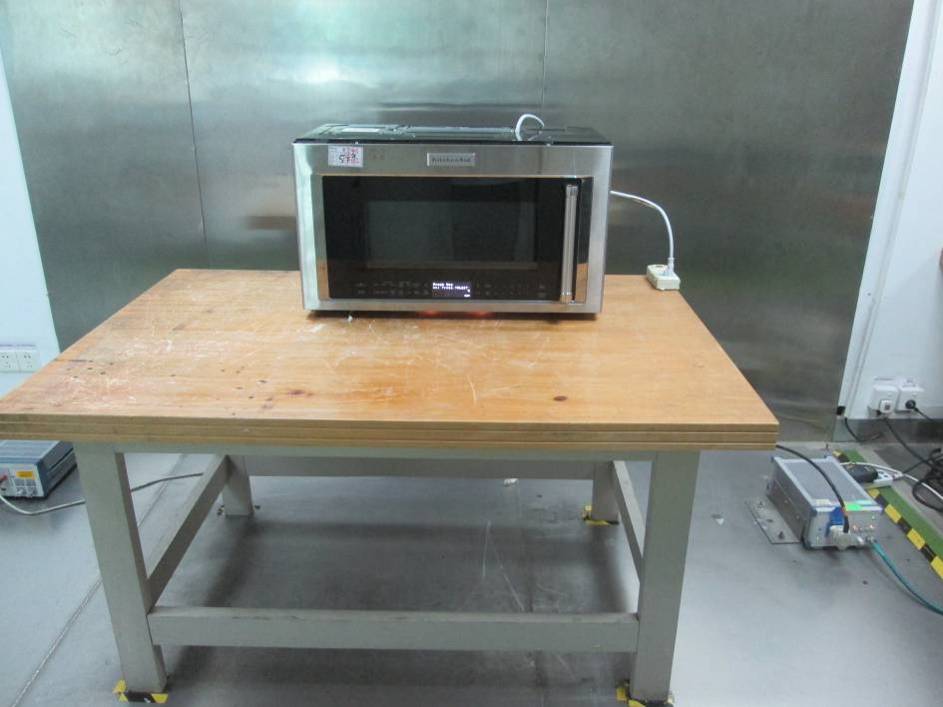

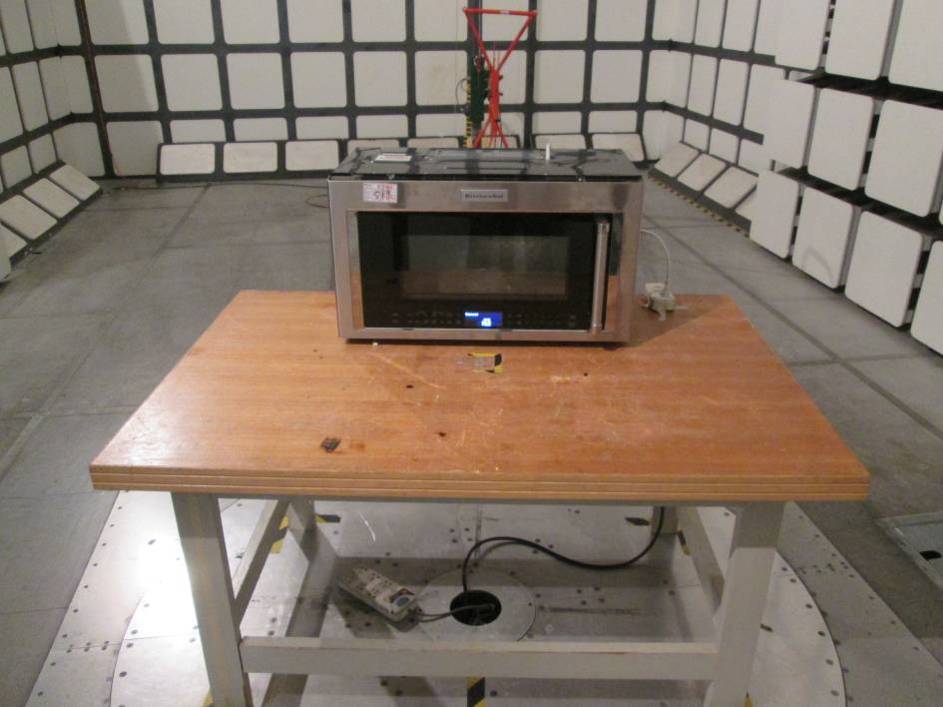

| Test Setup Photos | Test Setup Photos | 2025-12-29 | PDF 894.8 KB |
| Test Setup Photos | Test Setup Photos | 2022-06-21 | PDF 512.3 KB |
| Setup Photos | Test Setup Photos | 2015-12-07 | PDF 401.5 KB |
| Test Report | Test Report | 2025-12-29 | PDF 1.3 MB |
| Test Report | Test Report | 2022-06-21 | PDF 2 MB |
| Test Report | Test Report | 2015-12-07 | PDF 404.4 KB |
| 2.911(d)(5)(i) Attestation Statement | Attestation Statements | 2025-12-29 | PDF 36.3 KB |
| 2.911(d)(5)(ii) Attestation Statement | Attestation Statements | 2025-12-29 | PDF 37.7 KB |
| US Agent Attestation Letter | Attestation Statements | 2025-12-29 | PDF 38.9 KB |
| DoS Letter | Cover Letter(s) | 2025-12-29 | PDF 40.7 KB |
| FCC Agent Authorization Letter | Cover Letter(s) | 2025-12-29 | PDF 14 KB |
| FCC Long Term Confidential Request | Cover Letter(s) | 2025-12-29 | PDF 40.6 KB |
| Permissive Change Declaration Letter | Cover Letter(s) | 2025-12-29 | PDF 455.4 KB |
| C2PC Declaration Letter | Cover Letter(s) | 2022-06-21 | PDF 60.7 KB |
| FCC Long Term Confidential Authorization | Cover Letter(s) | 2022-06-21 | PDF 98.3 KB |
| POA | Cover Letter(s) | 2022-06-21 | PDF 78.7 KB |
| Confidentiality Letter | Cover Letter(s) | 2015-12-07 | PDF 105.3 KB |
| POA | Cover Letter(s) | 2015-12-07 | PDF 74.3 KB |
| RF Exposure Information | RF Exposure Info | 2025-12-29 | PDF 258.1 KB |
| Block Diagram Metadata only | Block Diagram | PDF 92.3 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 50.3 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 13.4 KB | |
| Schematics Metadata only | Schematics | PDF 448.3 KB | |
| Schematics Metadata only | Schematics | PDF 318.7 KB | |
| Schematics Metadata only | Schematics | PDF 202.4 KB | |
| Operation Description Metadata only | Operational Description | PDF 49 KB | |
| Operation Description Metadata only | Operational Description | PDF 47.1 KB | |
| Operation Description Metadata only | Operational Description | PDF 42.6 KB |
Application Information
| Application ID | HG8n/QDPc8e7R82pjbEp+g== |
|---|---|
| Final Action Date | 2025-12-29 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0012635595 |
| Model | RED519X |
| Frequency Range | 2450 MHz |
| Equipment Class | 8CC - Part 18 Consumer Device |
| Device Description | Microwave Oven |
| Responsible Party | Bobo Lin, Bobo_Lin@Whirlpool.com , 8675583811688 |
| Non-Technical Contact | Cammie Rhodes, Whirlpool Corporation, cammie_k_rhodes@whirlpool.com , 001 (269) 923-5068 |
| Test Firm | Nana Liu, Bay Area Compliance Laboratories Corp (Shenzhen), qa.sz@baclcorp.com  , 86-755-33320018 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| HG8n/QDPc8e7R82pjbEp+g== | 2025-12-29 | Class II permissive change or modification of presently authorized equipment |
| ZiGDep5WDw0SiCrJzR2uCw== | 2022-06-21 | Class II permissive change or modification of presently authorized equipment |
| LXU7m20YwwnBaUAFar5Lxg== | 2015-12-07 | Original Equipment |
Equipment Authorization
| Frequency | Rules |
|---|---|
| 2450 MHz | 18 |
Grants
TCB Grant - Application ZiGDep5WDw0SiCrJzR2uCw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 06/21/2022 Application Dated: 06/21/2022 |
| Whirlpool Microwave Products Development Limited. |
| 17th Fl, Elite Centre |
| 22 Hung To Rd |
| Kwun Tong, 852 Hong Kong |
| Attention: Bobo Lin , Approbation Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PR4RED519X |
| Name of Grantee: | Whirlpool Microwave Products Development Limited. |
| Equipment Class: | Part 18 Consumer Device |
| Notes: | Microwave Oven |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 18 | 2450.0 - 2450.0 |
| Class II Permissive Change described in this filing. Magnetron: LG 2M246. |
EAS Grant - Application ZiGDep5WDw0SiCrJzR2uCw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Whirlpool Microwave Products Development Limited. 17th Fl, Elite Centre 22 Hung To Rd Kwun Tong, 852 Hong Kong |
Date of Grant: 06/21/2022 Application Dated: 06/21/2022 |
| Attention: Bobo Lin , Approbation Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PR4RED519X |
| Name of Grantee: | Whirlpool Microwave Products Development Limited. |
| Equipment Class: | Part 18 Consumer Device |
| Notes: | Microwave Oven |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 18 | 2450.0 - 2450.0 |
| Class II Permissive Change described in this filing. Magnetron: LG 2M246. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratory Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/07/2015 Application Dated: 12/07/2015 |
| Whirlpool Microwave Products Development Limited. |
| 16/F, Paliburg Plaza |
| 68 Yee Woo Street |
| Causeway Bay, 852 Hong Kong |
| Attention: Johnny Cheung , Approbation Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PR4RED519X |
| Name of Grantee: | Whirlpool Microwave Products Development Limited. |
| Equipment Class: | Part 18 Consumer Device |
| Notes: | Microwave Oven |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 18 | 2450.0 - 2450.0 |
| Magnetron: LG 2M246. |
EAS Grant - Application LXU7m20YwwnBaUAFar5Lxg==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Whirlpool Microwave Products Development Limited. 16/F, Paliburg Plaza 68 Yee Woo Street Causeway Bay, 852 Hong Kong |
Date of Grant: 12/07/2015 Application Dated: 12/07/2015 |
| Attention: Johnny Cheung , Approbation Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PR4RED519X |
| Name of Grantee: | Whirlpool Microwave Products Development Limited. |
| Equipment Class: | Part 18 Consumer Device |
| Notes: | Microwave Oven |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 18 | 2450.0 - 2450.0 |
| Magnetron: LG 2M246. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 |
Date of Grant: 12/29/2025 Application Dated: 12/29/2025 |
| Whirlpool Microwave Products Development Limited. |
| 17th Fl, Elite Centre |
| 22 Hung To Rd |
| Kwun Tong, 852 Hong Kong |
| Attention: Bobo Lin , Approbation Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PR4RED519X |
| Name of Grantee: | Whirlpool Microwave Products Development Limited. |
| Equipment Class: | Part 18 Consumer Device |
| Notes: | Microwave Oven |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 18 | 2450.0 - 2450.0 |
| Class II Permissive Change described in this filing. |
