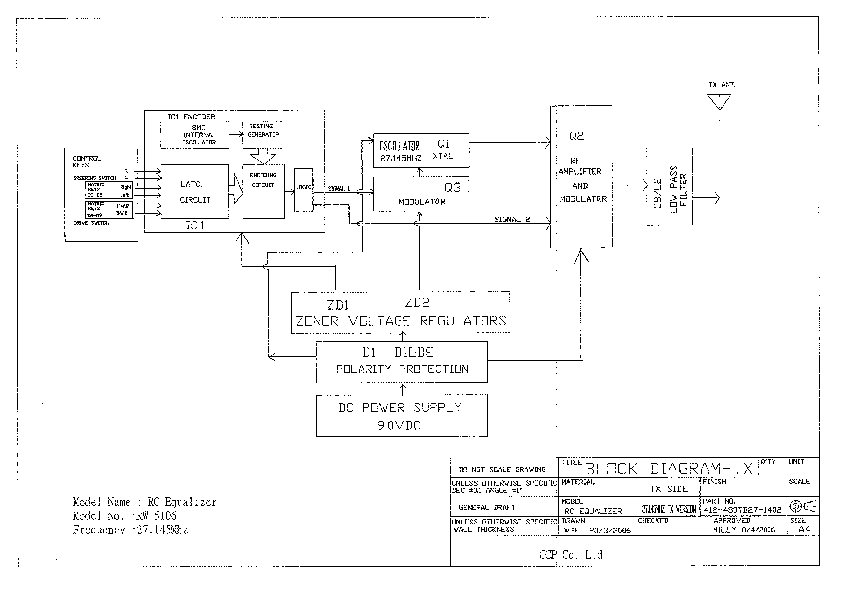

5106TX27 RC Car Block Diagram - FCC ID PSN5106-TX27

FCC ID PSN5106-TX27

Block Diagram

RC Car

by CCP Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPSN5106-TX27
Document ID664501
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantCCP Co., Ltd.
Equipment ClassRC Car
Product Code5106TX27
Application IDoKlfrGI2/8PcFXj2apfJ/Q==
Application PurposeOriginal Equipment
Application Date2006-06-04
Frequency Range27.145 MHz
FRN0022844765
Test FirmIntertek Testing Services Hong Kong
Certified ByAnthony Chan Supervisor
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-06-04
Available2006-06-04
Created2006-05-19
Modified2006-05-19
Pages1
File TypeAdobe Acrobat PDF
File Size63402
File SHA-256fe3c9a3b01a18413fbfc3c23a483792d8abc94e4c8f3e77aaa1c159a15ccb756
FCC.gov SourcesFCC.gov 664501
