MSD03311989 1:32 Scale R/C Nascar Car... - FCC ID PV5MSD03311989

FCC ID PV5MSD03311989

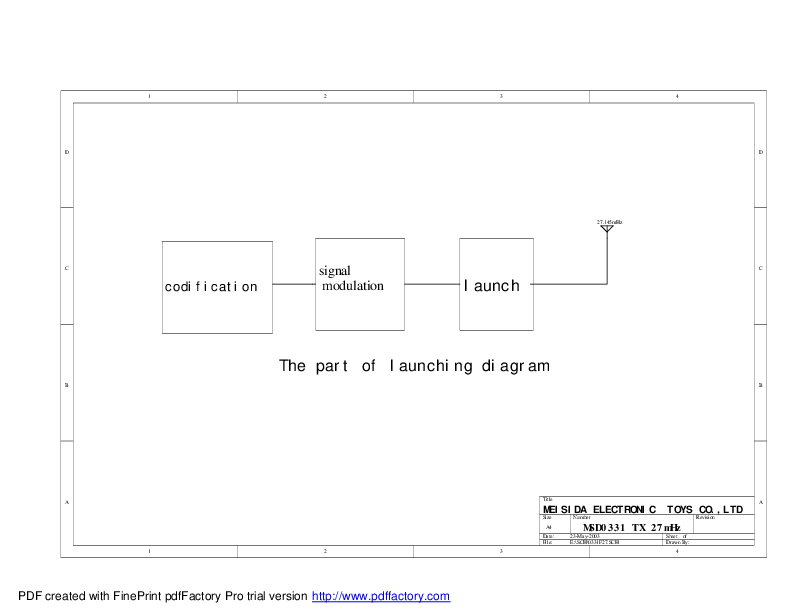

Block Diagram

1:32 Scale R/C Nascar Car

by Meisida Electronic Toys Co., Ltd

Document preview loads when visible.

Document Details

FCC IDPV5MSD03311989
Document ID328891
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleProtel
ApplicantMeisida Electronic Toys Co., Ltd
Equipment Class1:32 Scale R/C Nascar Car
Product CodeMSD03311989
Application ID5p60toMW5GpFN/Y2/UMmrA==
Application PurposeOriginal Equipment
Application Date2003-05-26
Frequency Range26.96-27.28 MHz
FRN0004265807
Test FirmBay Area Compliance Laboratory Corp. (Shenzhen)
Certified ByHeng Yi Lu General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-05-29
Available2003-05-26
Created2003-05-23
Modified2003-05-29
Pages1
File TypeAdobe Acrobat PDF
File Size11018
File SHA-256a2d2e2268fb5770cfeded05e83d92776759713d0cf2c822141a29153a78ca2dc
PDF Metadata AuthorAdministrator
PDF Metadata ProducerpdfFactory Pro v1.57 (Windows 2000 Chinese) Administrator
FCC.gov SourcesFCC.gov 328891
