VHF30HHM HAND-HELD WIRELESS MICROPHONE... - FCC ID PVDVHF-30HHM

FCC ID PVDVHF-30HHM

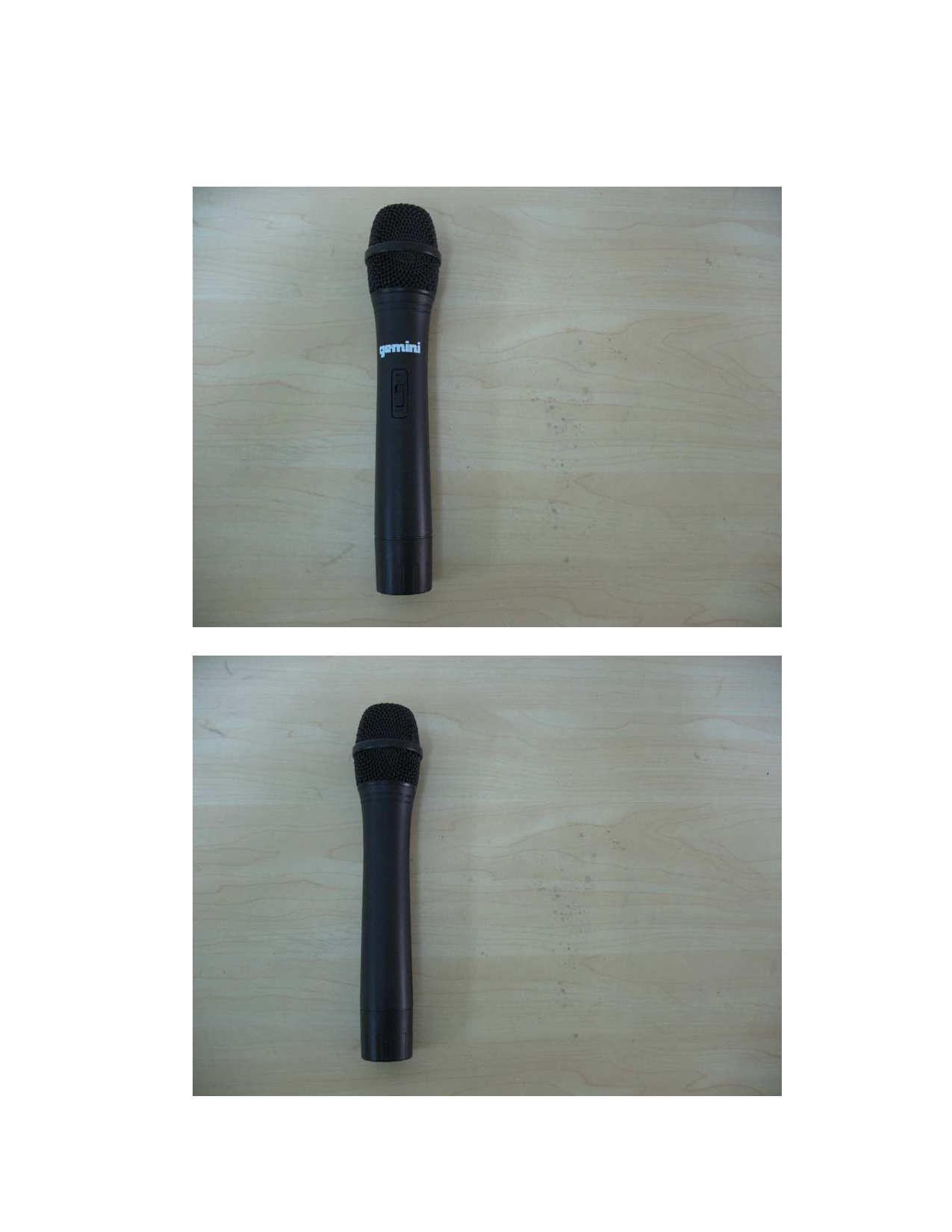

EXTERNAL PHOTOS

HAND-HELD WIRELESS MICROPHONE

by Shenzhen JWL Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDPVDVHF-30HHM
Document ID1058327
Document TypeExternal Photos
DescriptionEXTERNAL PHOTOS
Document TitleFCC Test Report for Part 74 for VHF-30HHM
ApplicantShenzhen JWL Electronics Co., Ltd.
Equipment ClassHAND-HELD WIRELESS MICROPHONE
Product CodeVHF30HHM
Application IDbhHek7iYo+RwMNbLXMBsQg==
Application PurposeOriginal Equipment
Application Date2009-01-19
Frequency Range174.1-215.6 MHz
FRN0018423442
Test FirmWorldStandardizationCertification&Testing; CO.,LTD
Certified ByYOU XIAOJUN MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2009-01-19
Available2009-01-19
Created2009-01-15
Modified2009-01-15
Pages1
File TypeAdobe Acrobat PDF
File Size58671
File SHA-25614b8a8e7285efcd4a3578ade2005cfcfb19ae76595a6fa53b183a2fe47113449
PDF Metadata Authorassu
PDF Metadata CreatorPScript5.dll Version 5.2.2
PDF Metadata ProducerAcrobat Distiller 8.1.0 (Windows)
FCC.gov SourcesFCC.gov 1058327
