JT49RX99002 7.5" HEAT Block Diagram - FCC ID PWYJT49RX99002

FCC ID PWYJT49RX99002

Block Diagram

7.5" HEAT

by Jada Toys Company Limited

Document preview loads when visible.

Document Details

FCC IDPWYJT49RX99002
Document ID1288545
Document TypeBlock Diagram
DescriptionBlock Diagram

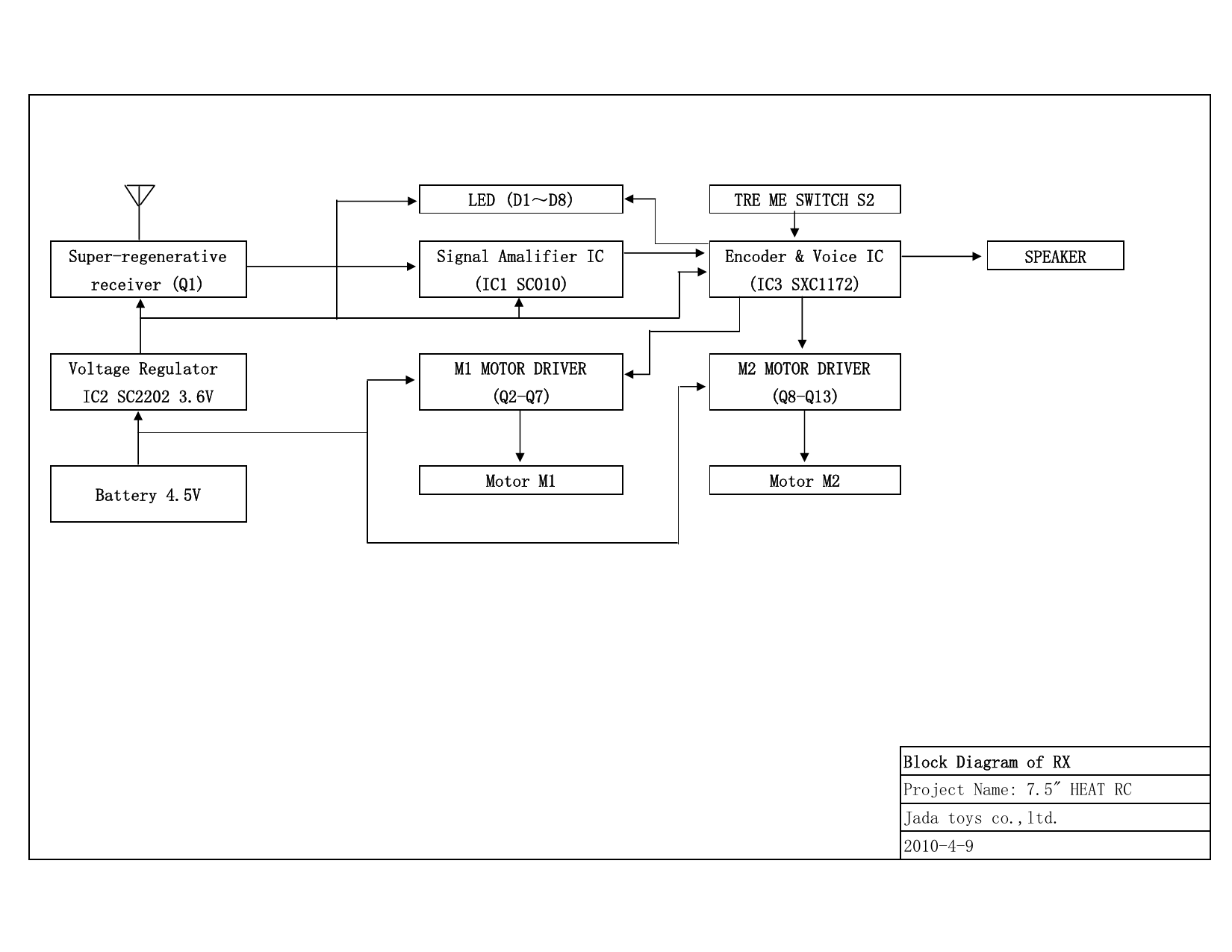

Document TitleRX BLOCK(49M)
ApplicantJada Toys Company Limited
Equipment Class7.5" HEAT
Product CodeJT49RX99002
Application IDcoc7OweDJl/z0pbiN+5qDw==
Application PurposeOriginal Equipment
Application Date2010-05-31
Frequency Range49.86 MHz
FRN0021694799
Test FirmCMA Industrial Development Foundations Limited
Certified ByAndrew Wong
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2010-05-31
Available2010-05-31
Created2010-05-25
Modified2010-05-25
Pages1
File TypeAdobe Acrobat PDF
File Size20459
File SHA-2568754ffbdd0a0f2638dc122b8a82ac5e589d01a9dc983a34eb40b04ea391d67d7
PDF Metadata AuthorAdministrator
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows)
FCC.gov SourcesFCC.gov 1288545
