FCC ID PYARM-1116
GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC
by Microsoft Corporation
Grantee Code: PYA Product Code: RM1116
Latest application date: 2015-10-27
Device Images
FCC ID Device Details
| FCC ID | PYARM-1116 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | PYA |
| Product Code | RM1116 |
| Applicant Business | Microsoft Corporation 🇺🇸 |
| Related Domains |  microsoft.com |
| Equipment Class | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Test Firm | TCC Microsoft Salo |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-10-27 |
| 704-711 MHz | Original Equipment | 2015-10-27 |
| 2402-2480 MHz | Original Equipment | 2015-10-27 |
| 13.56 MHz | Original Equipment | 2015-10-27 |
| 5180-5240 MHz | Original Equipment | 2015-10-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Guide | Users Manual | 2015-10-27 | PDF 809.5 KB |

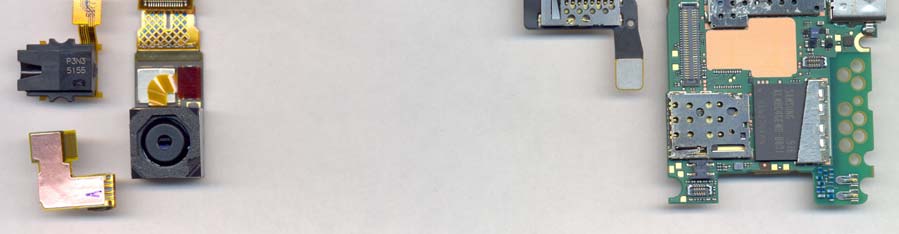

| Internal Photos | Internal Photos | 2015-10-27 | PDF 584.5 KB |
| External Photos | External Photos | 2015-10-27 | PDF 160.9 KB |
| eLabel Information | ID Label/Location Info | 2015-10-27 | PDF 51.4 KB |

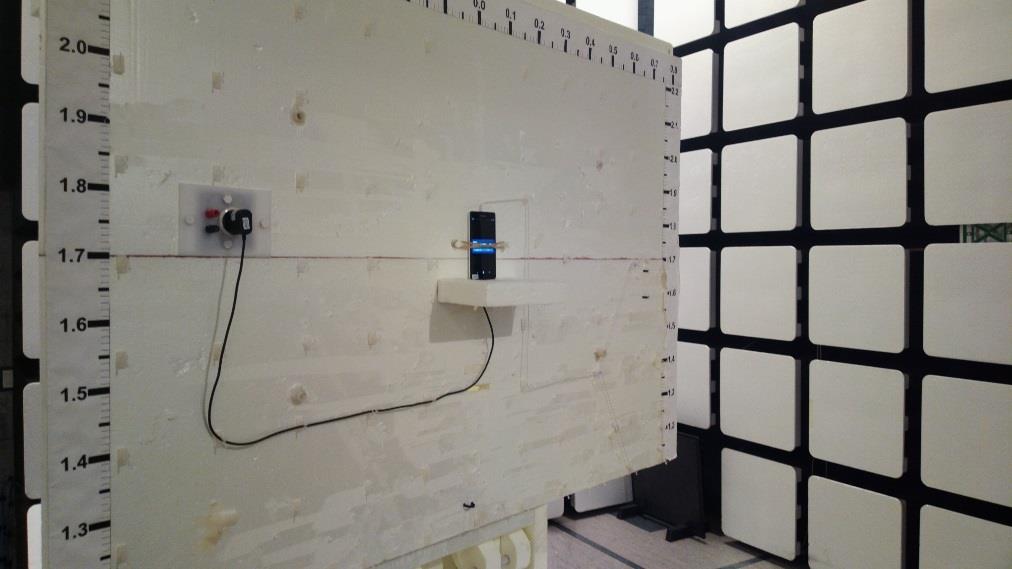

| Test Setup Photos | Test Setup Photos | 2015-10-27 | PDF 311.5 KB |
| Test Setup Photos HAC | Test Setup Photos | 2015-10-27 | PDF 221.4 KB |
| Test Setup Photos SAR | Test Setup Photos | 2015-10-27 | PDF 382.7 KB |
| HAC Report RF | Test Report | 2015-10-27 | PDF 1.2 MB |
| HAC Report T-Coil | Test Report | 2015-10-27 | PDF 622.2 KB |
| Test Report | Test Report | 2015-10-27 | PDF 1.6 MB |
| Test Report | Test Report | 2015-10-27 | PDF 1.5 MB |
| Test Report 1 | Test Report | 2015-10-27 | PDF 1.3 MB |
| Test Report 2 | Test Report | 2015-10-27 | PDF 3.7 MB |
| Test Report Antenna 1 | Test Report | 2015-10-27 | PDF 511.7 KB |
| Test Report Antenna 2 | Test Report | 2015-10-27 | PDF 506.4 KB |
| Test Report BTLE Conducted | Test Report | 2015-10-27 | PDF 733 KB |
| Test Report BTLE Radiated | Test Report | 2015-10-27 | PDF 1.3 MB |
| Test Report Computer Peripheral 1 | Test Report | 2015-10-27 | PDF 1.4 MB |
| Test Report Computer Peripheral 2 | Test Report | 2015-10-27 | PDF 1.3 MB |
| Test Report Conducted | Test Report | 2015-10-27 | PDF 2.2 MB |
| Test Report Conducted | Test Report | 2015-10-27 | PDF 3.5 MB |
| Test Report DFS | Test Report | 2015-10-27 | PDF 1.3 MB |
| Test Report LTE7 | Test Report | 2015-10-27 | PDF 407.4 KB |
| Test Report MIMO | Test Report | 2015-10-27 | PDF 4.8 MB |
| Test Report Radiated | Test Report | 2015-10-27 | PDF 447.1 KB |
| Test Report WLAN Conducted 1 | Test Report | 2015-10-27 | PDF 2.7 MB |
| Test Report WLAN Conducted 2 | Test Report | 2015-10-27 | PDF 1.3 MB |
| Test Report WLAN MIMO | Test Report | 2015-10-27 | PDF 2.3 MB |
| Test Report WLAN Radiated | Test Report | 2015-10-27 | PDF 1.5 MB |
| Test Report WLAN SW Cfg Ctrl | Test Report | 2015-10-27 | PDF 1.4 MB |
| LTE Rel 10 Attestation | Attestation Statements | 2015-10-27 | PDF 28.9 KB |
| Agent Authorization | Cover Letter(s) | 2015-10-27 | PDF 1.7 MB |
| Request for Confidentiality | Cover Letter(s) | 2015-10-27 | PDF 122.5 KB |
| Test Data Re-Use Justification | Cover Letter(s) | 2015-10-27 | PDF 41.1 KB |
| SAR Report | RF Exposure Info | 2015-10-27 | PDF 4.8 MB |
| Block Diagram Metadata only | Block Diagram | PDF 100.4 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 116.9 KB | |
| Block Diagram Metadata only | Block Diagram | PDF 291.1 KB | |
| Schematics Metadata only | Schematics | PDF 4.4 MB | |
| KDB 521625 Metadata only | Operational Description | PDF 57.7 KB | |
| KDB 801699 Metadata only | Operational Description | PDF 80.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 122.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 144.3 KB | |
| Operational Description Metadata only | Operational Description | PDF 943.8 KB | |
| Operational Description BLE Metadata only | Operational Description | PDF 109.7 KB | |
| SW Security Description Metadata only | Operational Description | PDF 76.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 17.8 KB | |
| Tune-Up Procedure Metadata only | Parts List/Tune Up Info | PDF 128.8 KB |
Application Information
| Application ID | kSY0ETAfl0owOGhzzNgc+w== |
|---|---|
| Final Action Date | 2015-10-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0016179699 |
| Model | RM-1116 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Responsible Party | Hasnain Syed, Director, EMC, SI and RF Compliance, hasnain.syed@microsoft.com , 1-425-707-1039 |
| Agent | Tero Tero Tero, Microsoft Mobile Oy, fccicreg@microsoft.com , 011358718008000 |
| Non-Technical Contact | Tero Lehtinen, Microsoft Mobile Oy, fccicreg@microsoft.com , 011358718008000 |
| Test Firm | Kalle Hannila, TCC Microsoft Salo, kalle.t.hannila@microsoft.com , 358718008000 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.01 W/kg; Body-worn 0.19 W/kg; Product Specific (Wireless Router): 0.47 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains Bluetooth, NFC and GSM/WCDMA/LTE transmitters. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| kSY0ETAfl0owOGhzzNgc+w== | 2015-10-27 | Original Equipment |
| Y0YlY6ITEZSqxxI3EMaUpA== | 2015-10-27 | Original Equipment |
| ViHTA4x4bBbmA/VdtQ9Xww== | 2015-10-27 | Original Equipment |
| QLSUqOdw4SVzAAFqOBn5Jw== | 2015-10-27 | Original Equipment |
| MjwsyTnA8hAWeG7svEyYTQ== | 2015-10-27 | Original Equipment |
| 2I+Ypx1TwmChbDk098X2zA== | 2015-10-27 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 15B | 16, CC | ||||
| 13.56 MHz | 15C | CC | |||
| 704-711 MHz | 0.081 | 0.1ppm | 8M97G7W | 27 | BC, HC |
| 704-711 MHz | 0.08 | 0.1ppm | 8M97D7W | 27 | BC, HC |
| 709-711 MHz | 0.093 | 0.1ppm | 8M97G7W | 27 | BC, HC |
| 709-711 MHz | 0.088 | 0.1ppm | 8M97D7W | 27 | BC, HC |
| 825.5-847.5 MHz | 0.102 | 0.1ppm | 2M70G7W | 22H | BC, HC |
| 826.4-846.6 MHz | 0.083 | 0.1ppm | 4M14F9W | 22H | BC, HC |
| 829-844 MHz | 0.083 | 0.1ppm | 8M97G7W | 22H | BC, HC |
| 829-844 MHz | 0.098 | 0.1ppm | 8M97D7W | 22H | BC, HC |
| 1712.4-1752.6 MHz | 0.23 | 0.1ppm | 4M16F9W | 27 | BC, HC |
| 1712.5-1752.5 MHz | 0.285 | 0.1ppm | 4M48D7W | 27 | BC, HC |
| 1720-1745 MHz | 0.279 | 0.1ppm | 17M9G7W | 27 | BC, HC |
| 1720-1745 MHz | 0.272 | 0.1ppm | 18M0D7W | 27 | BC, HC |
| 1850.2-1909.8 MHz | 0.245 | 0.1ppm | 247KGXW | 24E | BC, HC |
| 1850.2-1909.8 MHz | 0.269 | 0.1ppm | 246KG7W | 24E | BC, HX |
| 1851.5-1908.5 MHz | 0.197 | 0.1ppm | 2M70D7W | 24E | BC, HC |
| 1852.4-1907.6 MHz | 0.181 | 0.1ppm | 4M16F9W | 24E | BC, HC |
| 1860-1900 MHz | 0.191 | 0.1ppm | 18M0G7W | 24E | BC, HC |
| 1860-1900 MHz | 0.187 | 0.1ppm | 18M0D7W | 24E | BC, HC |
| 2402-2480 MHz | 0.0080000 | 15C | CC | ||
| 2402-2480 MHz | 0.001 | 15C | CC | ||
| 2412-2462 MHz | 0.662 | 15C | CC, HX | ||
| 2505-2565 MHz | 0.378 | 0.1ppm | 8M97G7W | 27 | BC, HC |
| 2505-2565 MHz | 0.377 | 0.1ppm | 8M97D7W | 27 | BC, HC |
| 2510-2560 MHz | 0.368 | 0.1ppm | 17M9G7W | 27 | BC, HC |
| 2510-2560 MHz | 0.352 | 0.1ppm | 18M0D7W | 27 | BC, HC |
| 5180-5240 MHz | 0.0773 | 15E | 38, CC, HX | ||
| 5260-5320 MHz | 0.0787 | 15E | 38, CC, HX | ||
| 5500-5700 MHz | 0.0895 | 15E | 38, CC, HX | ||
| 5745-5825 MHz | 0.188 | 15E | 38, CC, HX |
Grants
TCB Grant - Application Y0YlY6ITEZSqxxI3EMaUpA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 16 CC | 15B | - |
| This device contains WLAN, Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters. |
| 16: | If the subject device requires shielded interface cables to ensure compliance, the user's manual must advise the user of this requirement. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application Y0YlY6ITEZSqxxI3EMaUpA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Class B Computing Device Peripheral |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 16 CC | 15B | - |
| This device contains WLAN, Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters. |
| 16: | If the subject device requires shielded interface cables to ensure compliance, the user's manual must advise the user of this requirement. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.489 | 0.1 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.379 | 0.1 PM | 240KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.083 | 0.1 PM | 4M14F9W |
| BC HC | 22H | 825.5 - 847.5 | 0.102 | 0.1 PM | 2M70G7W |
| BC HC | 22H | 829.0 - 844.0 | 0.083 | 0.1 PM | 8M97G7W |
| BC HC | 22H | 829.0 - 844.0 | 0.098 | 0.1 PM | 8M97D7W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.245 | 0.1 PM | 247KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.269 | 0.1 PM | 246KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.181 | 0.1 PM | 4M16F9W |
| BC HC | 24E | 1860.0 - 1900.0 | 0.191 | 0.1 PM | 18M0G7W |
| BC HC | 24E | 1851.5 - 1908.5 | 0.197 | 0.1 PM | 2M70D7W |
| BC HC | 24E | 1860.0 - 1900.0 | 0.187 | 0.1 PM | 18M0D7W |
| BC HC | 27 | 704.0 - 711.0 | 0.081 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 704.0 - 711.0 | 0.08 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 709.0 - 711.0 | 0.093 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 709.0 - 711.0 | 0.088 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.23 | 0.1 PM | 4M16F9W |
| BC HC | 27 | 1720.0 - 1745.0 | 0.279 | 0.1 PM | 17M9G7W |
| BC HC | 27 | 1712.5 - 1752.5 | 0.285 | 0.1 PM | 4M48D7W |
| BC HC | 27 | 1720.0 - 1745.0 | 0.272 | 0.1 PM | 18M0D7W |
| BC HC | 27 | 2505.0 - 2565.0 | 0.378 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 2510.0 - 2560.0 | 0.368 | 0.1 PM | 17M9G7W |
| BC HC | 27 | 2505.0 - 2565.0 | 0.377 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 2510.0 - 2560.0 | 0.352 | 0.1 PM | 18M0D7W |
| Power output is ERP for Parts 22 and 27 (MBS) and EIRP for Parts 24 and 27 (AWS, BRS). Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.47 W/kg; Body-worn 0.43 W/kg; Product Specific (Wireless Router): 1.07 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains Bluetooth, BLE, WLAN and NFC transmitters. This device has 5 MHz and 10 MHz bandwidth modes for LTE Band 17; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Band 7. HAC Rating M4T4-2011. Some T-Coil tests have not been performed as permitted by the Commission policy. Support for Rel.10 LTE is limited to network enhancement features. Carrier aggregation is not implemented. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application ViHTA4x4bBbmA/VdtQ9Xww==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | PCS Licensed Transmitter held to ear |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BC HC | 22H | 824.2 - 848.8 | 0.489 | 0.1 PM | 244KGXW |
| BC HX | 22H | 824.2 - 848.8 | 0.379 | 0.1 PM | 240KG7W |
| BC HC | 22H | 826.4 - 846.6 | 0.083 | 0.1 PM | 4M14F9W |
| BC HC | 22H | 825.5 - 847.5 | 0.102 | 0.1 PM | 2M70G7W |
| BC HC | 22H | 829.0 - 844.0 | 0.083 | 0.1 PM | 8M97G7W |
| BC HC | 22H | 829.0 - 844.0 | 0.098 | 0.1 PM | 8M97D7W |
| BC HC | 24E | 1850.2 - 1909.8 | 0.245 | 0.1 PM | 247KGXW |
| BC HX | 24E | 1850.2 - 1909.8 | 0.269 | 0.1 PM | 246KG7W |
| BC HC | 24E | 1852.4 - 1907.6 | 0.181 | 0.1 PM | 4M16F9W |
| BC HC | 24E | 1860.0 - 1900.0 | 0.191 | 0.1 PM | 18M0G7W |
| BC HC | 24E | 1851.5 - 1908.5 | 0.197 | 0.1 PM | 2M70D7W |
| BC HC | 24E | 1860.0 - 1900.0 | 0.187 | 0.1 PM | 18M0D7W |
| BC HC | 27 | 704.0 - 711.0 | 0.081 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 704.0 - 711.0 | 0.08 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 709.0 - 711.0 | 0.093 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 709.0 - 711.0 | 0.088 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 1712.4 - 1752.6 | 0.23 | 0.1 PM | 4M16F9W |
| BC HC | 27 | 1720.0 - 1745.0 | 0.279 | 0.1 PM | 17M9G7W |
| BC HC | 27 | 1712.5 - 1752.5 | 0.285 | 0.1 PM | 4M48D7W |
| BC HC | 27 | 1720.0 - 1745.0 | 0.272 | 0.1 PM | 18M0D7W |
| BC HC | 27 | 2505.0 - 2565.0 | 0.378 | 0.1 PM | 8M97G7W |
| BC HC | 27 | 2510.0 - 2560.0 | 0.368 | 0.1 PM | 17M9G7W |
| BC HC | 27 | 2505.0 - 2565.0 | 0.377 | 0.1 PM | 8M97D7W |
| BC HC | 27 | 2510.0 - 2560.0 | 0.352 | 0.1 PM | 18M0D7W |
| Power output is ERP for Parts 22 and 27 (MBS) and EIRP for Parts 24 and 27 (AWS, BRS). Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 0.47 W/kg; Body-worn 0.43 W/kg; Product Specific (Wireless Router): 1.07 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains GSM/WCDMA/LTE functions that are not operational in U.S. Territories. This filing is only applicable for 700 MHz MBS, 850 MHz Cell, 1700 MHz AWS, 1900 MHz PCS and 2500 MHz BRS operations. This device contains Bluetooth, BLE, WLAN and NFC transmitters. This device has 5 MHz and 10 MHz bandwidth modes for LTE Band 17; 1.4 MHz, 3 MHz, 5 MHz and 10 MHz bandwidth modes for LTE Bands 5 and 12; 1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Bands 2 and 4; and 5 MHz, 10 MHz, 15 MHz and 20 MHz bandwidth modes for LTE Band 7. HAC Rating M4T4-2011. Some T-Coil tests have not been performed as permitted by the Commission policy. Support for Rel.10 LTE is limited to network enhancement features. Carrier aggregation is not implemented. |
| BC: | The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. |
| HC: | This equipment complies with the hearing aid compatibility technical requirements of Section 20.19 of the rules. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.008 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains WLAN, BLE, NFC and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application QLSUqOdw4SVzAAFqOBn5Jw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 2402.0 - 2480.0 | 0.008 |
| Power output listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device contains WLAN, BLE, NFC and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 13.56 - 13.56 |
| This device contains WLAN, Bluetooth, BLE and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
EAS Grant - Application MjwsyTnA8hAWeG7svEyYTQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Part 15 Low Power Communication Device Transmitter |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC | 15C | 13.56 - 13.56 |
| This device contains WLAN, Bluetooth, BLE and GSM/WCDMA/LTE transmitters. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2462.0 | 0.662 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.001 |
| Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.01 W/kg; Body-worn 0.19 W/kg; Product Specific (Wireless Router): 0.47 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains Bluetooth, NFC and GSM/WCDMA/LTE transmitters. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application kSY0ETAfl0owOGhzzNgc+w==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Digital Transmission System |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC HX | 15C | 2412.0 - 2462.0 | 0.662 | ||
| CC | 15C | 2402.0 - 2480.0 | 0.001 |
| Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.01 W/kg; Body-worn 0.19 W/kg; Product Specific (Wireless Router): 0.47 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains Bluetooth, NFC and GSM/WCDMA/LTE transmitters. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
ACB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Microsoft Corporation |
| 1 Microsoft Way |
| Redmond, WA 98052 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX | 15E | 5180.0 - 5240.0 | 0.0773 | ||
| 38 CC HX | 15E | 5260.0 - 5320.0 | 0.0787 | ||
| 38 CC HX | 15E | 5500.0 - 5700.0 | 0.0895 | ||
| 38 CC HX | 15E | 5745.0 - 5825.0 | 0.188 |
| Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.05 W/kg; Body-worn 0.33 W/kg; Product Specific (Wireless Router): 0.87 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
EAS Grant - Application 2I+Ypx1TwmChbDk098X2zA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Microsoft Corporation 1 Microsoft Way Redmond, WA 98052 United States |
Date of Grant: 10/27/2015 Application Dated: 10/15/2015 |
| Attention: Hasnain Syed , Director, EMC, SI and RF Compliance |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | PYARM-1116 |
| Name of Grantee: | Microsoft Corporation |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | GSM/WCDMA/LTE cellular device w/BT, BLE, WLAN and NFC |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC HX | 15E | 5180.0 - 5240.0 | 0.0773 | ||
| 38 CC HX | 15E | 5260.0 - 5320.0 | 0.0787 | ||
| 38 CC HX | 15E | 5500.0 - 5700.0 | 0.0895 | ||
| 38 CC HX | 15E | 5745.0 - 5825.0 | 0.188 |
| Power output is conducted. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and which provide at least 1.5 cm separation between the device and the users body. End users must be informed of the body worn requirements for satisfying RF Exposure compliance. The highest reported SAR values are: Head: 1.05 W/kg; Body-worn 0.33 W/kg; Product Specific (Wireless Router): 0.87 W/kg; Simultaneous Transmission: 1.44 W/kg. This device contains Bluetooth, BLE, NFC and GSM/WCDMA/LTE transmitters. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| HX: | This mode of operation has the means to permit held to the ear telephone calls but has not been tested for hearing aid compatibility. The device supports other modes which have been found to be compliant with the HAC rules. |
| Mail To: |
