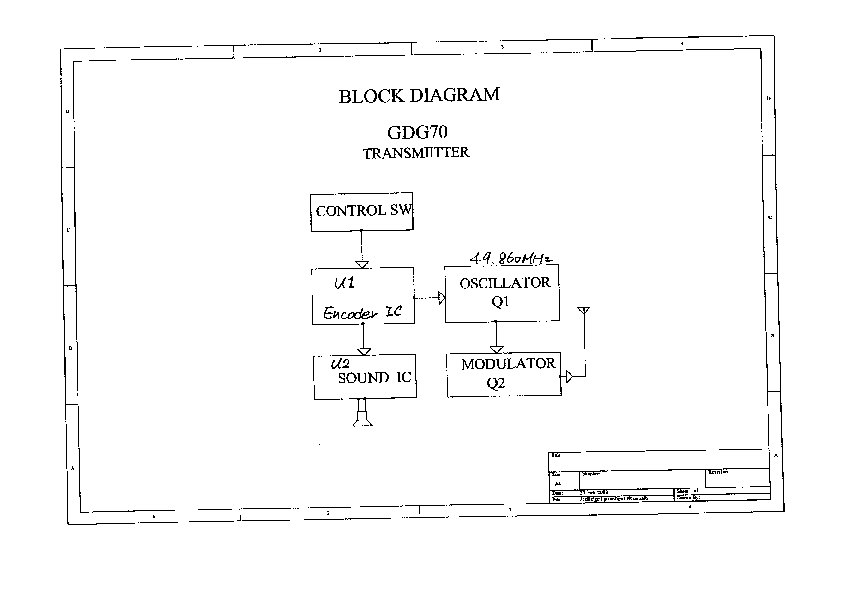

GDG700491700 RC Car Block Diagram - FCC ID Q26GDG700-49-1700

FCC ID Q26GDG700-49-1700

Block Diagram

RC Car

by GDG Toys Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDQ26GDG700-49-1700
Document ID326394
Document TypeBlock Diagram
DescriptionBlock Diagram
ApplicantGDG Toys Co., Ltd.
Equipment ClassRC Car
Product CodeGDG700491700
Application IDr3dDcREJdg96IJc+RVoAnw==
Application PurposeOriginal Equipment
Application Date2003-05-19
Frequency Range49.86 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilbur Ng Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2003-05-19
Available2003-05-19
Created2003-05-16
Modified2003-05-16
Pages1
File TypeAdobe Acrobat PDF
File Size17077
File SHA-256f7464f7ac3b5d061e6009f9c4d3ffbfdaf8e1ba2040d773d4dfef89082f1a95b
PDF Metadata AuthorITS ELECTRIC TOY
PDF Metadata ProducerHP 9100C Digital Sender
FCC.gov SourcesFCC.gov 326394
