Page 1 of 48

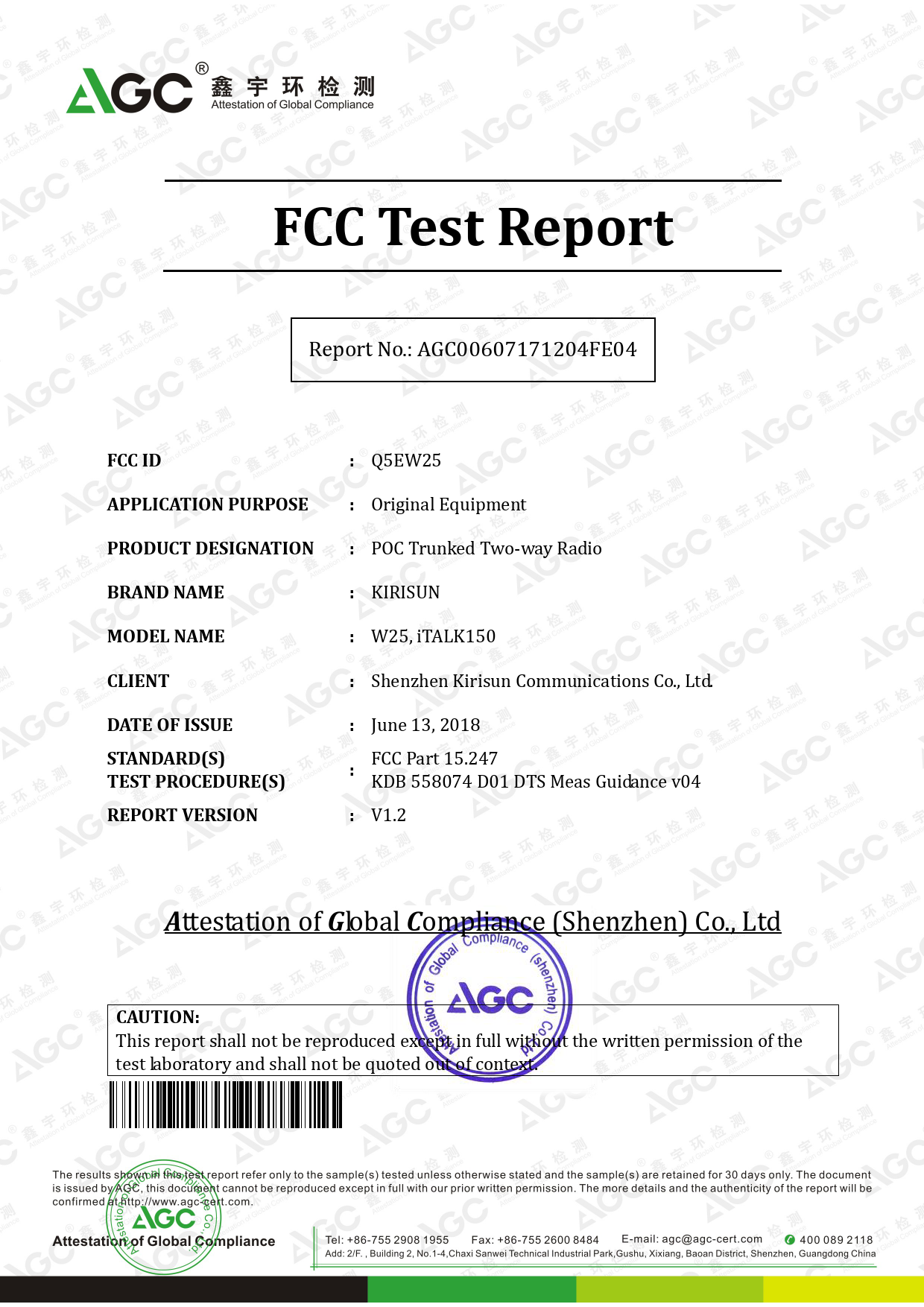

FCC Test Report
Report No.: AGC00607171204FE04
FCC ID
: Q5EW25
APPLICATION PURPOSE
: Original Equipment
PRODUCT DESIGNATION
: POC Trunked Two-way Radio
BRAND NAME
: KIRISUN
MODEL NAME
: W25, iTALK150
CLIENT
: Shenzhen Kirisun Communications Co., Ltd.
DATE OF ISSUE
: June 13, 2018
STANDARD(S)
TEST PROCEDURE(S)
REPORT VERSION
: V1.2
FCC Part 15.247
KDB 558074 D01 DTS Meas Guidance v04
Attestation of Global Compliance (Shenzhen) Co., Ltd
CAUTION:
This report shall not be reproduced except in full without the written permission of the
test laboratory and shall not be quoted out of context.
Report No.: AGC00607171204FE04
Page 2 of 48
Report Revise Record
Report Version
Revise Time
Issued Date
Valid Version
Notes
V1.0
Mar. 27, 2018
Invalid
Original Report
V1.1
1st
May. 14, 2018
Invalid
Revise Report P37 P39 P48
V1.2
2nd
June 13, 2018
Valid
Revise Report P47
Report No.: AGC00607171204FE04
Page 3 of 48
TABLE OF CONTENTS
1. VERIFICATION OF CONFORMITY.................................................................................................................. 5
2. GENERAL INFORMATION .............................................................................................................................. 5
2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6
2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6
2.3. IEEE 802.11N MODULATION SCHEME .................................................................................................... 7
2.4. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 7
2.5. TEST METHODOLOGY ............................................................................................................................. 8
2.6. SPECIAL ACCESSORIES ......................................................................................................................... 8
2.7. EQUIPMENT MODIFICATIONS................................................................................................................. 8
3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9
4. DESCRIPTION OF TEST MODES ................................................................................................................. 10
5. SYSTEM TEST CONFIGURATION ................................................................................................................ 11
5.1. CONFIGURATION OF EUT SYSTEM...................................................................................................... 11
5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 11
5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 11
6. TEST FACILITY .............................................................................................................................................. 12
7. OUTPUT POWER ........................................................................................................................................... 13
7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13
7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13
7.3. LIMITS AND MEASUREMENT RESULT.................................................................................................. 14
8. 6DB BANDWIDTH .......................................................................................................................................... 16
8.1. MEASUREMENT PROCEDURE ............................................................................................................. 16
8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16
8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 17
9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 20
9.1. MEASUREMENT PROCEDURE ............................................................................................................. 20
9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20
9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 20
9.4. LIMITS AND MEASUREMENT RESULT.................................................................................................. 21
10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 28
10.1 MEASUREMENT PROCEDURE ............................................................................................................ 28
10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 28
10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 28
10.4 LIMITS AND MEASUREMENT RESULT................................................................................................. 29
11. RADIATED EMISSION ................................................................................................................................. 32
Report No.: AGC00607171204FE04
Page 4 of 48
11.1. MEASUREMENT PROCEDURE............................................................................................................ 32
11.2. TEST SETUP .......................................................................................................................................... 33
11.3. LIMITS AND MEASUREMENT RESULT ................................................................................................ 34
11.4. TEST RESULT ........................................................................................................................................ 35
12. BAND EDGE EMISSION .............................................................................................................................. 38
12.1. MEASUREMENT PROCEDURE ........................................................................................................... 38
12.2. TEST SET-UP ........................................................................................................................................ 38
12.3. RADIATED TEST RESULT..................................................................................................................... 39
12.4. CONDUCTED TEST RESULT ............................................................................................................... 40
13. FCC LINE CONDUCTED EMISSION TEST ................................................................................................ 41
13.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................................ 42
13.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST .............................................................. 42
13.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................... 43
13.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST .......................................................... 44
13.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST .................................................................... 45
APPENDIX A: PHOTOGRAPHS OF TEST SETUP .......................................................................................... 47
Report No.: AGC00607171204FE04
Page 5 of 48
1. VERIFICATION OF CONFORMITY
Applicant
Shenzhen Kirisun Communications Co., Ltd.
Address
3rd Floor, Building A, Tongfang Information Harbour, No.11 Langshan Road,
Nanshan District, Shenzhen 518057, P.R.China
Manufacturer
Shenzhen Kirisun Communications Co., Ltd.
Address
3rd Floor, Building A, Tongfang Information Harbour, No.11 Langshan Road,
Nanshan District, Shenzhen 518057, P.R.China
Product Designation
POC Trunked Two-way Radio
Brand Name
KIRISUN
Test Model
W25
Serial Model
iTALK150
Difference description
All the same except for the model name.
Date of test
Mar. 01, 2018~ Mar. 27, 2018
Deviation
None
Condition of Test Sample
Normal
Report Template
AGCRT-US-BGN/RF
We hereby certify that:
The above equipment was tested by Attestation of Global Compliance(Shenzhen) Co., Ltd. The test data, data
evaluation, test procedures, and equipment configurations shown in this report were made in accordance with
the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described
in this report is in compliance with requirement of FCC Part 15 Rules requirement.
The test results of this report relate only to the tested sample identified in this report.
Tested By
Nice Xie(Xie xiaosong)
Mar. 27, 2018
Bart Xie(Xie Xiaobin)
June 08, 2018
Forrest Lei(Lei Yonggang)
Authorized Officer
June 08, 2018
Reviewed By
Approved By
Report No.: AGC00607171204FE04
Page 6 of 48
2. GENERAL INFORMATION
2.1. PRODUCT DESCRIPTION
The EUT is designed as “POC Trunked Two-way Radio”. It is designed by way of utilizing the DSSS and
OFDM technology to achieve the system operation.
A major technical description of EUT is described as following
Operation Frequency
2.412 GHz~2.462GHz
Output Power
IEEE 802.11b:17.36dBm, IEEE 802.11g:14.49dBm;
IEEE 802.11n(20):14.17dBm,IEEE 802.11n(40):12.44dBm
Modulation
DSSS(DBPSK/DQPSK/CCK);OFDM(BPSK/QPSK/16-QAM/64-QAM)
Number of channels
11 Channels (IEEE802.11(20)b/g/n)& 9 Channels (IEEE802.11(40)n)
Hardware Version
V1.0
Software Version
V1.0
Antenna Designation
PIFA Antenna
Antenna Gain
1.16dBi
Power Supply
DC3.7V by Built-in Li-ion Battery
2.2. TABLE OF CARRIER FREQUENCYS
Frequency Band
2400~2483.5MHZ
Channel Number
Frequency
2412 MHZ
2417 MHZ
2422 MHZ
2427 MHZ
2432 MHZ
2437 MHZ
2442 MHZ
2447 MHZ
2452 MHZ
10
2457 MHZ
11
2462 MHZ
Note: For 20MHZ bandwidth system use Channel 1 to Channel 11
For 802.11n 40MHZ bandwidth system use Channel 3 to Channel 9.
Report No.: AGC00607171204FE04
Page 7 of 48
2.3. IEEE 802.11N MODULATION SCHEME
MCS
Index
Nss
Modulation
NCBPS
NBPSC
Data
rate(Mbps)
NDBPS
800nsGI
20MHz
40MHz
20MHz
40MHz
20MHz
40MHz
BPSK
1/2
52
108
26
54
6.5
13.5
QPSK
1/2
104
216
52
108
13.0
27.0
QPSK
3/4
104
216
78
162
19.5
40.5
16-QAM
1/2
208
432
104
216
26.0
54.0
16-QAM
3/4
208
432
156
324
39.0
81.0
64-QAM
2/3
312
648
208
432
52.0
108.0
64-QAM
3/4
312
648
234
489
58.5
121.5
64-QAM
5/6
312
648
260
540
65.0
135.0
Symbol
Explanation
NSS
Number of spatial streams
Code rate
NBPSC
Number of coded bits per single carrier
NCBPS
Number of coded bits per symbol
NDBPS
Number of data bits per symbol
GI
Guard interval
2.4. RELATED SUBMITTAL(S) / GRANT (S)
This submittal(s) (test report) is intended for FCC ID: Q5EW25 filing to comply with the FCC Part 15
requirements.
Report No.: AGC00607171204FE04
Page 8 of 48
2.5. TEST METHODOLOGY
Both conducted and radiated testing was performed according to the procedures in ANSI C63.10 (2013).
Radiated testing was performed at an antenna to EUT distance 3 meters.
Others testing (listed at item 5.3) was performed according to the procedures in FCC Part 15.247 rules KDB
558074 D01 DTS Means Guidance v04.
2.6. SPECIAL ACCESSORIES
Refer to section 5.2.
2.7. EQUIPMENT MODIFICATIONS
Not available for this EUT intended for grant.
Report No.: AGC00607171204FE04
Page 9 of 48
3. MEASUREMENT UNCERTAINTY
-Uncertainty of Conducted Emission, Uc=±3.2dB
- Uncertainty of Radiated Emission below 1GHz, Uc±3.9dB
- Uncertainty of Radiated Emission above 1GHz, Uc±4.8dB
Report No.: AGC00607171204FE04
Page 10 of 48
4. DESCRIPTION OF TEST MODES
NO.
TEST MODE DESCRIPTION
Low channel TX
Middle channel TX
High channel TX
Normal operating
Note:
Transmit by 802.11b with Date rate (1/2/5.5/11)
Transmit by 802.11g with Date rate (6/9/12/18/24/36/48/54)
Transmit by 802.11n (20MHz) with Date rate (6.5/13/19.5/26/39/52/58.5/65)
Transmit by 802.11n (40MHz) with Date rate (13.5/27/40.5/54/81/108/121.5/135)
Note:
1. The EUT has been set to operate continuously on the lowest, middle and highest operation frequency
Individually, and the eut is operating at its maximum duty cycle>or equal 98%
2. All modes under which configure applicable have been tested and the worst mode test data recording
in the test report, if no other mode data.
3. For Radiated Emission, 3axis were chosen for testing for each applicable mode.
Report No.: AGC00607171204FE04
Page 11 of 48
5. SYSTEM TEST CONFIGURATION
5.1. CONFIGURATION OF EUT SYSTEM
Configure:
EUT
Accessory
5.2. EQUIPMENT USED IN EUT SYSTEM
Item
Equipment
Model No.
ID or Specification
Remark
POC Trunked Two-way
Radio
W25
Q5EW25
EUT
Adapter
DZ0501000EU-1A
RBC-10
DC 5.0V/1A
0.2A
Accessory
Battery
KB-W25
DC3.7V/ 4000mAh
Accessory
USB Cable
N/A
N/A
Accessory
Earphone
N/A
N/A
Accessory
Note: All the accessories have been used during the test in conduction emission test.
5.3. SUMMARY OF TEST RESULTS
FCC RULES
DESCRIPTION OF TEST
RESULT
§15.247
Output Power
Compliant
§15.247
6 dB Bandwidth
Compliant
§15.247
Conducted Spurious Emission
Compliant
§15.247
Maximum Conducted Output Power SPECTRAL Density
Compliant
§15.209
Radiated Emission
Compliant
§15.247
Band Edges
Compliant
§15.207
Line Conduction Emission
Compliant
Report No.: AGC00607171204FE04
Page 12 of 48
6. TEST FACILITY
Site
Location
Attestation of Global Compliance (Shenzhen) Co., Ltd
1-2F., Bldg.2, No.1-4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang,
Bao’an District B112-B113, Bldg.12, Baoan Bldg Materials Center, No.1 of Xixiang
Inner Ring Road, Baoan District, Shenzhen 518012
NVLAP LAB CODE
600153-0
Designation Number
CN5028
Description
Attestation of Global Compliance(Shenzhen) Co., Ltd is accredited by National
Voluntary Laboratory Accreditation program, NVLAP Code 600153-0
ALL TEST EQUIPMENT LIST
Equipment
Manufacturer
Model
S/N
Cal. Date
Cal. Due
TEST RECEIVER
R&S
ESPI
101206
Jun.20, 2017
Jun.19, 2018
LISN
R&S
ESH2-Z5
100086
Aug.21, 2017
Aug.20, 2018
TEST RECEIVER
R&S
ESCI
10096
Jun.20, 2017
Jun.19, 2018
EXA Signal Analyzer
Aglient
N9010A
MY53470504
Dec.08, 2017
Dec.07, 2018
Horn antenna
SCHWARZBECK
BBHA 9170
#768
Sep.20, 2017
Sep.19, 2018
preamplifier
Double-Ridged
Waveguide Horn
Broadband
Preamplifier
ANTENNA
ChengYi
EMC184045SE
980508
Sep.15, 2017
Sep.14, 2018
ETS LINDGREN
3117
00034609
May.18, 2017
May.17, 2019
SCHWARZBECK
BBV 9718
9718-205
Jun.20, 2017
Jun.19, 2018
SCHWARZBECK
VULB9168
D69250
Sep.28, 2017
Sep.27, 2018
Agilent
N9020A
MY52090123
Sep. 21, 2017
Sep. 20, 2018
Agilent
U2021XA
MY54110007
Sep. 21, 2017
Sep. 20, 2018
A.H
SAS-562B
Mar.01, 2018
Feb.28, 2020
SIGNAL ANALYZER
USB Wideband
Power Sensor
LOOP ANTENNA
Report No.: AGC00607171204FE04
Page 13 of 48
7. OUTPUT POWER
7.1. MEASUREMENT PROCEDURE
For max average conducted output power test:
1. Connect EUT RF output port to power probe through an RF attenuator.
2. Connect the power probe to the PC.
3. Set the EUT Work on the top, the middle and the bottom operation frequency individually.
4. Record the maximum power from the software.
Note:The EUT was tested according to KDB 558074 for compliance to FCC 47CFR 15.247 requirements.
7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)
AVERAGE POWER SETUP
EUT
Attenuator
Power Sensor
PC
Report No.: AGC00607171204FE04
Page 14 of 48
7.3. LIMITS AND MEASUREMENT RESULT
TEST ITEM
OUTPUT POWER
TEST MODE
802.11b with data rate 1
Frequency
(GHz)
Average Power
(dBm)
Applicable Limits
(dBm)
Pass or Fail
2.412
17.05
30
Pass
2.437
17.36
30
Pass
2.462
17.13
30
Pass
TEST ITEM
OUTPUT POWER
TEST MODE
802.11g with data rate 6
Frequency
(GHz)
Average Power
(dBm)
Applicable Limits
(dBm)
Pass or Fail
2.412
12.83
30
Pass
2.437
14.49
30
Pass
2.462
12.87
30
Pass
TEST ITEM
OUTPUT POWER
TEST MODE
802.11n 20 with data rate 6.5
Frequency
(GHz)
Average Power
(dBm)
Applicable Limits
(dBm)
Pass or Fail
2.412
12.93
30
Pass
2.437
14.17
30
Pass
2.462
12.86
30
Pass
Report No.: AGC00607171204FE04
Page 15 of 48
TEST ITEM
OUTPUT POWER
TEST MODE
802.11n 40 with data rate 13.5
Frequency
(GHz)
Average Power
(dBm)
Applicable Limits
(dBm)
Pass or Fail
2.422
10.44
30
Pass
2.437
12.44
30
Pass
2.452
10.24
30
Pass
Report No.: AGC00607171204FE04
Page 16 of 48
8. 6dB BANDWIDTH
8.1. MEASUREMENT PROCEDURE
1. Connect EUT RF output port to the Spectrum Analyzer through an RF attenuator
2. Set the EUT Work on the top, the middle and the bottom operation frequency individually.
3. Set SPA Centre Frequency = Operation Frequency, RBW= 100 KHz, VBW≥3×RBW.
4. Set SPA Trace 1 Max hold, then View.
Note: The EUT was tested according to KDB 558074 for compliance to FCC 47CFR 15.247 requirements.
8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)
Report No.: AGC00607171204FE04
Page 17 of 48
8.3. LIMITS AND MEASUREMENT RESULTS
Mode
11b
11g
11nHT20
11nHT40
Channel
6dB Bandwidth [MHz]
Verdict
LCH
10.03
PASS
MCH
10.03
PASS
HCH
10.03
PASS
LCH
15.44
PASS
MCH
15.33
PASS
HCH
15.67
PASS
LCH
16.39
PASS
MCH
15.65
PASS
HCH
16.89
PASS
LCH
35.17
PASS
MCH
35.17
PASS
HCH
35.36
PASS
Report No.: AGC00607171204FE04
Page 18 of 48
Test Graph
11b-LCH
11b-MCH
11b-HCH
11g-LCH
11g-MCH
11g-HCH
Report No.: AGC00607171204FE04
Page 19 of 48
11nHT20-LCH
11nHT20-MCH
11nHT20-HCH
11nHT20-LCH
11nHT40-MCH
11nHT40-HCH
Report No.: AGC00607171204FE04
Page 20 of 48
9. CONDUCTED SPURIOUS EMISSION
9.1. MEASUREMENT PROCEDURE
1. Connect EUT RF output port to the Spectrum Analyzer through an RF attenuator
2, Set the EUT Work on the top, the middle and the bottom operation frequency individually.
3. Set SPA Trace 1 Max hold, then View.
Note: The EUT was tested according to KDB 558074 for compliance to FCC 47CFR 15.247 requirements.
Owing to satisfy the requirements of the number of measurement points, we set the RBW=1MHz,
VBW>RBW, scan up through 10th harmonic, and consider the tested results as the worst case, if the
tested results conform to the requirement, we can deem that the real tested results(set the
RBW=100KHz, VBW>RBW) are conform to the requirement.
9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)
The same as described in section 8.2.
9.3. MEASUREMENT EQUIPMENT USED
The same as described in section 6.
Report No.: AGC00607171204FE04
Page 21 of 48
9.4. LIMITS AND MEASUREMENT RESULT
LIMITS AND MEASUREMENT RESULT
Measurement Result
Applicable Limits
In any 100 KHz Bandwidth Outside the
frequency band in which the spread spectrum
intentional radiator is operating, the radio frequency
power that is produce by the intentional radiator
shall be at least 20 dB below that in 100KHz
bandwidth within the band that contains the highest
level of the desired power.
In addition, radiation emissions which fall in the
restricted bands, as defined in §15.205(a), must also
comply with the radiated emission limits specified
in§15.209(a))
Test Data
Criteria
At least -20dBc than the limit
Specified on the BOTTOM
Channel
PASS
At least -20dBc than the limit
Specified on the TOP Channel
PASS
Report No.: AGC00607171204FE04
Page 22 of 48
Test Graph
11B-LCH
11B-LCH
11B-LCH
11B-MCH
11B-MCH
11B-MCH
Report No.: AGC00607171204FE04
Page 23 of 48
11B-HCH
11B-HCH
11B-HCH
11G-LCH
11G-LCH
11G-LCH
Report No.: AGC00607171204FE04
Page 24 of 48
11G-MCH
11G-MCH
11G-MCH
11G-HCH
11G-HCH
11G-HCH
Report No.: AGC00607171204FE04
Page 25 of 48
11nHT20-LCH
11nHT20-LCH
11nHT20-LCH
11nHT20-MCH
11nHT20-MCH
11nHT20-MCH
Download: W25 CB Radio Test Report EMC COMPLIANCE Shenzhen Kirisun Communications Co., Ltd.
Mirror Download [FCC.gov]W25 CB Radio Test Report EMC COMPLIANCE Shenzhen Kirisun Communications Co., Ltd.
Document ID3923006
Application ID4cOxHhZdzVvm5hLP4BlkDQ==
Document DescriptionTest Report WiFi I
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize347.66kB (4345734 bits)
Date Submitted2018-07-13 00:00:00
Date Available2018-07-13 00:00:00
Creation Date2018-06-14 14:04:30
Producing SoftwareMicrosoft® Office Word 2007
Document Lastmod2018-06-14 14:05:06
Document TitleEMC COMPLIANCE TEST REPORT
Document CreatorMicrosoft® Office Word 2007
Document Author: Simon

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : Simon
Create Date                     : 2018:06:14 14:04:30+08:00
Modify Date                     : 2018:06:14 14:05:06+08:00
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.4-c005 78.147326, 2012/08/23-13:03:03
Metadata Date                   : 2018:06:14 14:05:06+08:00
Creator Tool                    : Microsoft® Office Word 2007
Format                          : application/pdf
Title                           : EMC COMPLIANCE TEST REPORT
Creator                         : Simon
Document ID                     : uuid:a2c89134-2bf9-433c-8a8e-beb7d90ea9b9
Instance ID                     : uuid:26671acd-65db-45f7-9cd0-080e839dd76f
Producer                        : Microsoft® Office Word 2007
Page Count                      : 25
