CP1000 COLLECTION POINT TRANSMITTER Block Diagram - FCC ID Q5VCP1000
FCC ID Q5VCP1000

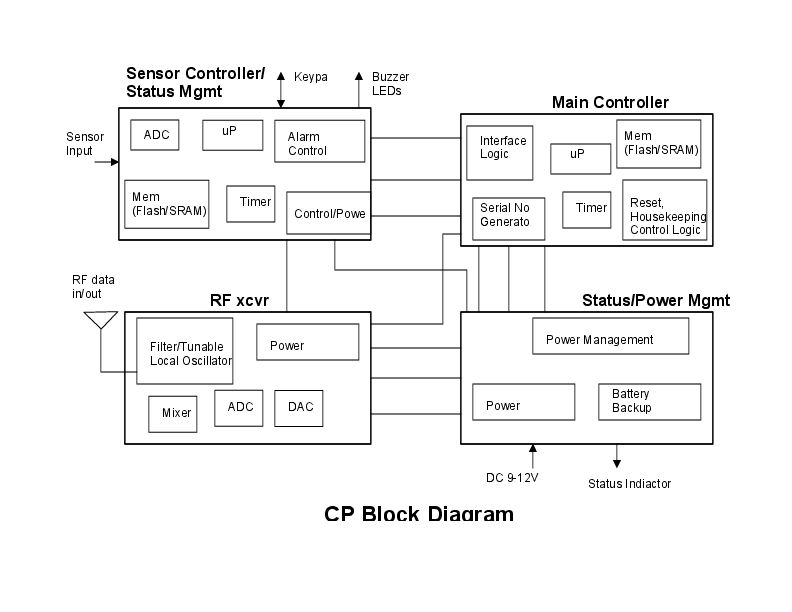

BLOCK DIAGRAM
COLLECTION POINT TRANSMITTER
Document preview loads when visible.
Document Details
| FCC ID | Q5VCP1000 |
|---|---|
| Document ID | 339654 |
| Document Type | Block Diagram |
| Description | BLOCK DIAGRAM |
| Document Title | AP Schematics (1 of 2) |
| Applicant | LifeVine, Inc. |
| Equipment Class | COLLECTION POINT TRANSMITTER |
| Product Code | CP1000 |
| Application ID | iS1l6wqFiU9oQMBJ7/e8VQ== |
| Application Purpose | Original Equipment |
| Application Date | 2003-07-14 |
| Frequency Range | 916-917 MHz |
| FRN | 0008919862 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | WILLIAM SON |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2003-07-14 |
| Available | 2003-07-14 |
| Created | 2003-03-04 |
| Modified | 2003-03-04 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 49123 |
| File SHA-256 | fa13e1ec14fbcdecbeafd9bc6f13ed3eea44fd1c0343456449334e0418798bf2 |
| PDF Metadata Author | wson |
| PDF Metadata Producer | Acrobat PDFMaker 5.0 for Word Acrobat Distiller 5.0 (Windows) |
| FCC.gov Sources | FCC.gov 339654 |
