9601 Satellite SBD Transceiver module type 9601... - FCC ID Q639601
FCC ID Q639601

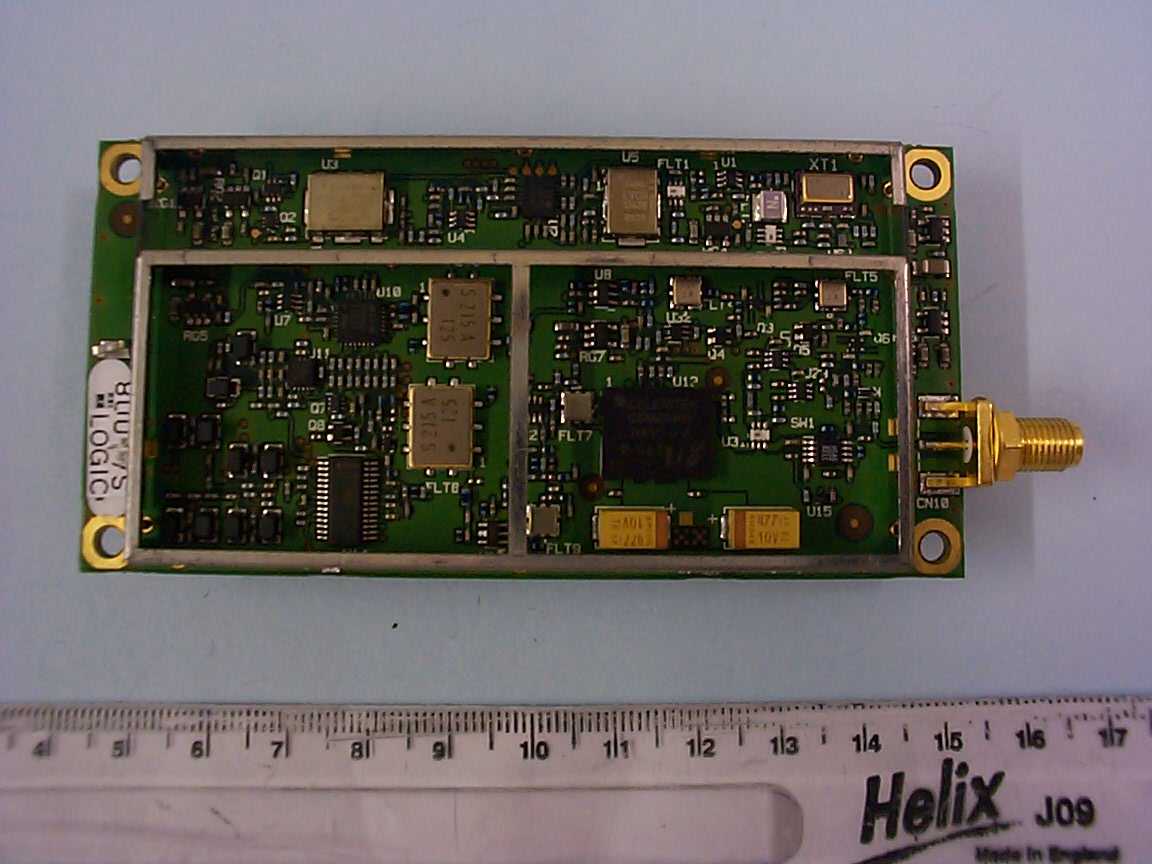

Main PCB comp side
Satellite SBD Transceiver module type 9601
Document Details
| FCC ID | Q639601 |
|---|---|
| Document ID | 601731 |
| Document Type | Internal Photos |
| Description | Main PCB comp side |
| Applicant | Iridium Satellite LLC |
| Equipment Class | Satellite SBD Transceiver module type 9601 |
| Product Code | 9601 |
| Application ID | CLelSR1g8tihqedLkXFTuA== |
| Application Purpose | Original Equipment |
| Application Date | 2005-11-11 |
| Frequency Range | 1616-1626.5 MHz |
| FRN | 0004972790 |
| Test Firm | TRL Compliance Ltd |
| Certified By | Donna Bethea Murphy VP, Regulatory Engineering |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-11-11 |
| Available | 2005-11-11 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 77391 |
| File SHA-256 | 712dcb8927e89425e5ea7ab68a2880d9d3d4df02fdb3fd24043d1c26c8fd1019 |
| FCC.gov Sources | FCC.gov 601731 |
