137ELC Receiver used for 49MHz Radio... - FCC ID Q6N137ELC

FCC ID Q6N137ELC

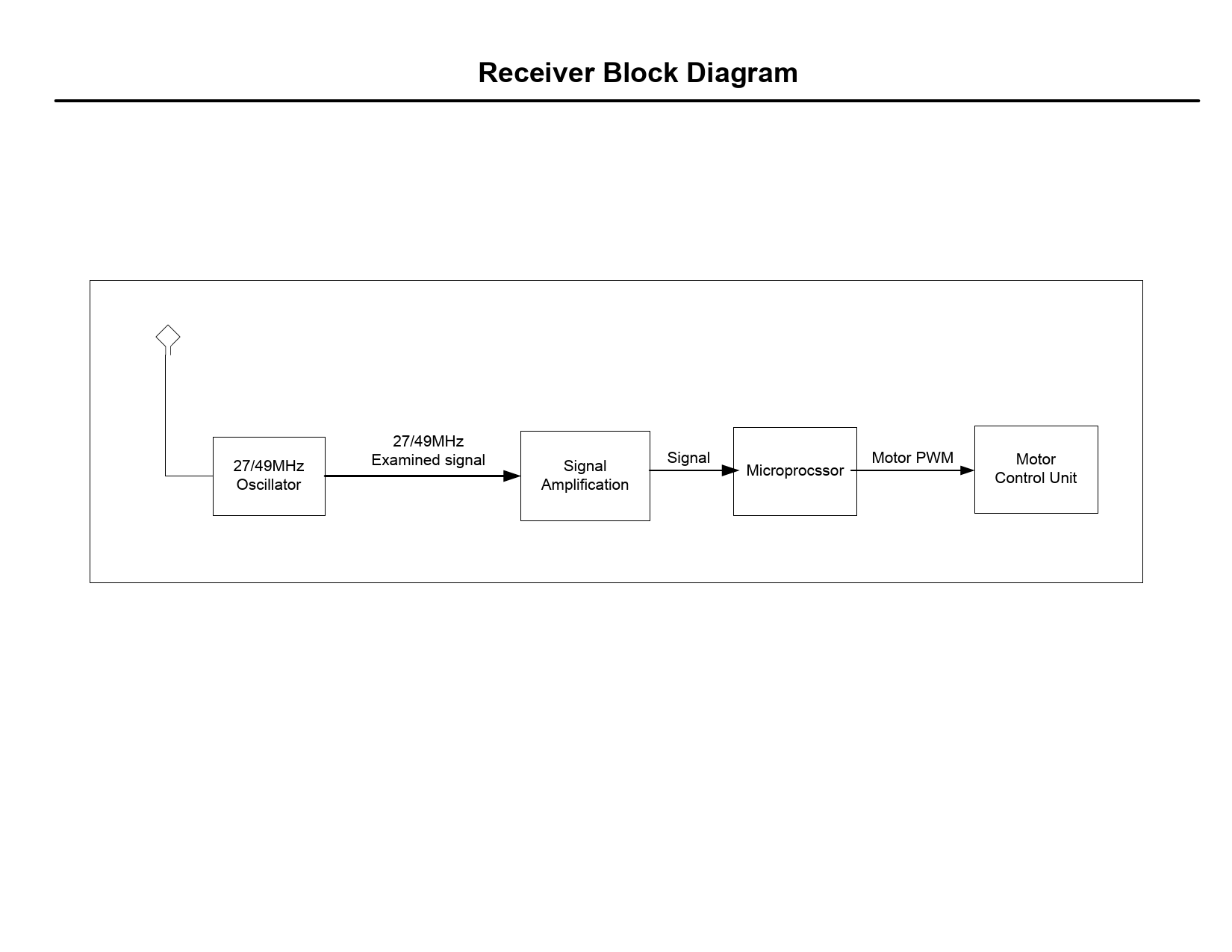

Block Diagram

Receiver used for 49MHz Radio Transmitter

by EDU Science Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDQ6N137ELC
Document ID524130
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleEL137 FCC - Rx Operation Description
ApplicantEDU Science Co., Ltd.
Equipment ClassReceiver used for 49MHz Radio Transmitter
Product Code137ELC
Application IDfRuIp12quhm1zVU96yY2dg==
Application PurposeOriginal Equipment
Application Date2005-03-17
Frequency Range49.86 MHz
FRN0016511586
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByJerry Chen Agent
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-03-17
Available2005-03-17
Created2005-03-11
Modified2005-03-14
Pages1
File TypeAdobe Acrobat PDF
File Size44360
File SHA-25654f0b75b70d2065e49c631f0b0c9616c2e33232ee691a15b628ea00eac0d2d77
PDF Metadata Authorbardeen
PDF Metadata CreatorPScript5.dll Version 5.2
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 524130
