139ELA Remote Control Toy Transmitter Schematics - FCC ID Q6N139ELA
FCC ID Q6N139ELA

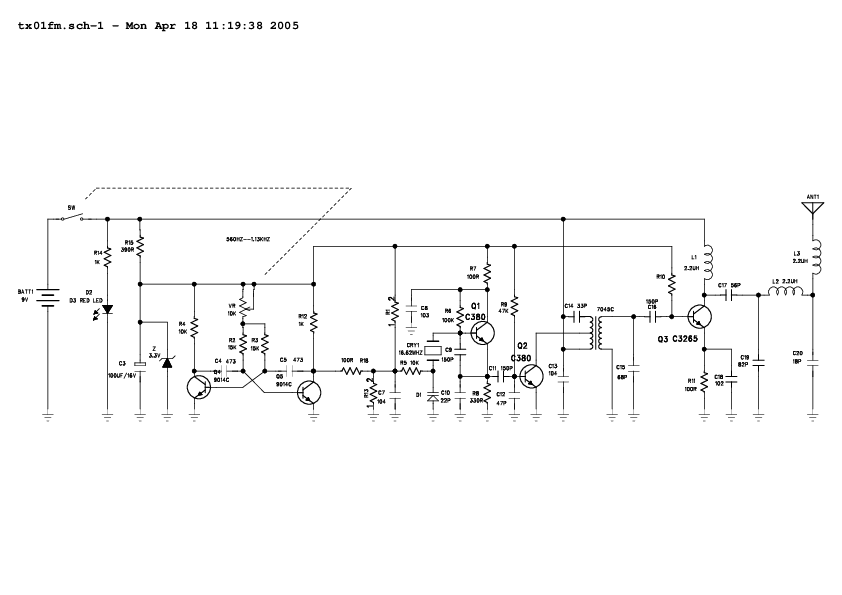

Schematics
Remote Control Toy Transmitter
Document preview loads when visible.
Document Details
| FCC ID | Q6N139ELA |
|---|---|
| Document ID | 538103 |
| Document Type | Schematics |
| Description | Schematics |
| Document Title | Powerlogic-A3 |
| Applicant | EDU Science Co., Ltd. |
| Equipment Class | Remote Control Toy Transmitter |
| Product Code | 139ELA |
| Application ID | XBBvgob4oJWY3Oay8W54pg== |
| Application Purpose | Original Equipment |
| Application Date | 2005-05-02 |
| Frequency Range | 49.86 MHz |
| FRN | 0016511586 |
| Test Firm | SGS-CSTC Standards Technical Services Co., Ltd |
| Certified By | Jerry Chen Superviser (AGENT) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-05-02 |
| Available | 2005-05-02 |
| Created | 2005-04-18 |
| Modified | 2005-04-18 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 34006 |
| File SHA-256 | be1f8c8cbe7399a71e3c61ba0fb356e1d6fef39ddc317f3ac6256264bc6d7f6a |
| PDF Metadata Author | e1217 |
| PDF Metadata Producer | H:\Share\EED\Projects\el139\sch\tx01fm.sch - PowerLogic Acrobat PDFWriter 5.0 for Windows NT |
| FCC.gov Sources | FCC.gov 538103 |
