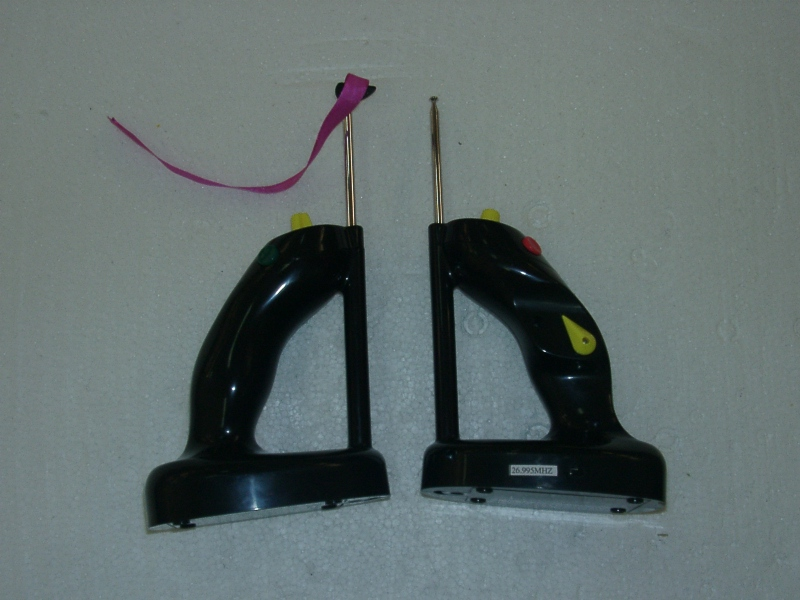

170EL 27MHz Radio Transmitter External Photos - FCC ID Q6N170EL

FCC ID Q6N170EL

external photos

27MHz Radio Transmitter

by EDU Science Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDQ6N170EL
Document ID332268
Document TypeExternal Photos
Descriptionexternal photos
ApplicantEDU Science Co., Ltd.
Equipment Class27MHz Radio Transmitter
Product Code170EL
Application ID0NA61ngAaxrSqUpi6MmMnQ==
Application PurposeOriginal Equipment
Application Date2003-06-12
Frequency Range26.96-27.28 MHz
FRN0016511586
Test FirmSGS-CSTC Standards Technical Services Co., Ltd
Certified ByBardeen Lai R & D Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-06-12
Available2003-06-12
Created2003-05-29
Modified2003-05-29
Pages2
File TypeAdobe Acrobat PDF
File Size773193
File SHA-25674494a5fe13bd1aa388591d6ad2c5b95bd03fc85207333bbaccfbfc374faff0d
PDF Metadata ProducerAcrobat 5.0 Image Conversion Plug-in for Windows Acrobat 5.0 Image Conversion Plug-in for Windows
FCC.gov SourcesFCC.gov 332268

Related FCC Exhibits

DocumentTypeAvailableFile
users manuelUsers Manual2003-06-12PDF 301 KB
internal photosInternal Photos2003-06-12PDF 557.8 KB
external photosExternal Photos2003-06-12PDF 755.1 KB
id label location infoID Label/Location Info2003-06-12PDF 21 KB
block diagramBlock Diagram2003-06-12PDF 24.5 KB
schematicsSchematics2003-06-12PDF 52.5 KB
operational descriptionOperational Description2003-06-12PDF 106.9 KB
test setup photosTest Setup Photos2003-06-12PDF 40 KB
TEST REPORTTest Report2003-06-12PDF 172.3 KB
