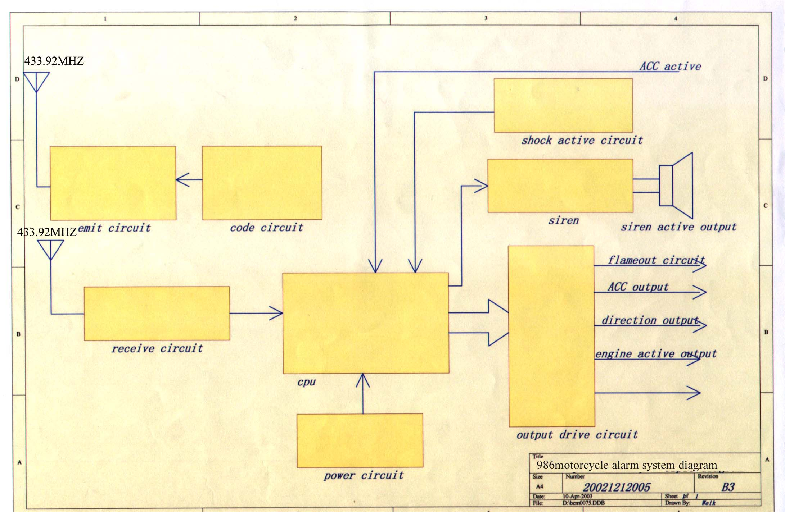

986 Motorcycle Alarm System Block Diagram - FCC ID Q6W986

FCC ID Q6W986

block diagram

Motorcycle Alarm System

by STEELMATE CO., LTD.

Document preview loads when visible.

Document Details

FCC IDQ6W986
Document ID360901
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantSTEELMATE CO., LTD.
Equipment ClassMotorcycle Alarm System
Product Code986
Application IDpNltM3uA4BdCs/S/ykIvMA==
Application PurposeOriginal Equipment
Application Date2003-09-29
Frequency Range433.92 MHz
FRN0018612671
Test FirmBay Area Compliance Laboratory
Certified ByMichael Lin Export Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-09-29
Available2003-09-29
Created2003-08-30
Modified2003-08-30
Pages1
File TypeAdobe Acrobat PDF
File Size211958
File SHA-256c4d81a038a4e48ed4f59e66a2656009f5ae3602cd8e9f9f4042df23f9bd7ff59
PDF Metadata ProducerAdobe Photoshop 6.0 Adobe Photoshop for Windows
FCC.gov SourcesFCC.gov 360901
